Antenna Motor: Testing and Inspection
INSPECTIONMOTOR ANTENNA ASSEMBLY INSPECTION
1. Remove the motor antenna assembly connector.

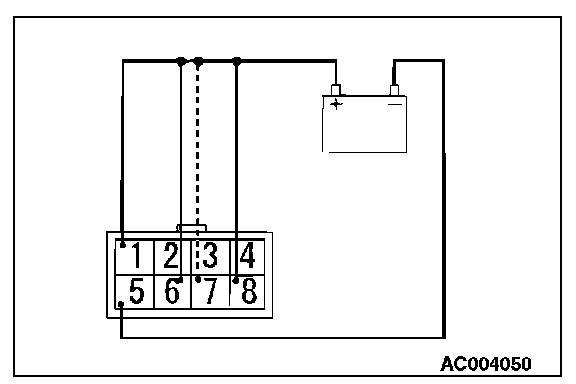

2. Connect the circuits shown in the solid lines.
3. Check that antenna extends when the circuit shown in the dotted lines is connected.
4. Check that the antenna retracts when the circuit shown in the dotted lines is disconnected.
