Traction Control System (TCL)

DIAGNOSTIC TROUBLE CODE CHART

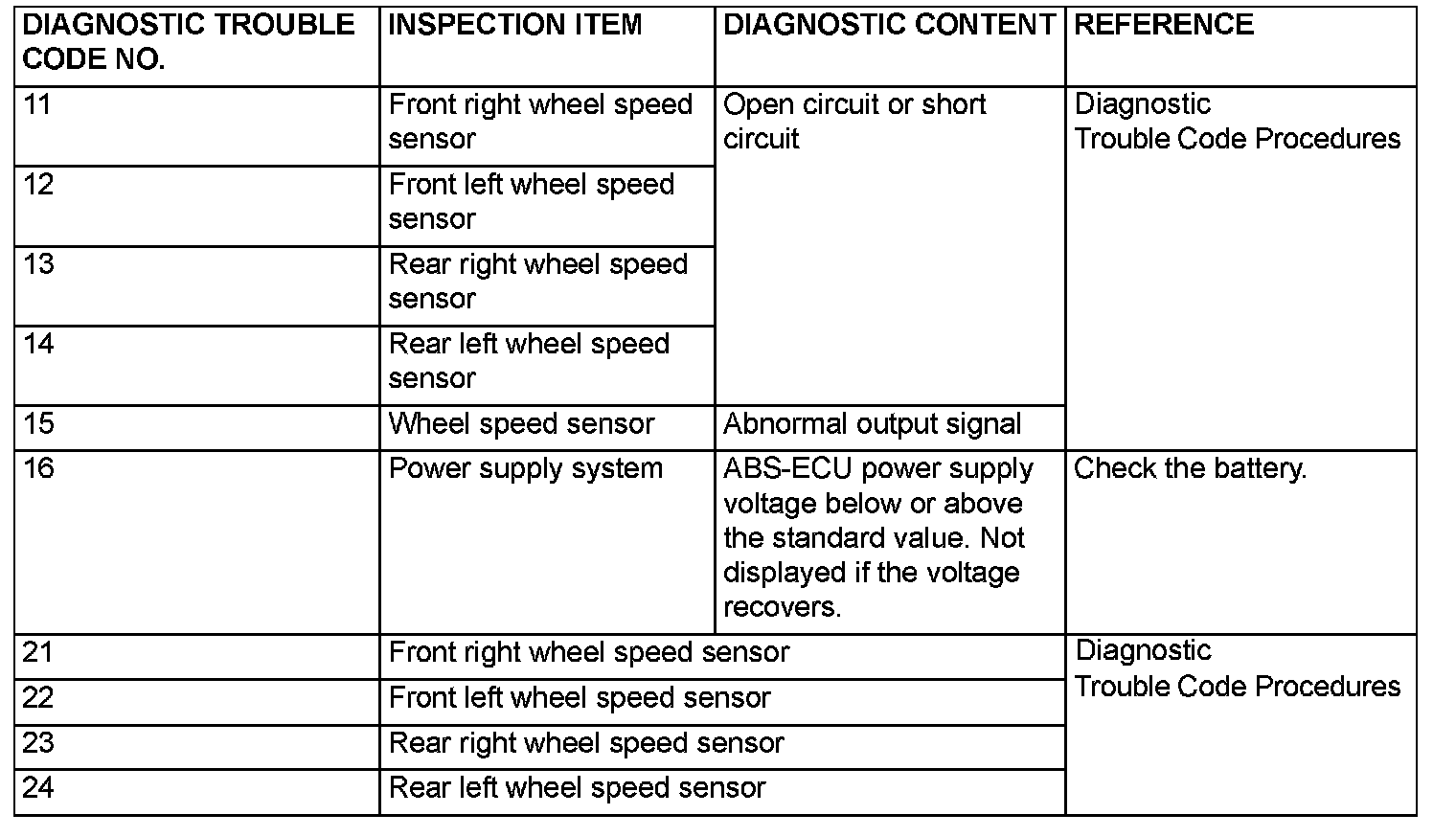

Part 1 Of 2:

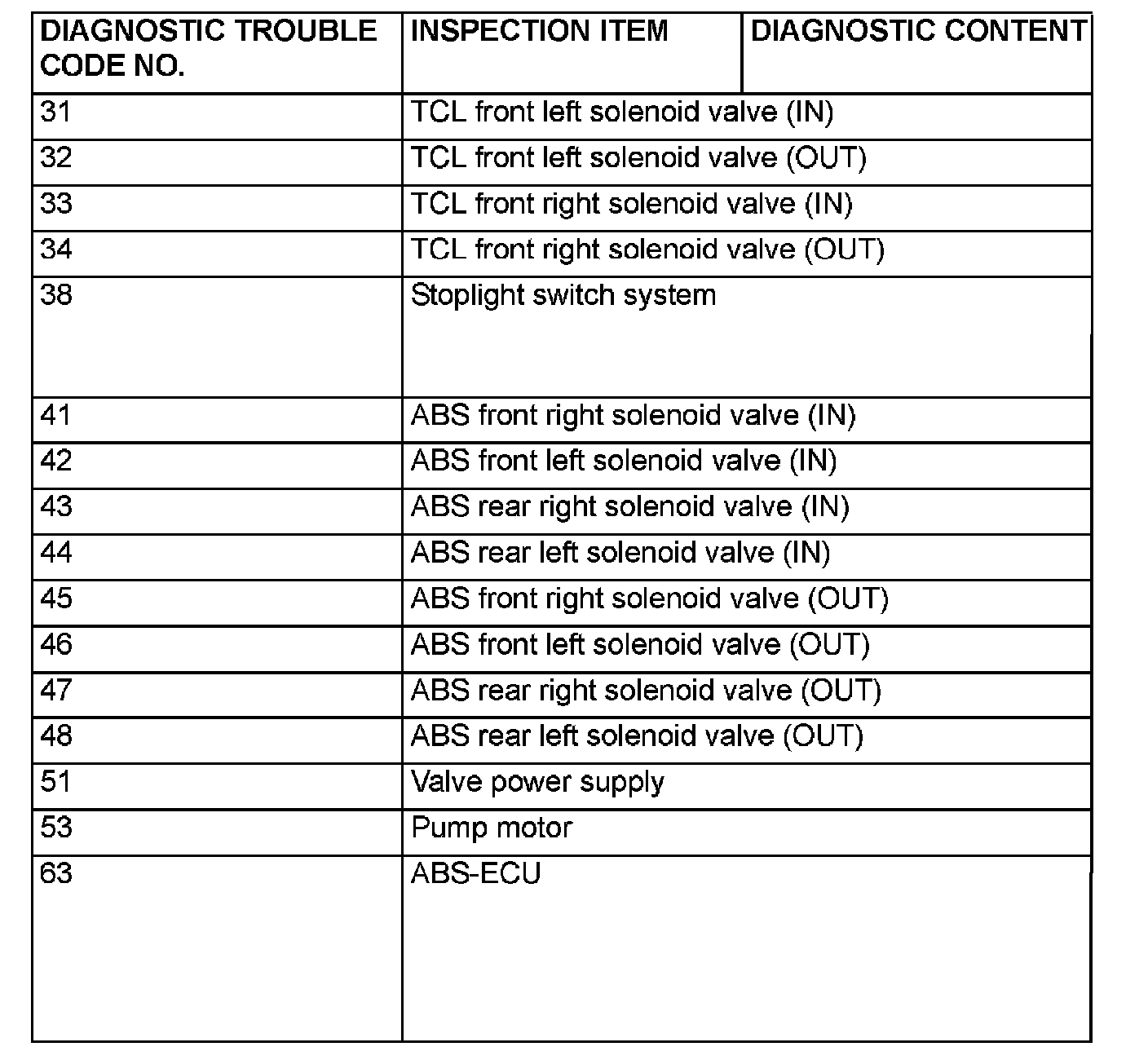

Part 2 Of 2:





Follow the inspection chart that is appropriate for the diagnostic trouble code.
