A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Anti-Lock Braking System (ABS)
Anti-Lock Braking System (ABS)

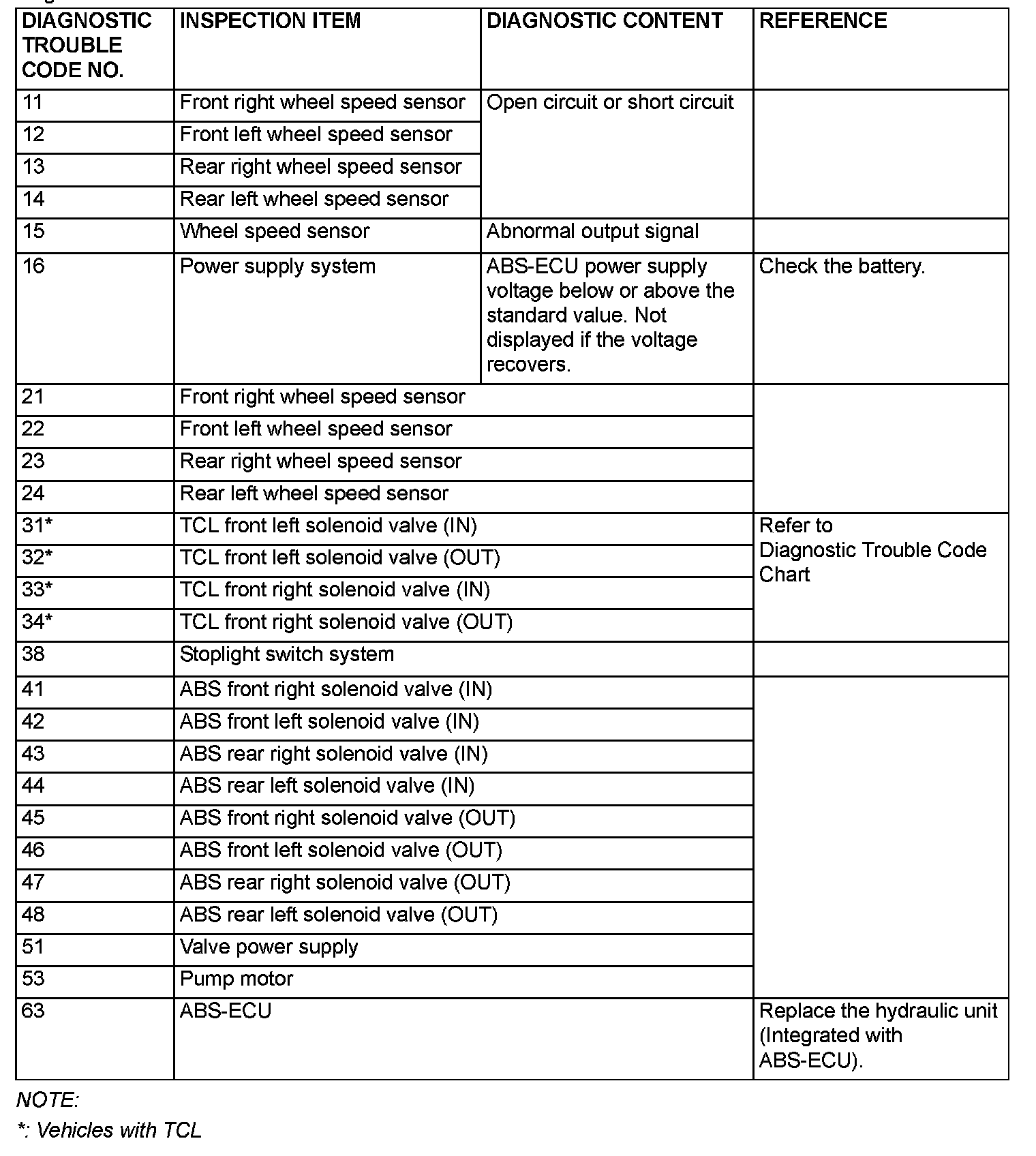

DIAGNOSTIC TROUBLE CODE CHART
Follow the inspection chart that is appropriate for the diagnostic trouble code.
