Steering: Description and Operation

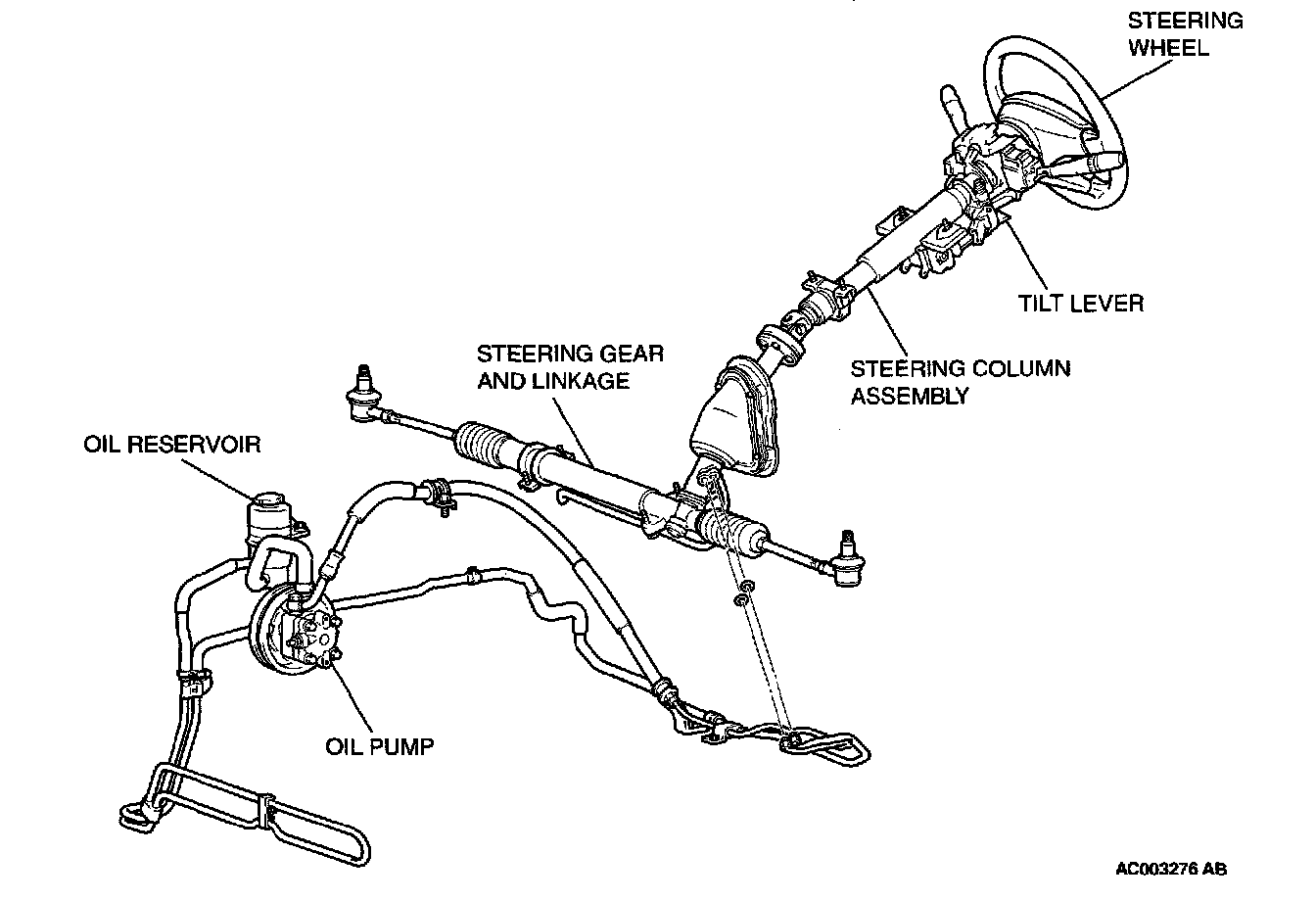

GENERAL DESCRIPTION





The vehicle uses engine speed-responsive hydraulic power steering. The steering wheel has three spokes. All vehicles are equipped with Supplemental Restraint System (SRS).

The steering column has a shock absorber mechanism and a tilt steering mechanism.

A vane-type oil pump with a fluid flow control system has been included. The steering gear and linkage is rack and pinion type.
