MFI System Part 9

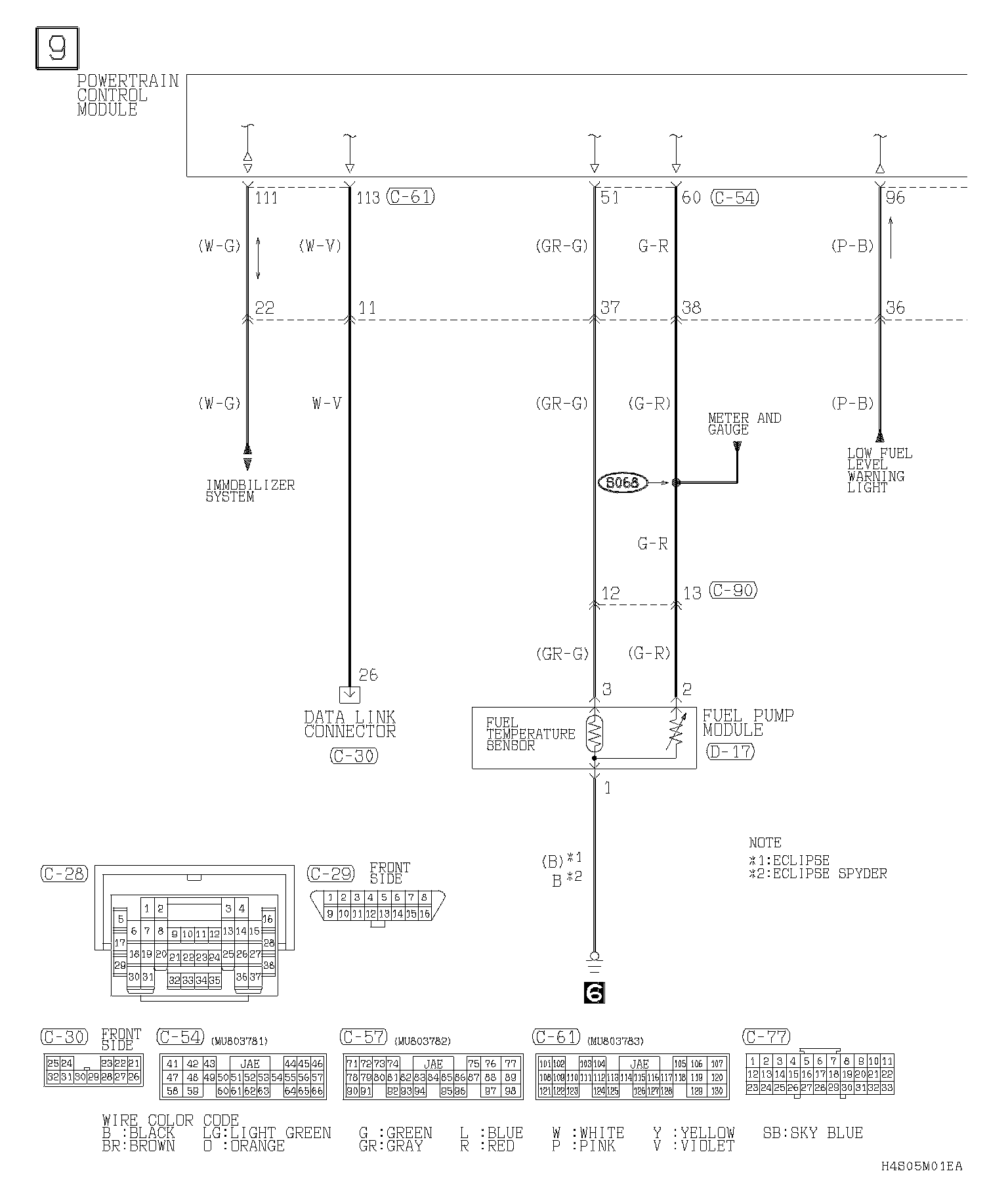

MFI System (A/T) Part 9:

Next Diagram MFI System Part 10

Previous diagram MFI System Part 8


Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
