Part 2 of 2

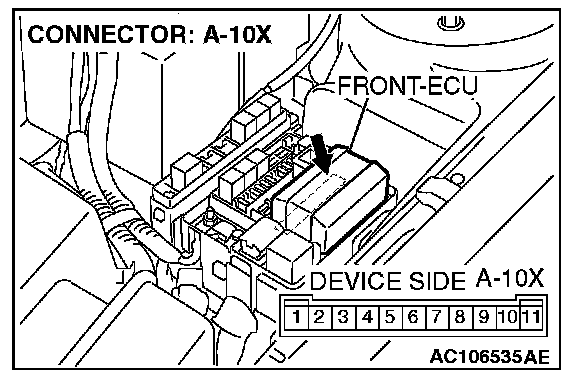

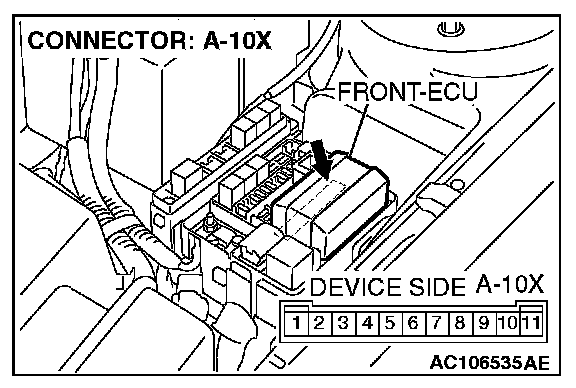

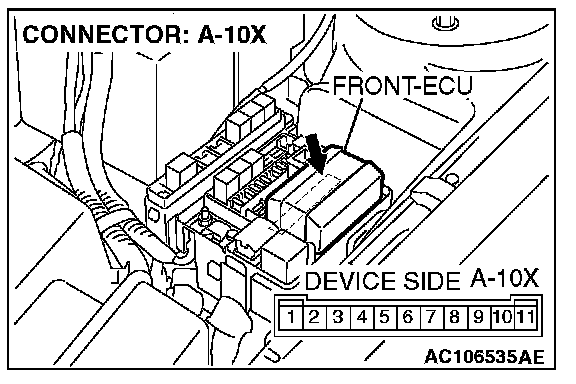

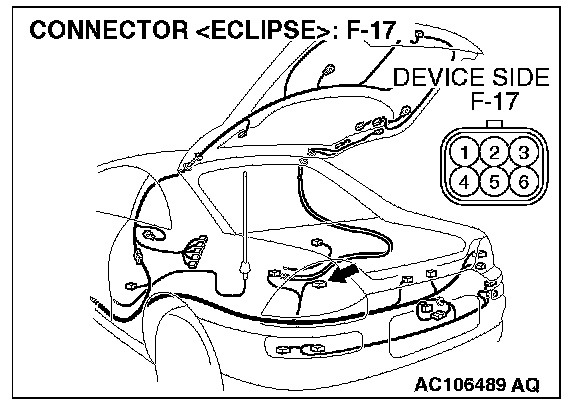

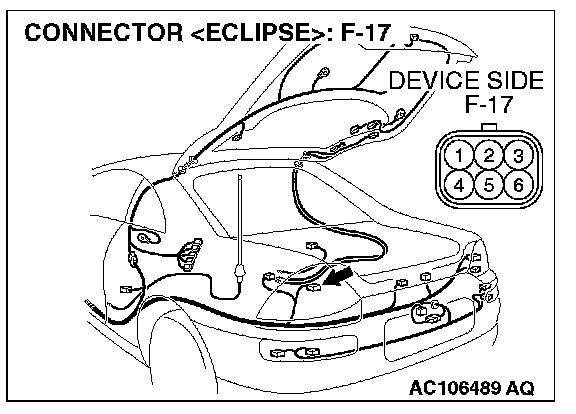

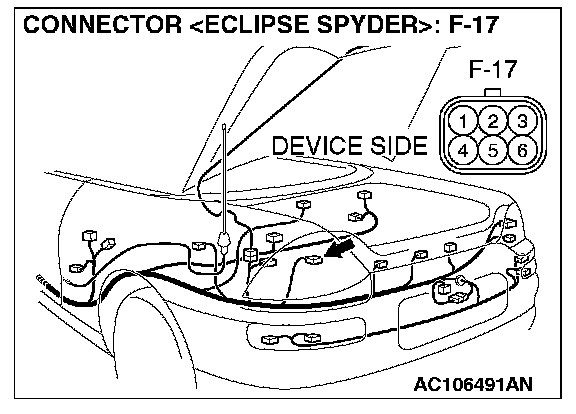

STEP 28. Check rear combination light (LH) connector F-17 and front-ECU connector A-10X for damage.

Q: Are rear combination light (LH) connector F-17 and front-ECU connector A-10X in good condition?

YES: Go to Step 29.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the tail light (LH) illuminates normally.
















STEP 29. Check the wiring harness between rear combination light (LH) connector F-17 (terminal 2) and front-ECU connector A-10X (terminal 8).

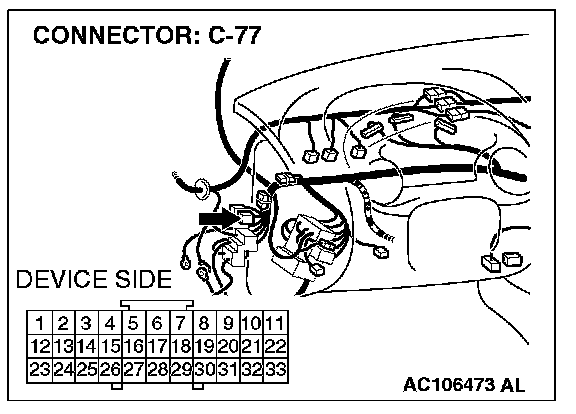

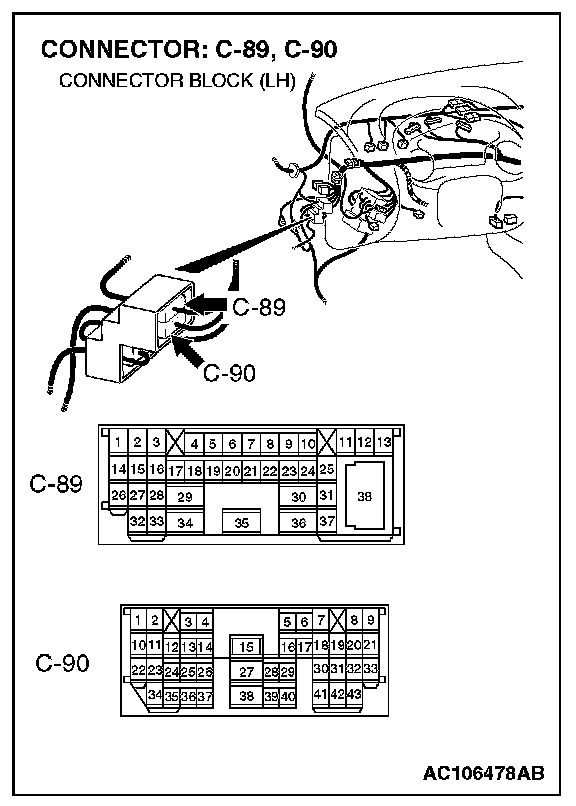

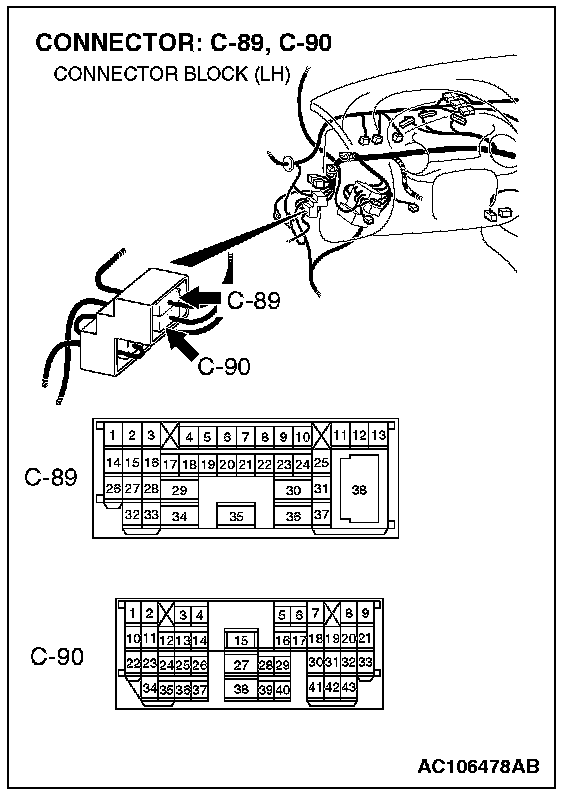

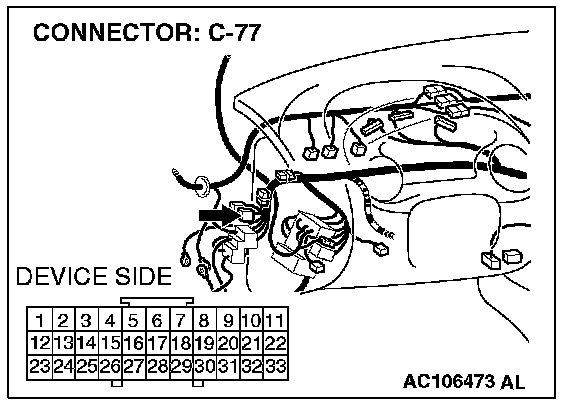

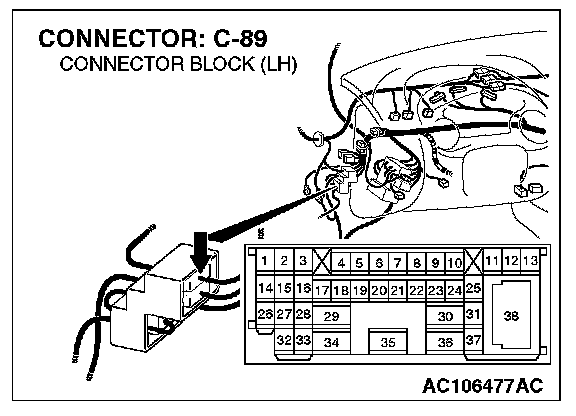

NOTE: Also check joint connector C-77 and intermediate connectors C-89 and C-90. If joint connector C-77 or intermediate connectors C-89 or C-90 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between rear combination light (LH) connector F-17 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the rear combination light socket assembly (LH). Check that the tail light (LH) illuminates normally.

NO: Repair the wiring harness. Check that the tail light (LH) illuminates normally.

STEP 30. Check the stop/tail light bulb (RH).

1. Remove the stop/tail light bulb (RH).
2. Check that the stop/tail light bulb (RH) is not broken.

Q: Is the stop/tail light bulb (RH) in good condition?

YES: Go to Step 31.

NO: Replace the stop/tail light bulb (RH). Check that the tail light (RH) illuminates normally.

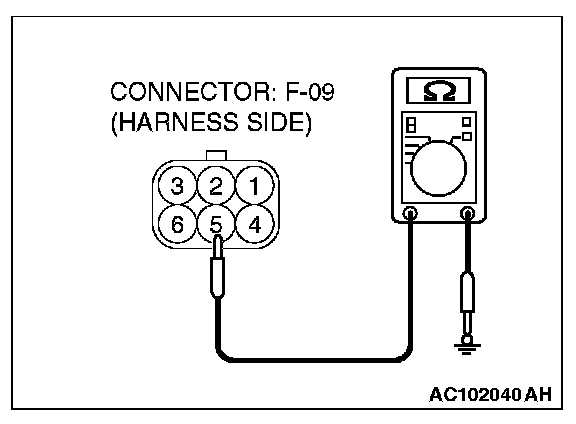

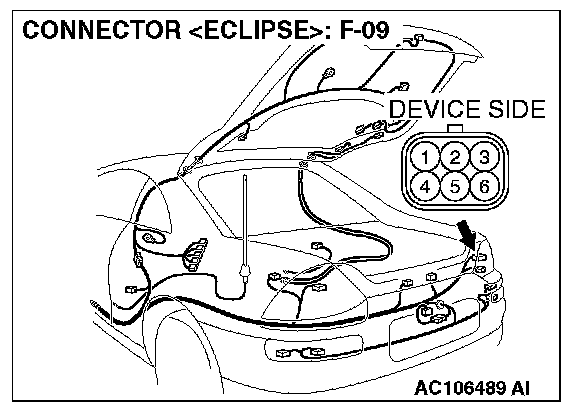

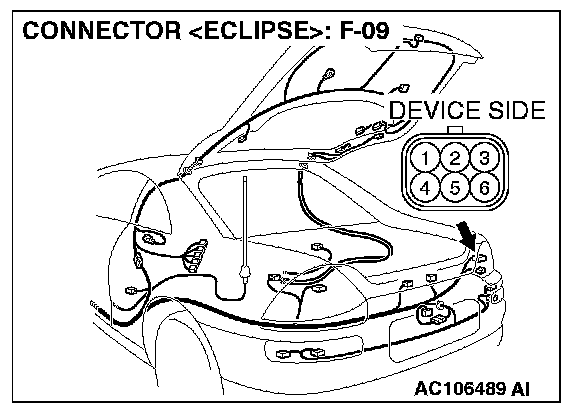

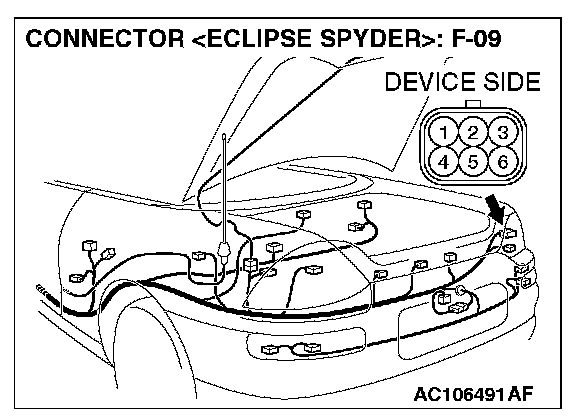

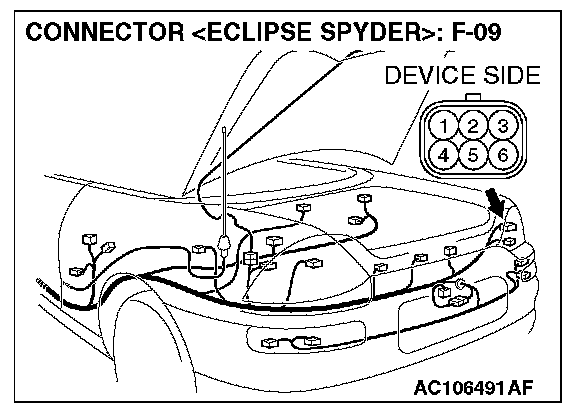

STEP 31. Measure at rear combination light (RH) connector F-09 in order to check the ground circuit to the rear combination light (RH).







1. Disconnect rear combination light (RH) connector F-09, and measure at the wiring harness side.




2. Measure the resistance value between terminal 5 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 34.

NO: Go to Step 32.

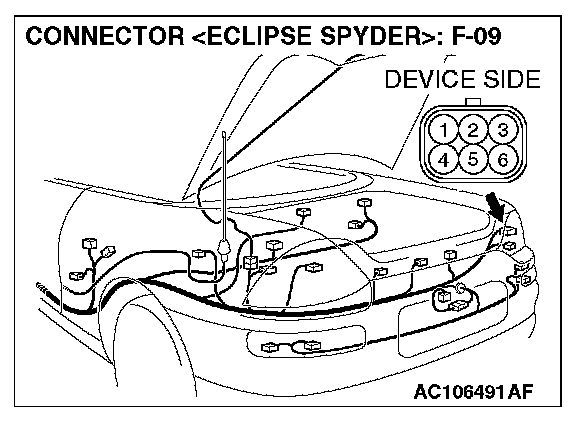

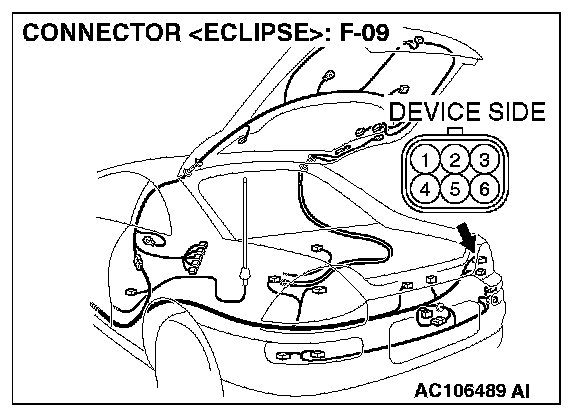

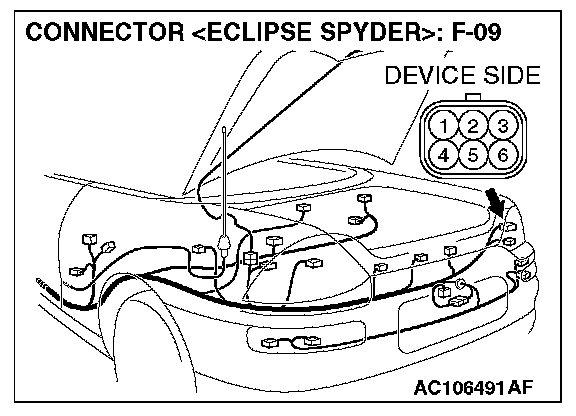

STEP 32. Check rear combination light (RH) connector F-09 for damage.

Q: Is rear combination light (RH) connector F-09 in good condition?

YES: Go to Step 33.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the tail light (RH) illuminates normally.







STEP 33. Check the wiring harness between rear combination light (RH) connector F-09 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (RH) connector F-09 (terminal 5) and ground in good condition?

YES: Replace the rear combination light socket assembly (RH). Check that the tail light (RH) illuminates normally.

NO: Repair the wiring harness. Check that the tail light (RH) illuminates normally.

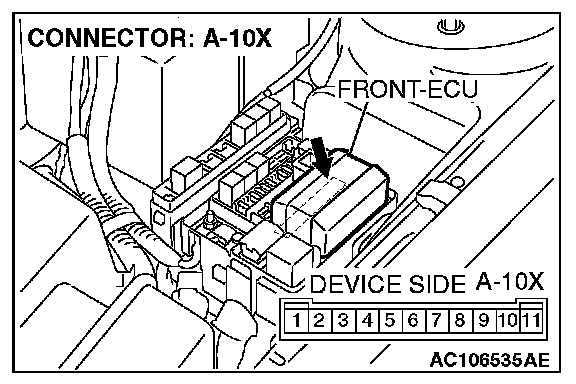

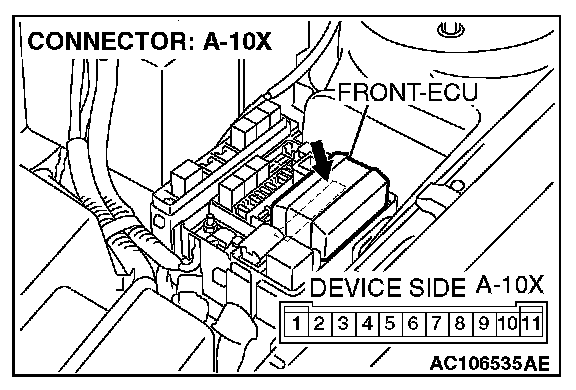

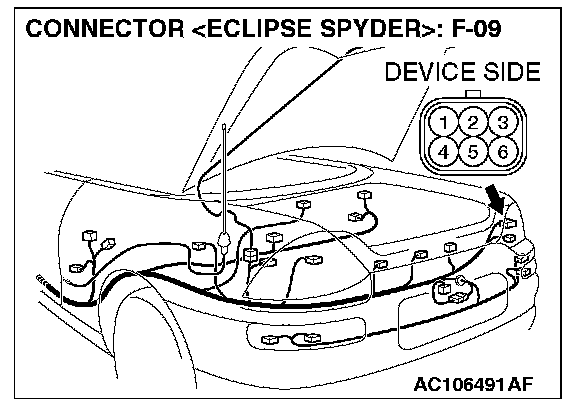

STEP 34. Check rear combination light (RH) connector F-09 and front-ECU connector A-10X for damage.

Q: Are rear combination light (RH) connector F-09 and front-ECU connector A-10X in good condition?

YES: Go to Step 35.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the tail light (RH) illuminates normally.
















STEP 35. Check the wiring harness between rear combination light (RH) connector F-09 (terminal 2) and front-ECU connector A-10X (terminal 8).

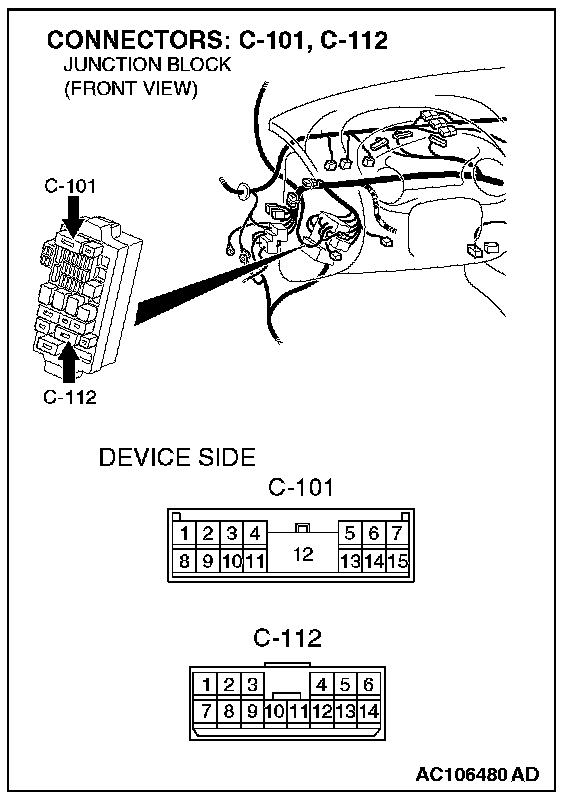

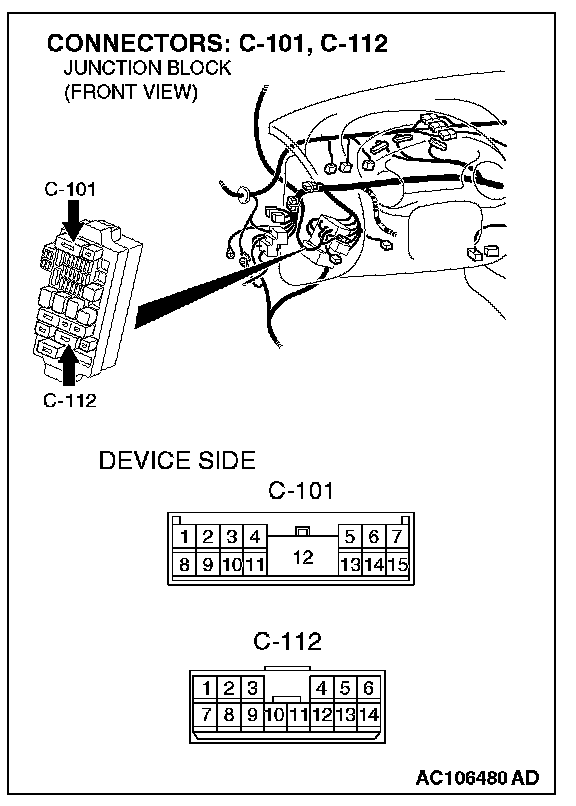

NOTE: Also check intermediate connector C-89, junction block connectors C-101 and C-112. If intermediate connector C-89, junction block connector C-101 or C-112 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between rear combination light (RH) connector F-09 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the rear combination light socket assembly (RH). Check that the tail light (RH) illuminates normally.

NO: Repair the wiring harness. Check that the tail light (RH) illuminates normally.

STEP 36. Check the rear side marker light bulb (LH).

1. Remove the rear side marker light bulb (LH).
2. Check that the rear side marker light bulb (LH) is not broken.

Q: Is the rear side marker light bulb (LH) in good condition?

YES: Go to Step 37.

NO: Replace the rear side marker light bulb (LH). Check that the rear side marker light (LH) illuminate normally.

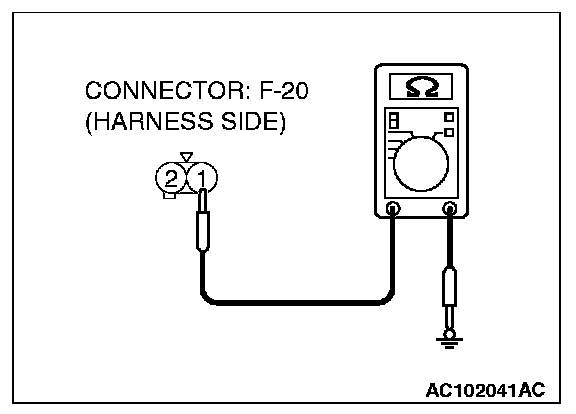

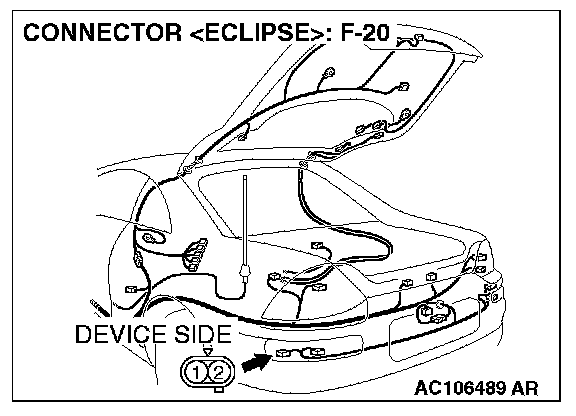

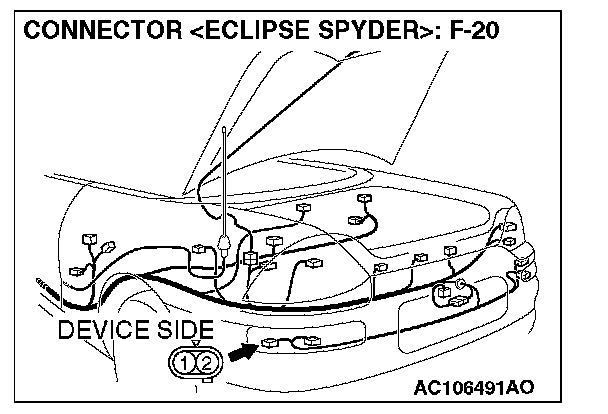

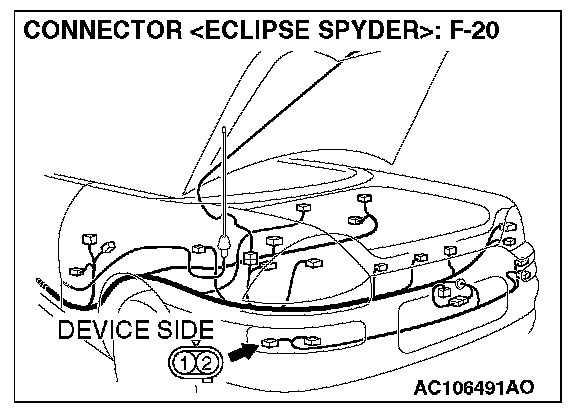

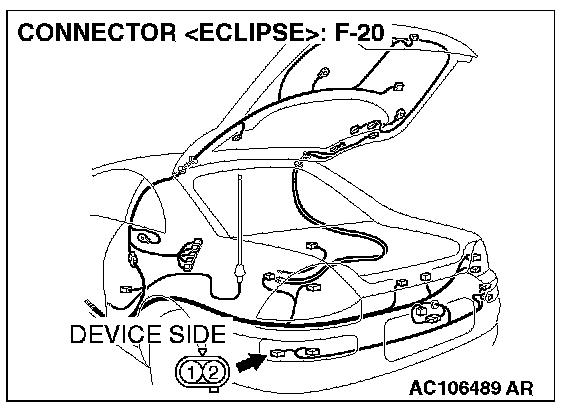

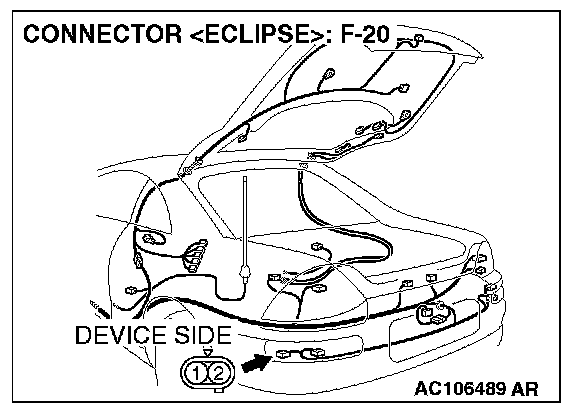

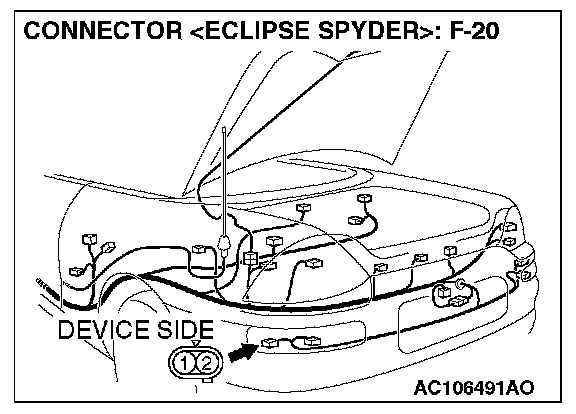

STEP 37. Measure at rear side marker light (LH) connector F-20 in order to check the ground circuit to the license plate lights.







1. Disconnect rear side marker light (LH) connector F-20, and measure at the wiring harness side.




2. Measure the resistance value between terminal 1 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 40.

NO: Go to Step 38.

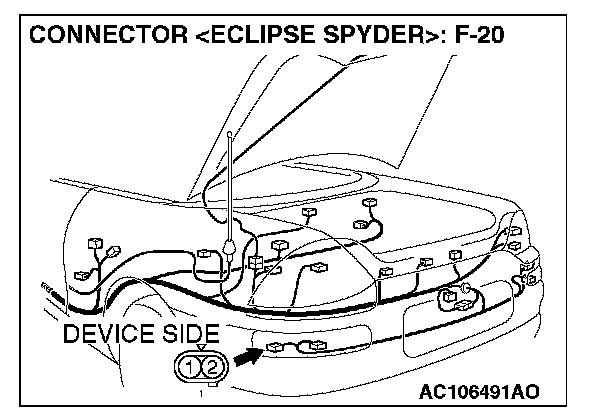

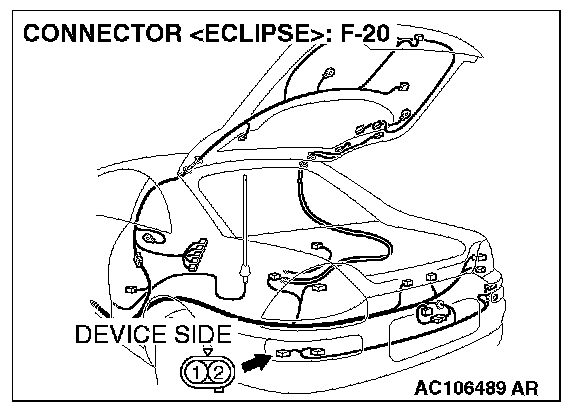

STEP 38. Check rear side marker light (LH) connector F-20 for damage.

Q: Is rear side marker light (LH) connector F-20 in good condition?

YES: Go to Step 39.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the rear side marker light (LH) illuminate normally.







STEP 39. Check the wiring harness between rear side marker light (LH) connector F-20 (terminal 1) and ground.

Q: Is the wiring harness between rear side marker light (LH) connector F-20 (terminal 1) and ground in good condition?

YES: Replace the rear side marker light socket (LH). Check that the rear side marker light (LH) illuminate normally.

NO: Repair the wiring harness. Check that the rear side marker light (LH) illuminate normally.










STEP 40. Check rear side marker light (LH) connector F-20 and front-ECU connector A-10X for damage.

Q: Are rear side marker light (LH) connector F-20 and front-ECU connector A-10X in good condition?

YES: Go to Step 41.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the rear side marker light (LH) illuminate normally.
















STEP 41. Check the wiring harness between rear side marker light (LH) connector F-20 (terminal 2) and front-ECU connector A-10X (terminal 8).

NOTE: Also check intermediate connectors C-89 and C-90 and joint connector C-77. If intermediate connectors C-89 or C-90 or joint connector C-77 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between rear side marker light (LH) connector F-20 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the rear side marker light socket (LH). Check that the rear side marker light (LH) illuminate normally.

NO: Repair the wiring harness. Check that the rear side marker light (LH) illuminate normally.

STEP 42. Check the rear side marker light bulb (RH).

1. Remove the rear side marker light bulb (RH).
2. Check that the rear side marker light bulb (RH) is not broken.

Q: Is the rear side marker light bulb (RH) in good condition?

YES: Go to Step 43.

NO: Replace the rear side marker light bulb (RH). Check that the rear side marker light (RH) illuminate normally.

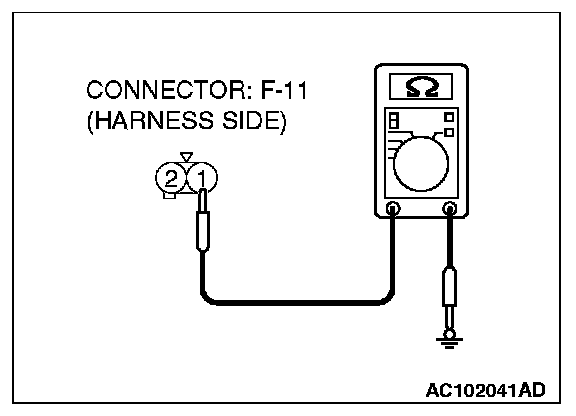

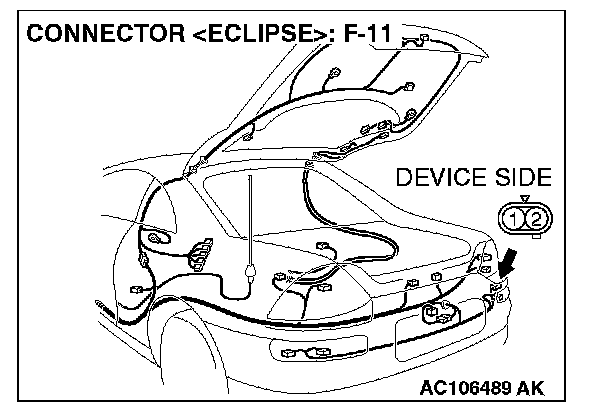

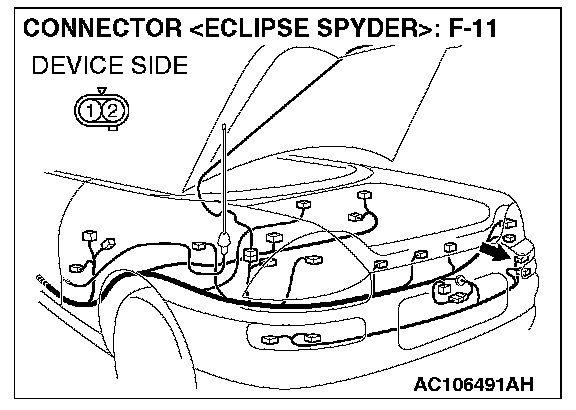

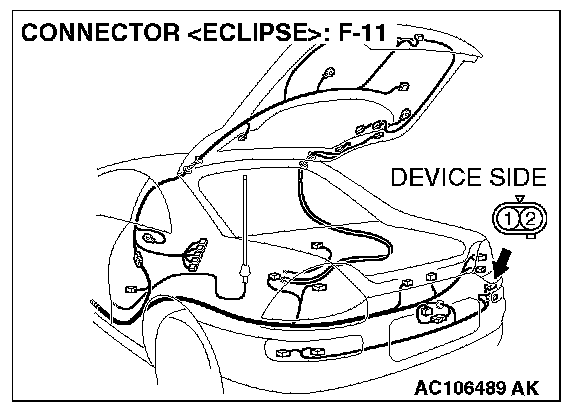

STEP 43. Measure at rear side marker light (RH) connector F-11 in order to check the ground circuit to the license plate lights.







1. Disconnect rear side marker light (RH) connector F-11, and measure at the wiring harness side.




2. Measure the resistance value between terminal 1 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 46.

NO: Go to Step 44.

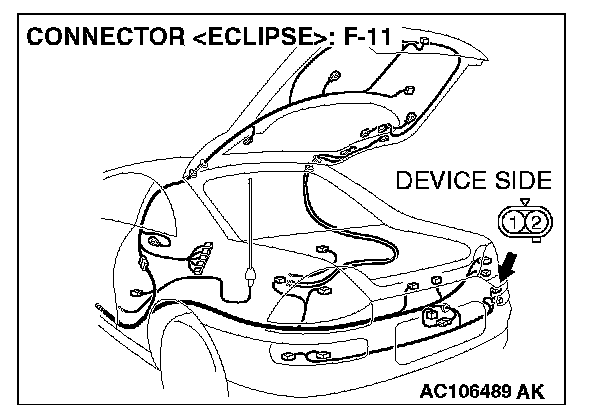

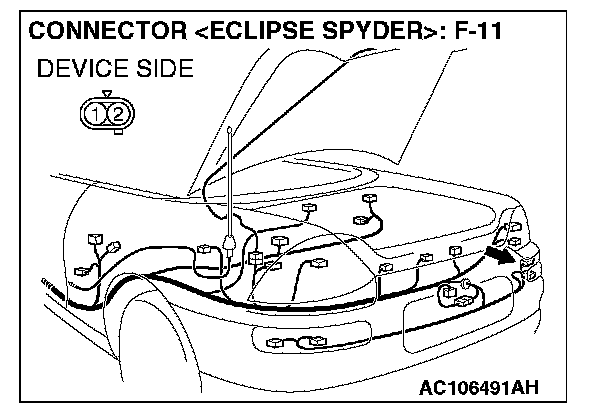

STEP 44. Check rear side marker light (RH) connector F-11 for damage.

Q: Is rear side marker light (RH) connector F-11 in good condition?

YES: Go to Step 45.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the rear side marker light (RH) illuminate normally.







STEP 45. Check the wiring harness between rear side marker light (RH) connector F-11 (terminal 1) and ground.

Q: Is the wiring harness between rear side marker light (RH) connector F-11 (terminal 1) and ground in good condition?

YES: Replace the rear side marker light socket (RH). Check that the rear side marker light (RH) illuminate normally.

NO: Repair the wiring harness. Check that the rear side marker light (RH) illuminate normally.

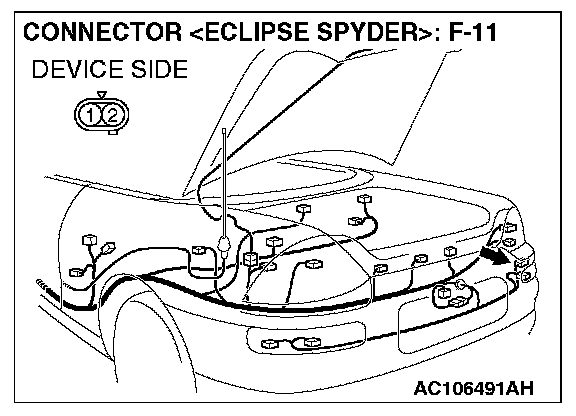

STEP 46. Check rear side marker light (RH) connector F-11 and front-ECU connector A-10X for damage.

Q: Are rear side marker light (RH) connector F-11 and front-ECU connector A-10X in good condition?

YES: Go to Step 47.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the rear side marker light (RH) illuminate normally.
















STEP 47. Check the wiring harness between rear side marker light (RH) connector F-11 (terminal 2) and front-ECU connector A-10X (terminal 8).

NOTE: Also check intermediate connector C-89, junction block connectors C-101 and C-112. If intermediate connector C-89, junction block connector C-101 or C-112 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between rear side marker light (RH) connector F-11 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the rear side marker light socket (RH). Check that the rear side marker light (RH) illuminate normally.

NO: Repair the wiring harness. Check that the rear side marker light (RH) illuminate normally.

STEP 48. Check the license plate light bulb.

1. Remove the license plate light bulb.
2. Check that the license plate light bulb is not broken.

Q: Is the license plate light bulb in good condition?

YES: Go to Step 49.

NO: Replace the license plate light bulb. Check that the license plate light illuminate normally.

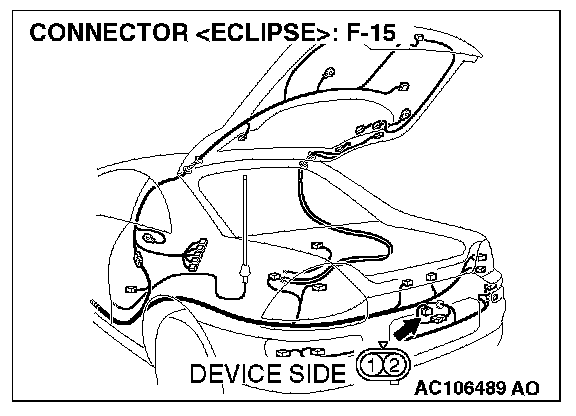

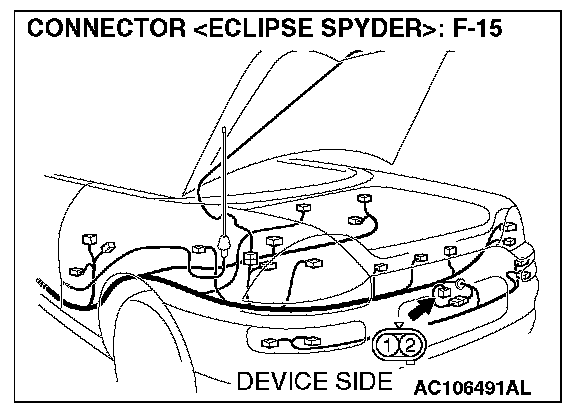

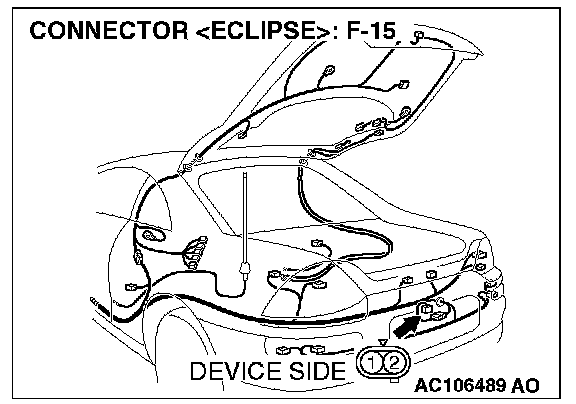

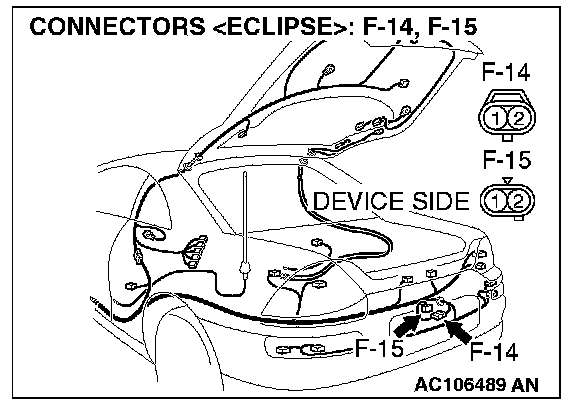

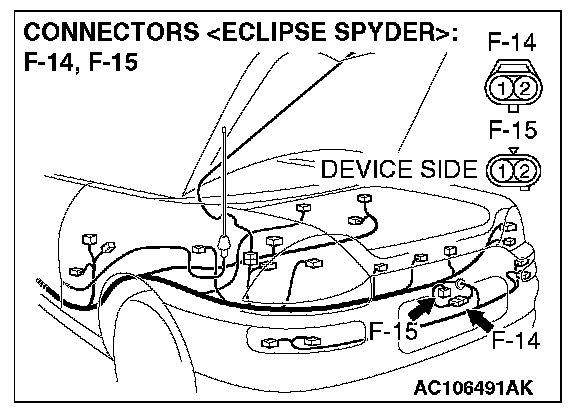

STEP 49. Measure at license plate light connector F-15 in order to check the ground circuit to the license plate lights.







1. Disconnect license plate light connector F-15, and measure at the wiring harness side.




2. Measure the resistance value between terminal 1 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 52.

NO: Go to Step 50.

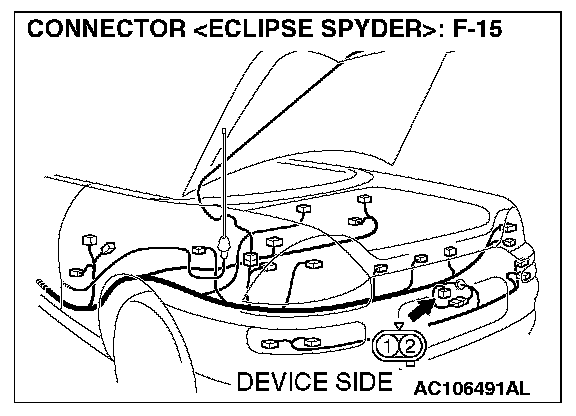

STEP 50. Check license plate light connector F-15 for damage.

Q: Is license plate light connector F-15 in good condition?

YES: Go to Step 51.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the license plate light illuminate normally.







STEP 51. Check the wiring harness between license plate light connector F-15 (terminal 1) and ground.

NOTE: Also check intermediate connector F-14. If intermediate connector F-14 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between license plate light connector F-15 (terminal 1) and ground in good condition?

YES: Replace the license plate light socket. Check that the license plate light illuminate normally.

NO: Repair the wiring harness. Check that the license plate light illuminate normally.










STEP 52. Check license plate light connector F-15 and front-ECU connector A-10X for damage.

Q: Are license plate light connector F-15 and front-ECU connector A-10X in good condition?

YES: Go to Step 53.

NO: Repair or replace the connector. Refer to Harness connector Inspection. Check that the license plate light illuminate normally.
















STEP 53. Check the wiring harness between license plate light connector F-15 (terminal 2) and front-ECU (terminal 8) connector A-10X.

NOTE: Also check intermediate connectors C-89 and C-90 and F-14 and joint connector C-77. If intermediate connectors C-89 or C-90 or F-14 or joint connector C-77 is damaged, repair or replace the connector as described in Harness connector Inspection.

Q: Is the wiring harness between license plate light connector F-15 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the license plate light socket. Check that the license plate light illuminate normally.

NO: Repair the wiring harness. Check that the license plate light illuminate normally.
