Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

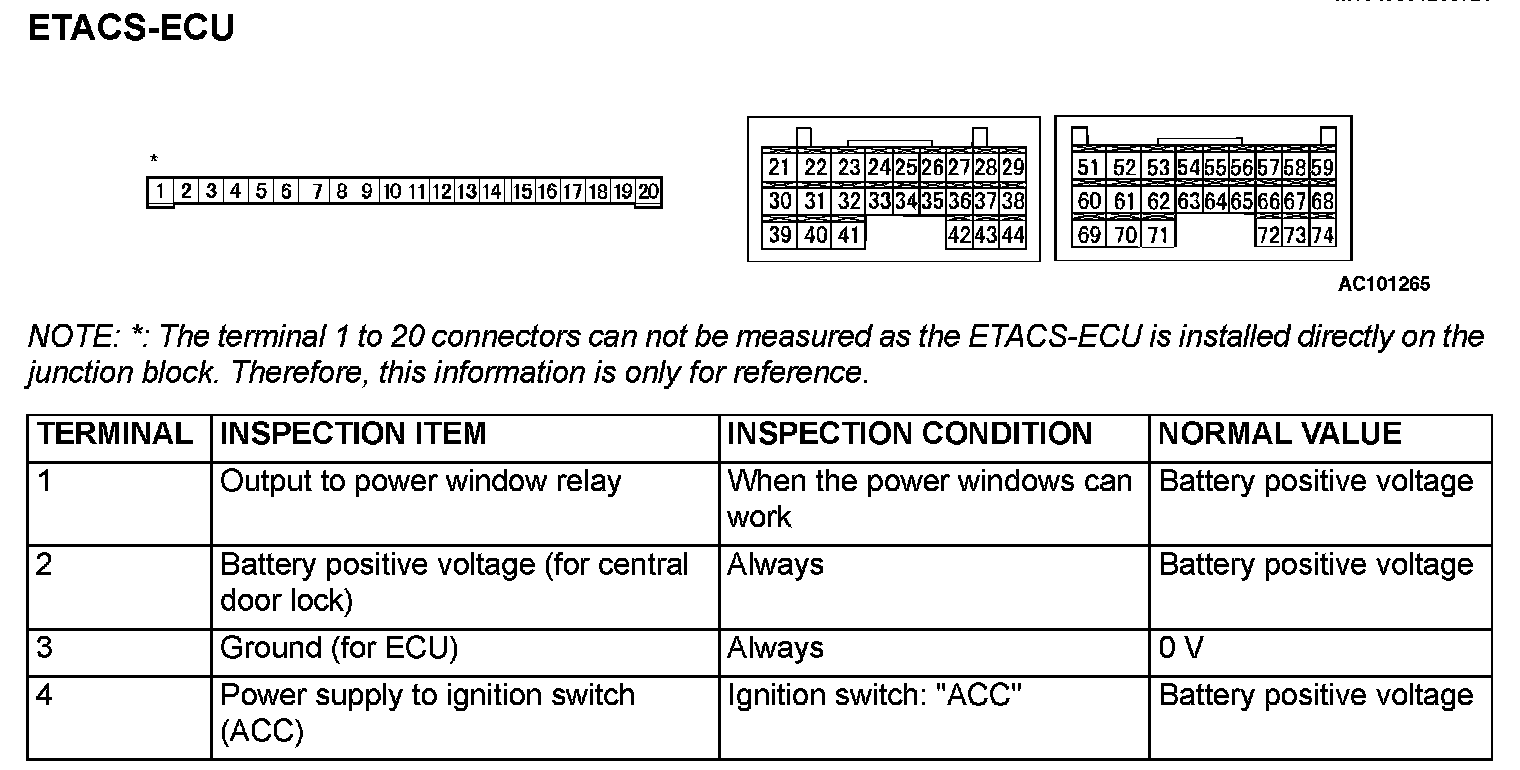

ETACS-ECU Part 1:

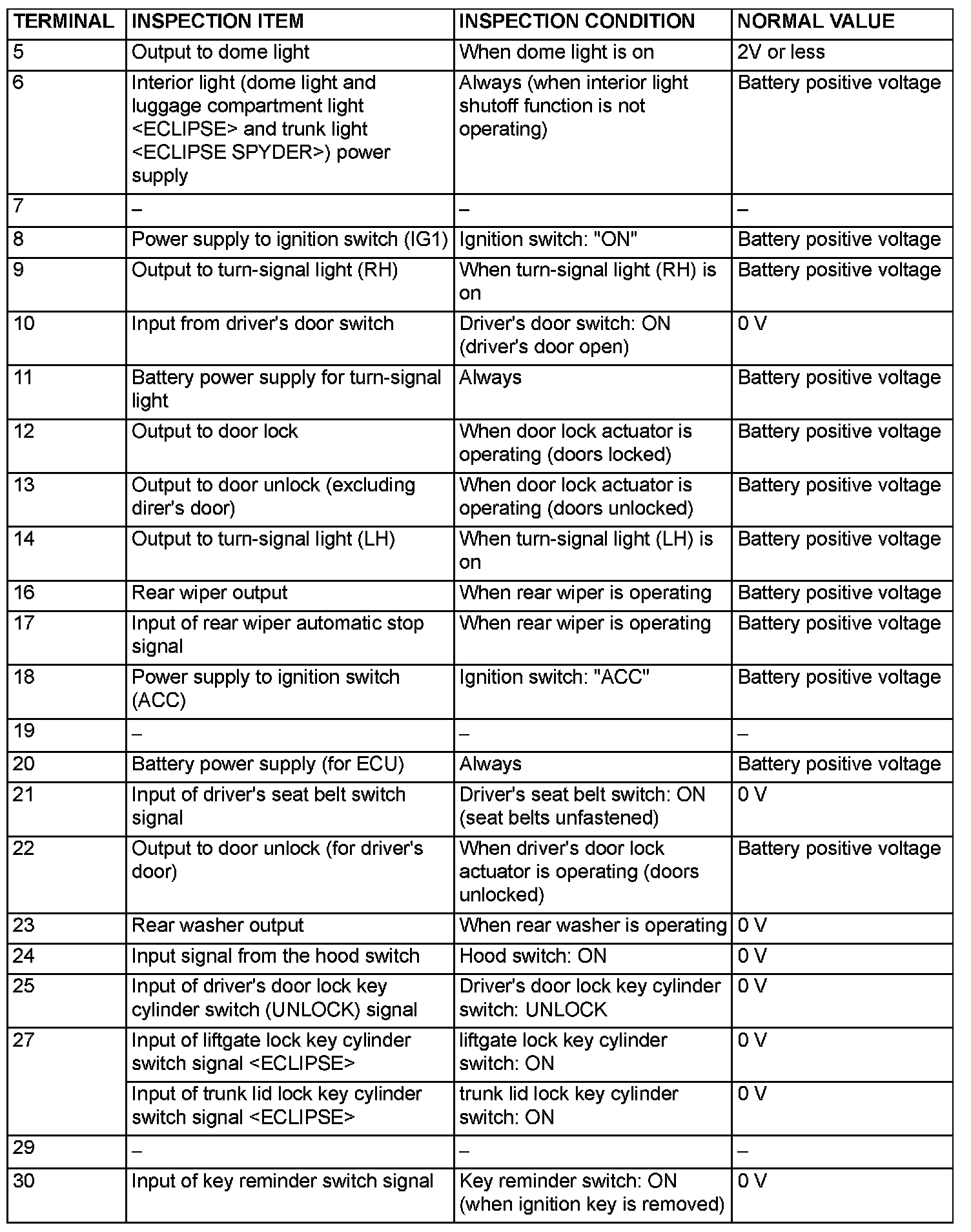

ETACS-ECU Part 2:

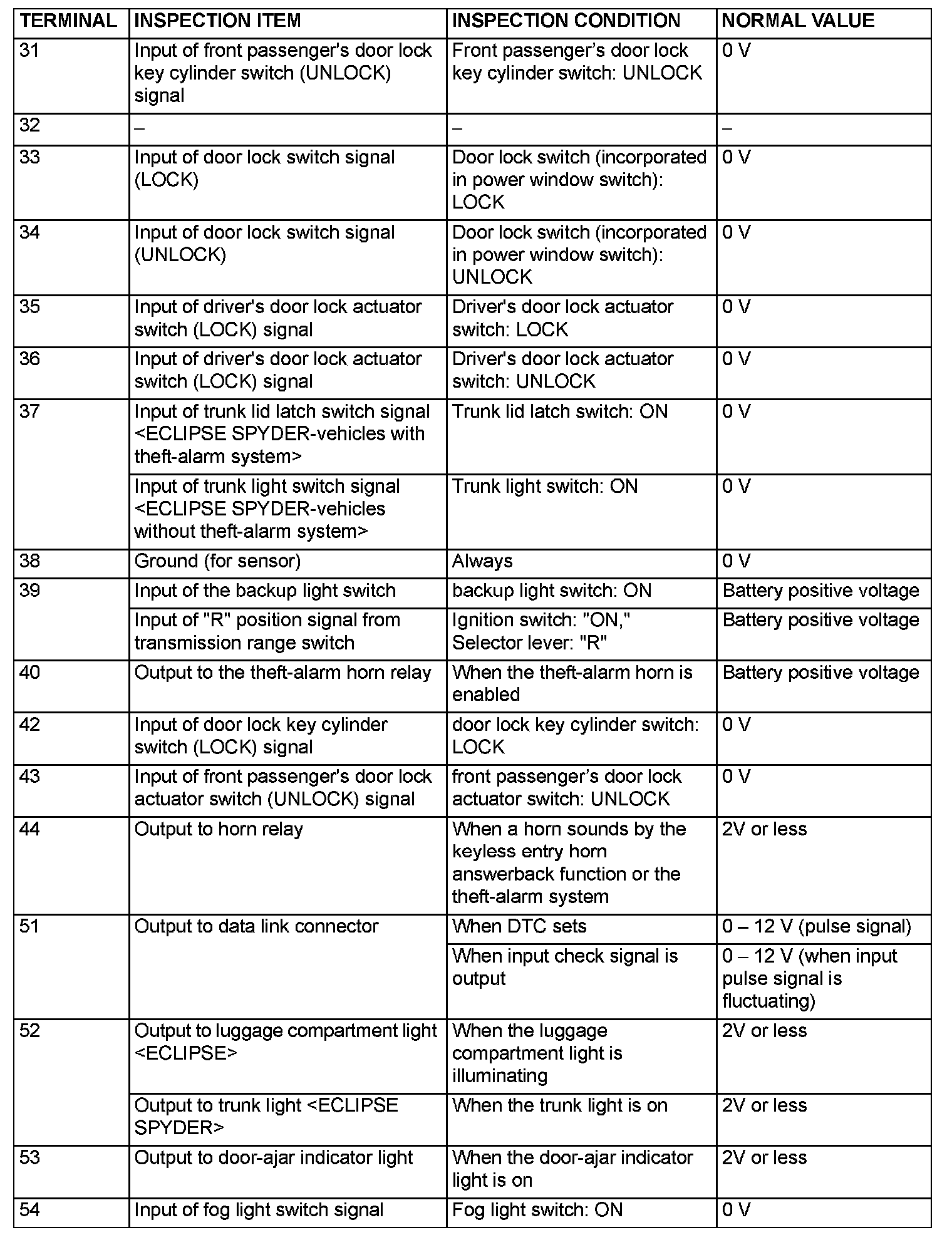

ETACS-ECU Part 3:

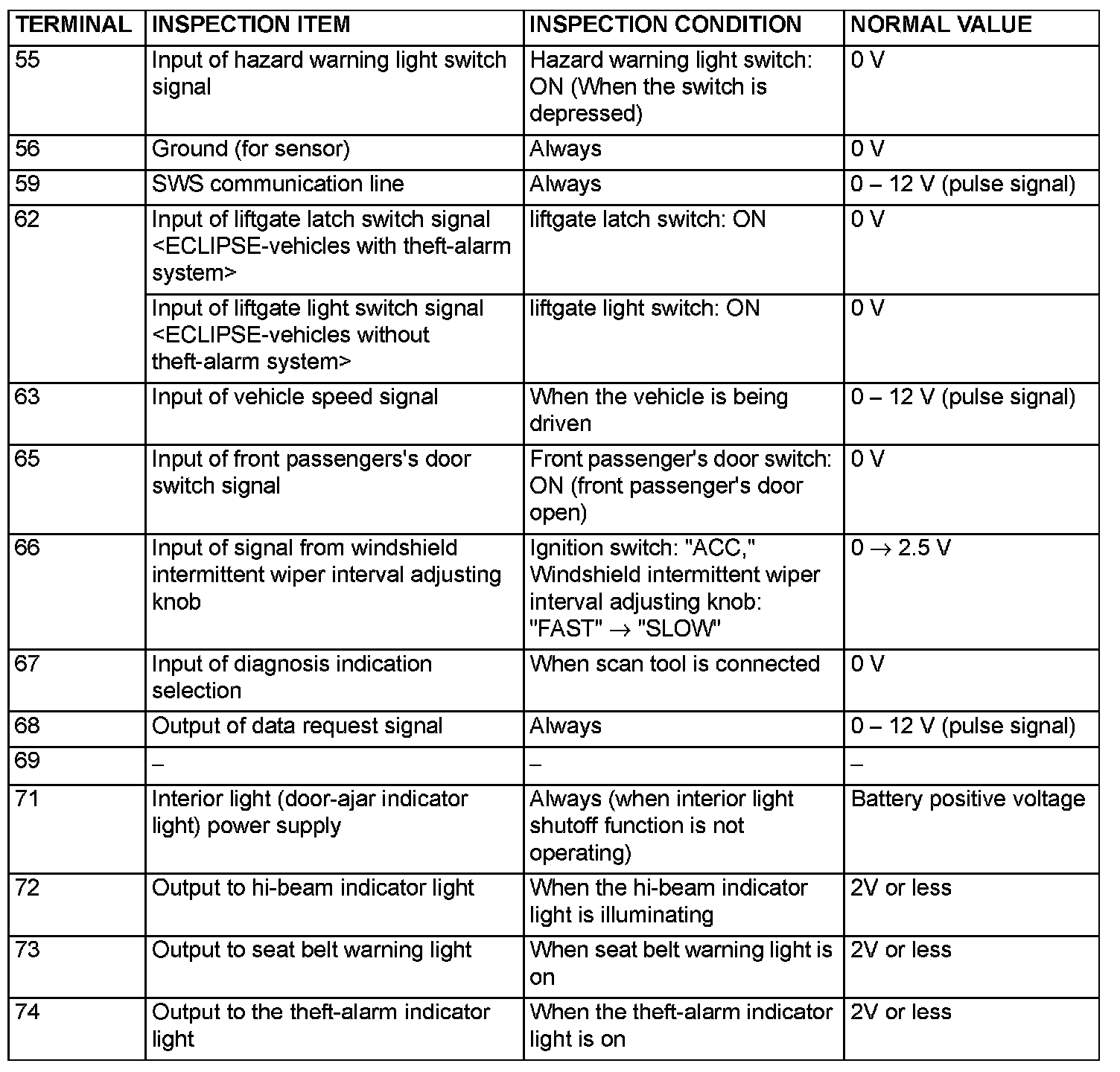

ETACS-ECU Part 4:

ETACS-ECU

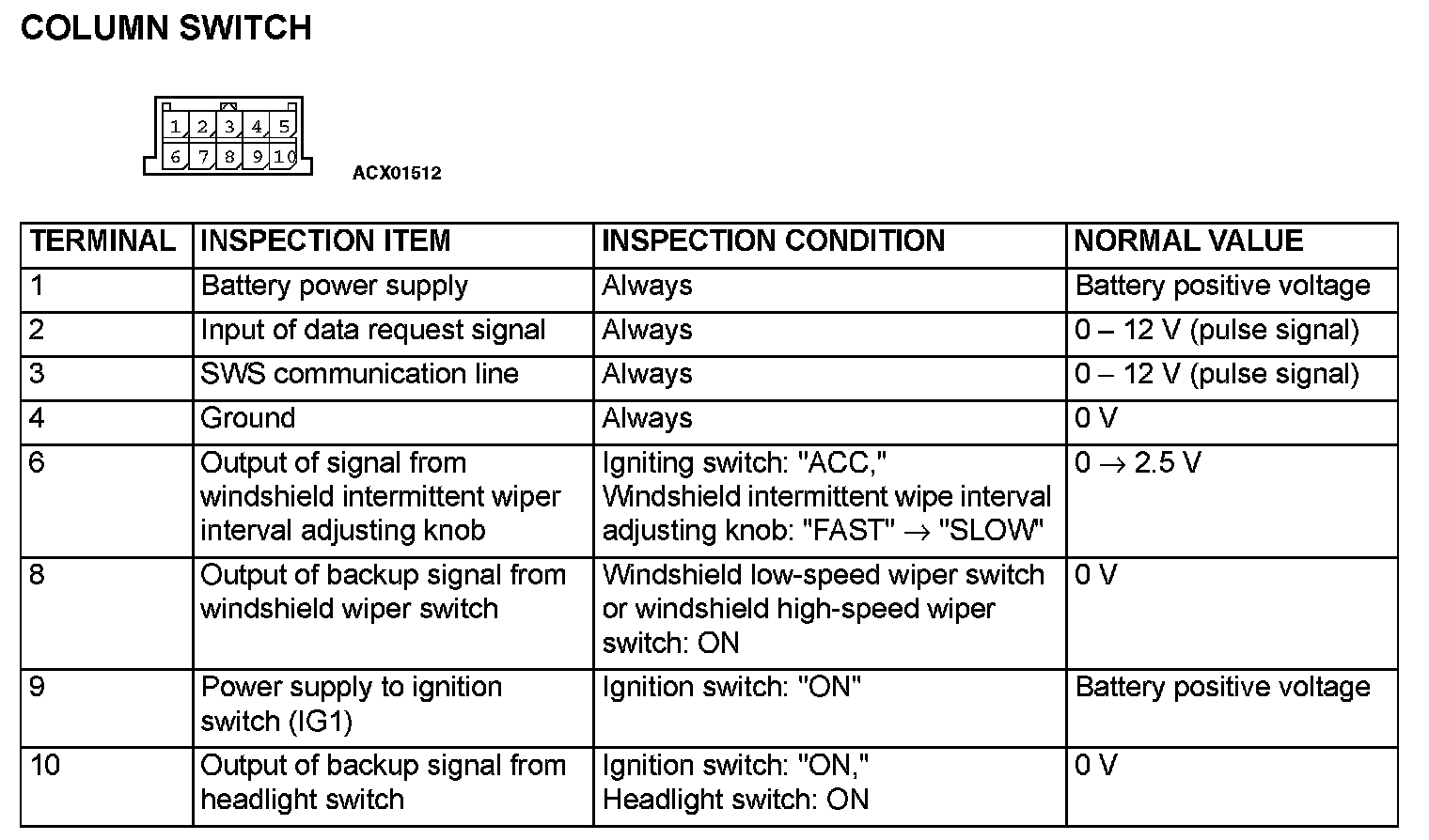

Column Switch:

COLUMN SWITCH

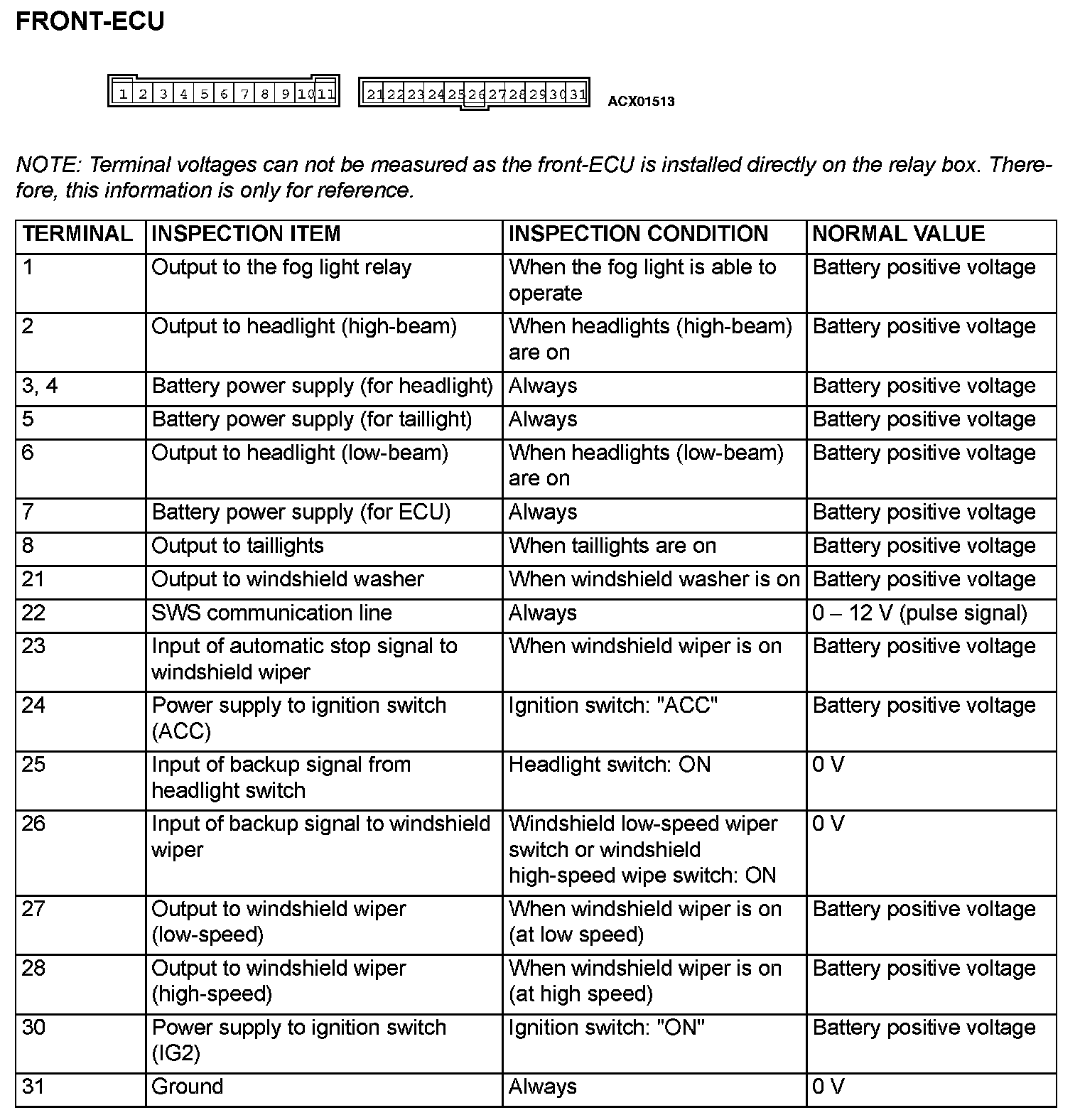

Front-ECU:

FRONT-ECU

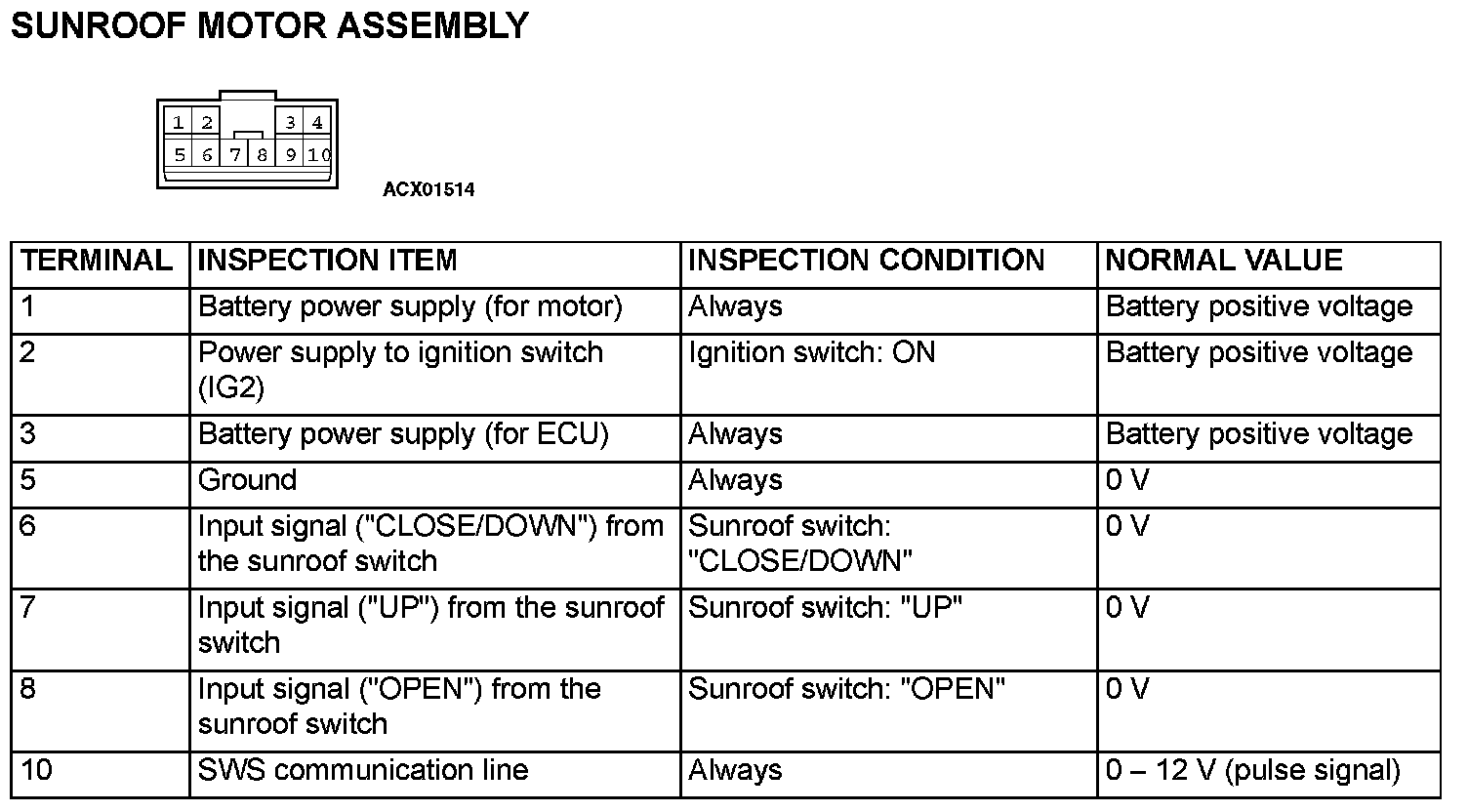

Sunroof Motor Assembly:

SUNROOF MOTOR ASSEMBLY
