Fog/Driving Lamp Bulb: Service and Repair

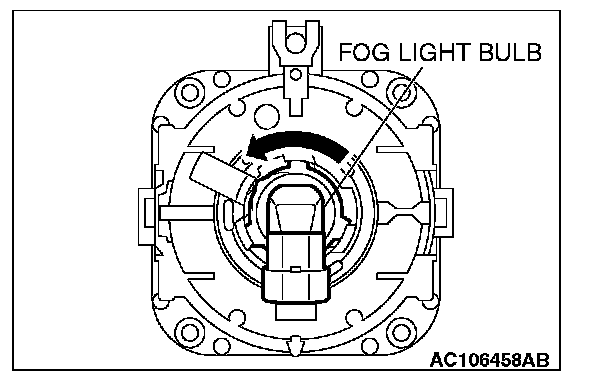

REPLACEMENT OF REPLACEABLE BULB

1. Disconnect the fog light connector behind the bumper.




2. Remove the bulb by turning the socket.
