S063-S0218 -- Dash Panel
S063-S0218 -- Dash Panel

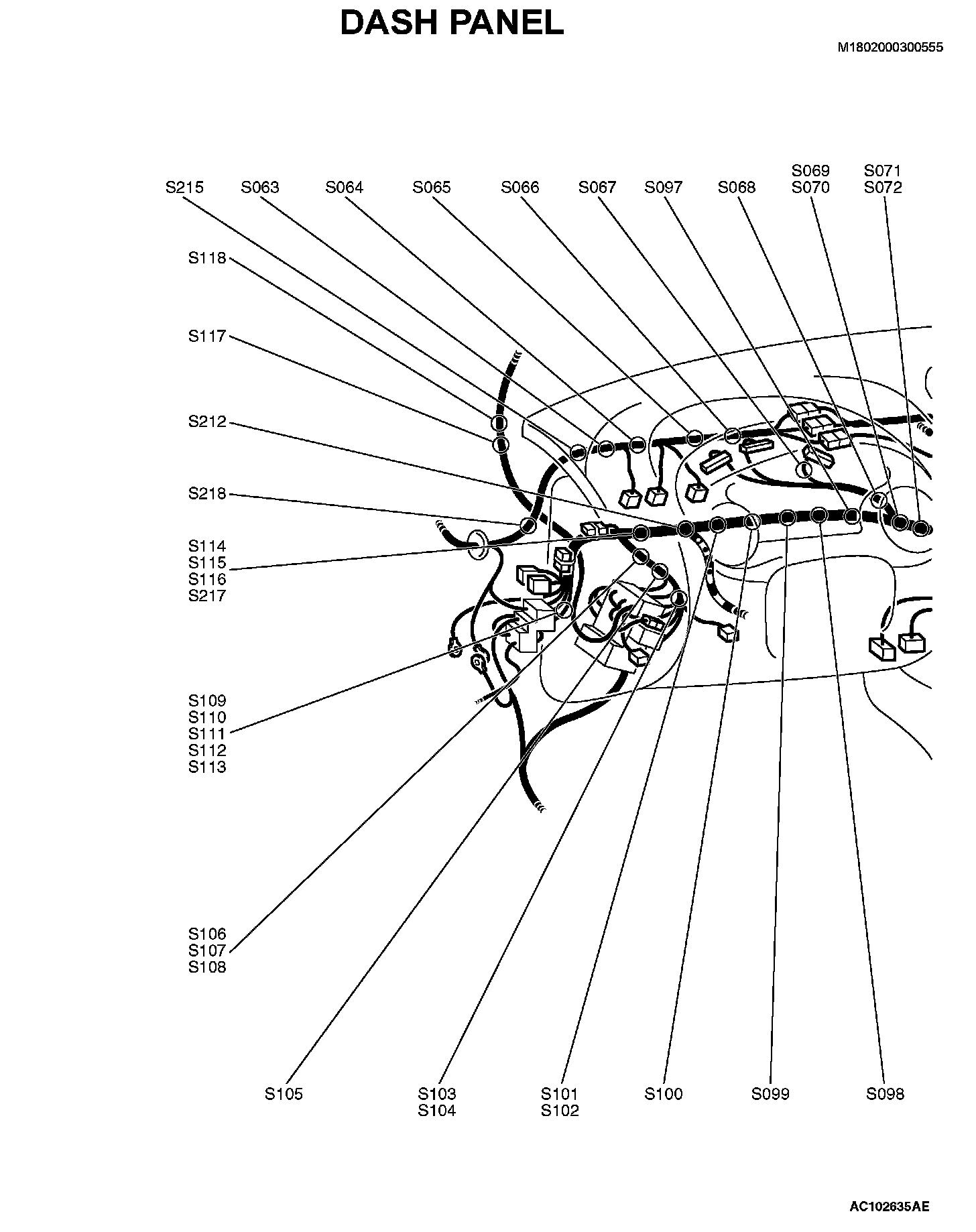

S063-S0218 -- Dash Panel (Part 1):

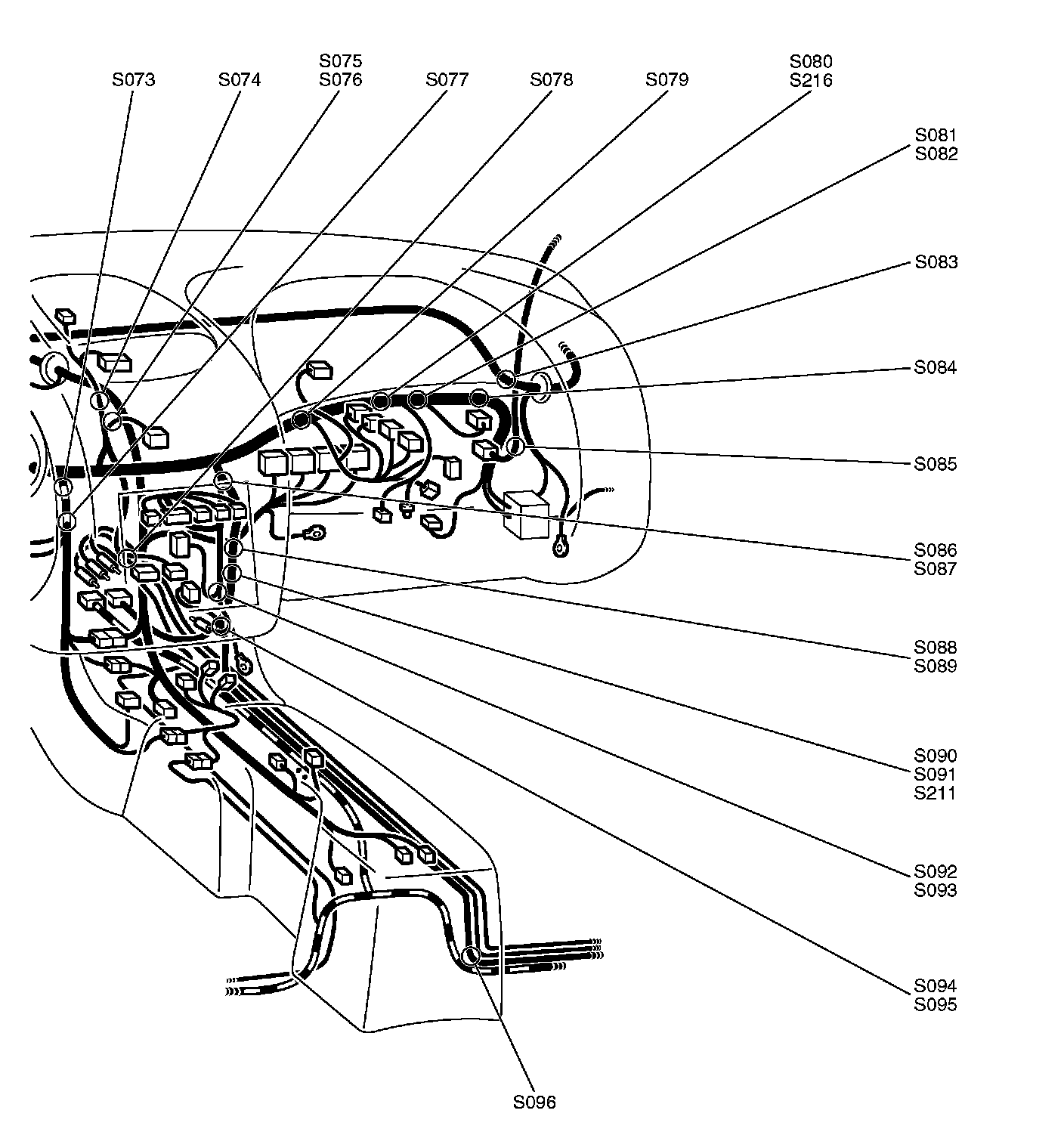

S063-S0218 -- Dash Panel (Part 2):
S063-S0218 -- Dash Panel (Part 1):
S063-S0218 -- Dash Panel:
