Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

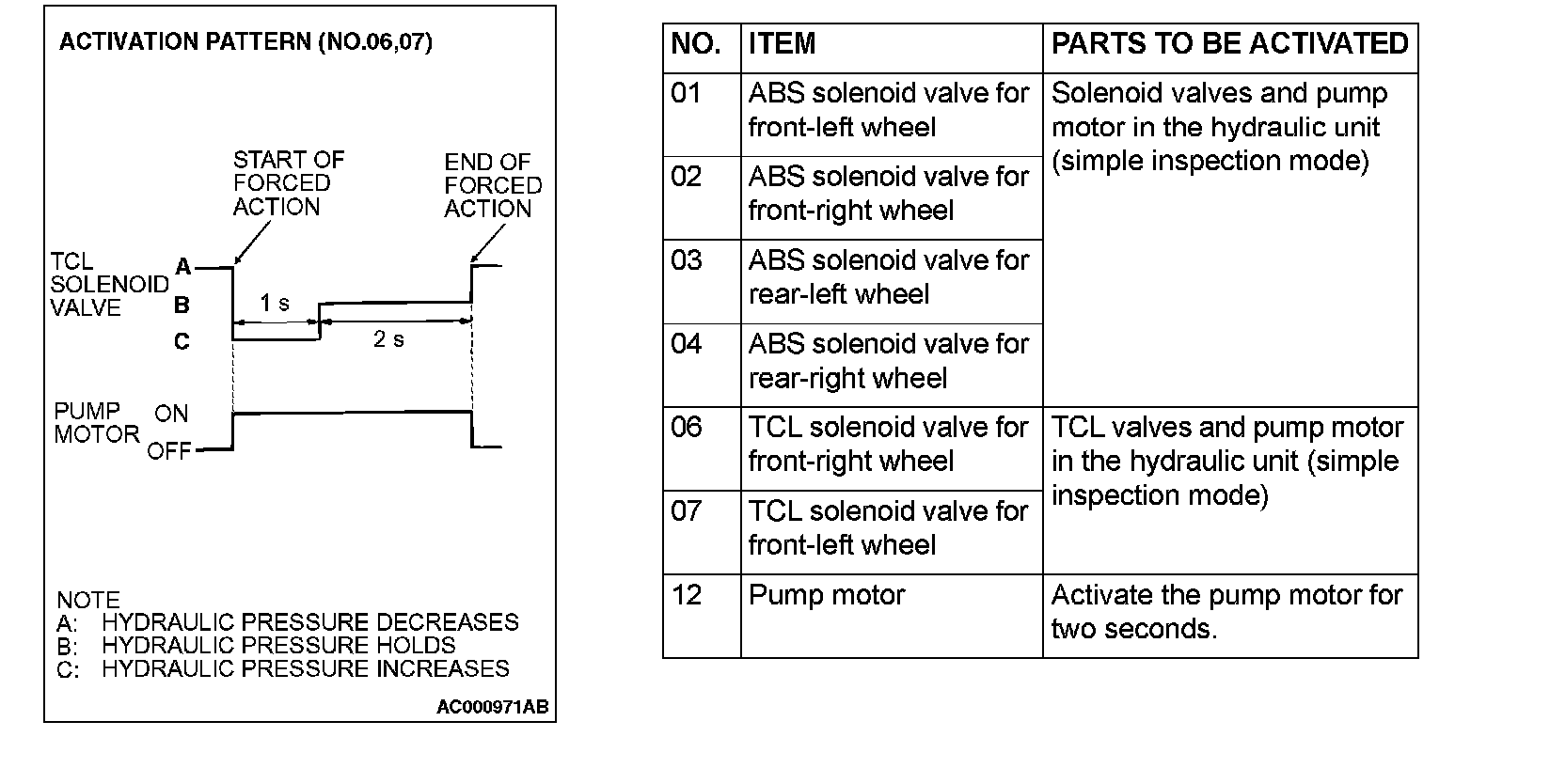

ACTUATOR TEST SPECIFICATIONS
The scan tool activates the following actuators for testing.





NOTE: If the ABS-ECU is inoperative, actuator testing cannot be carried out.

NOTE: Actuator testing is only possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h (6 mph), forced actuation will be canceled.
