Speaker: Testing and Inspection

ON-VEHICLE SERVICE

SPEAKER TEST

Enter the speaker test mode according to the following steps:
1. Turn the Ignition switch to "ACC" or "ON" position and switch off the radio with tape and CD player.

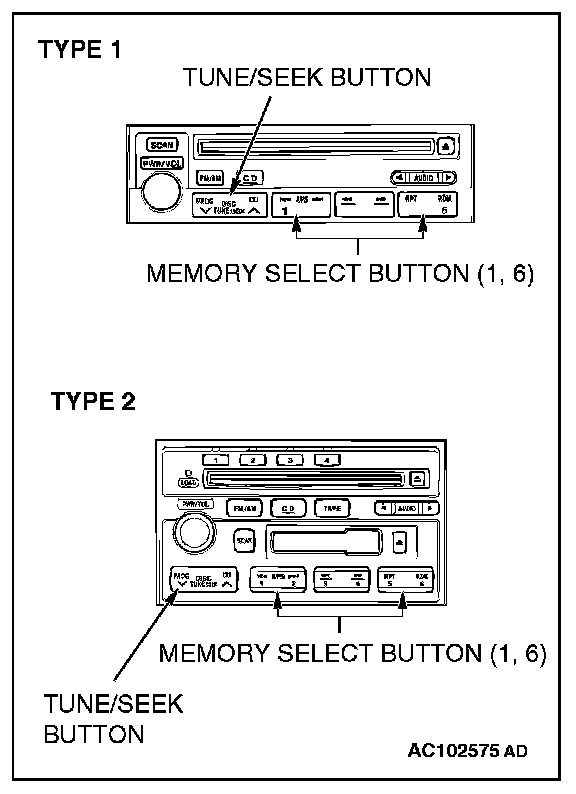

2. Press the following buttons in that order within sixty seconds from step (1).
1. Memory select "1" button
2. "TUNE/SEEK (DOWN)" button
3. "TUNE/SEEK (UP)" button
4. Memory select "6" button

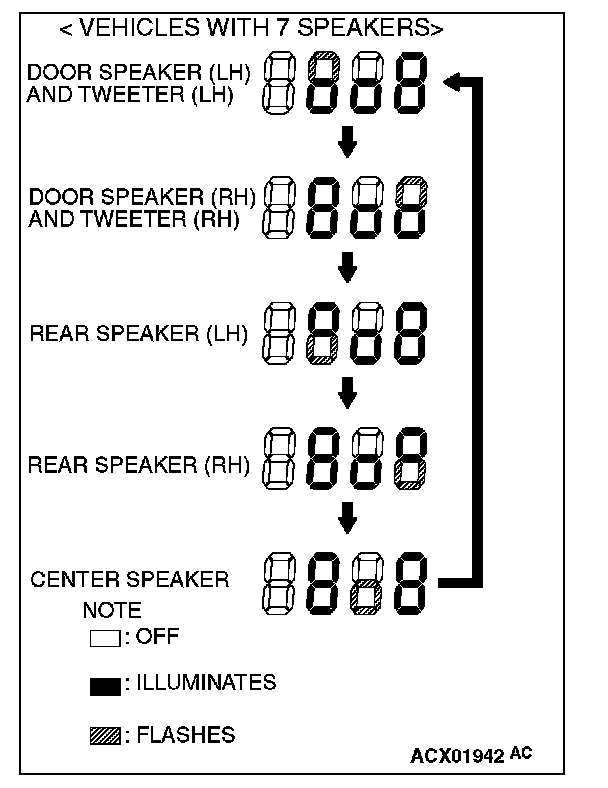

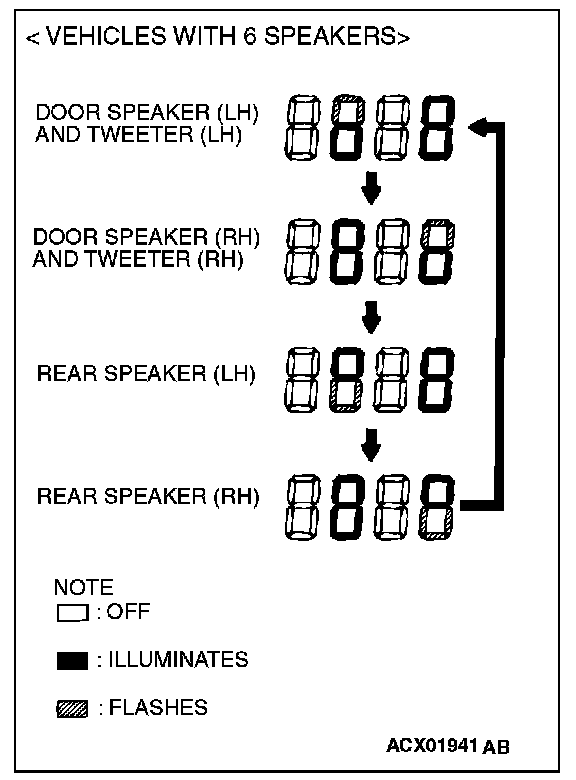

3. Check that the speaker, which is displayed on the multi- center display, sounds (If the memory select "6" button is pressed, the speaker will be changed).
4. If a button other than the memory select "6" button and "EJECT" button (tape or CD) is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will exit from the speaker test mode.
