Items Indicated By the Malfunction Indicator Lamp

Items Indicated by the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp)

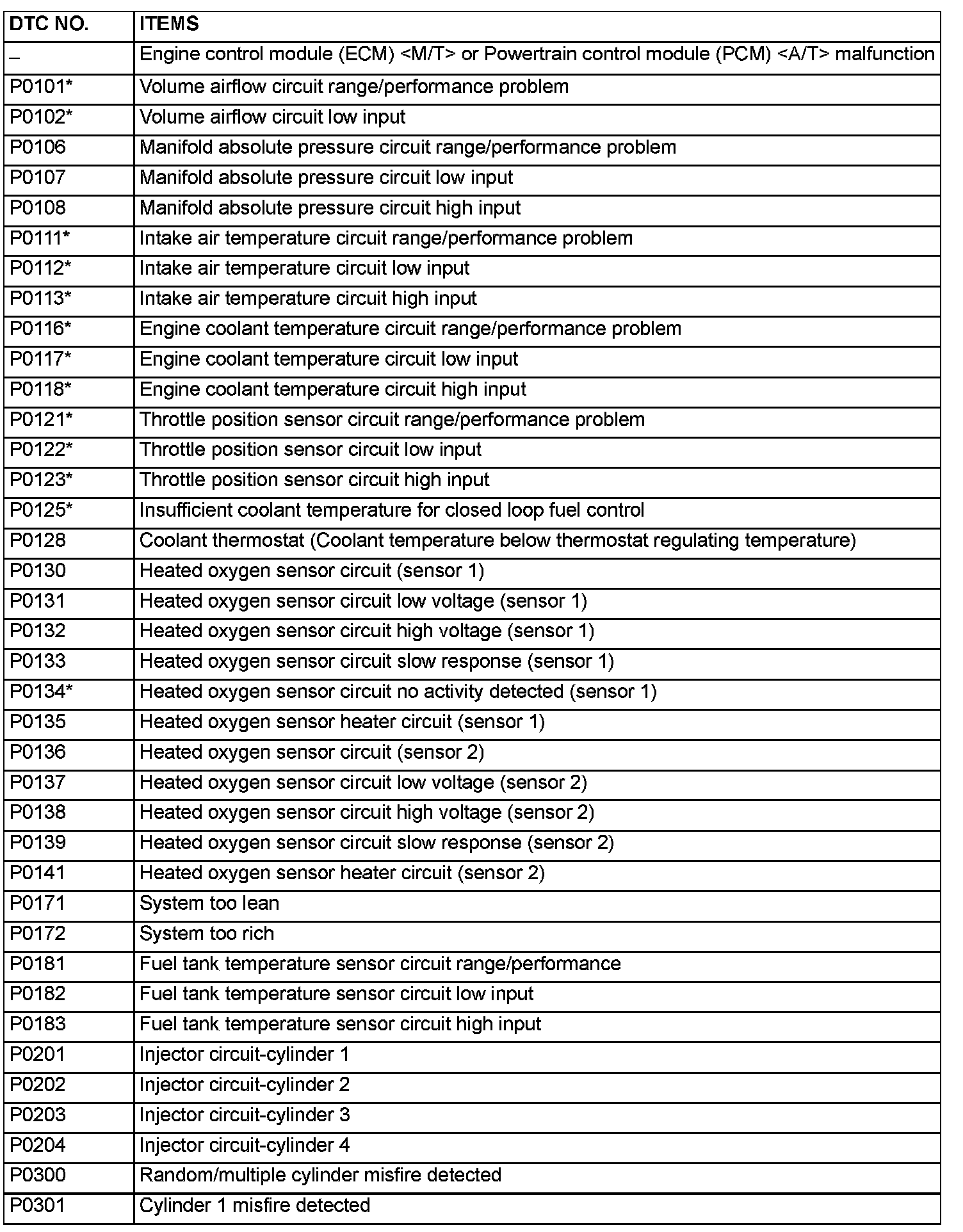

P0101 - P0301:

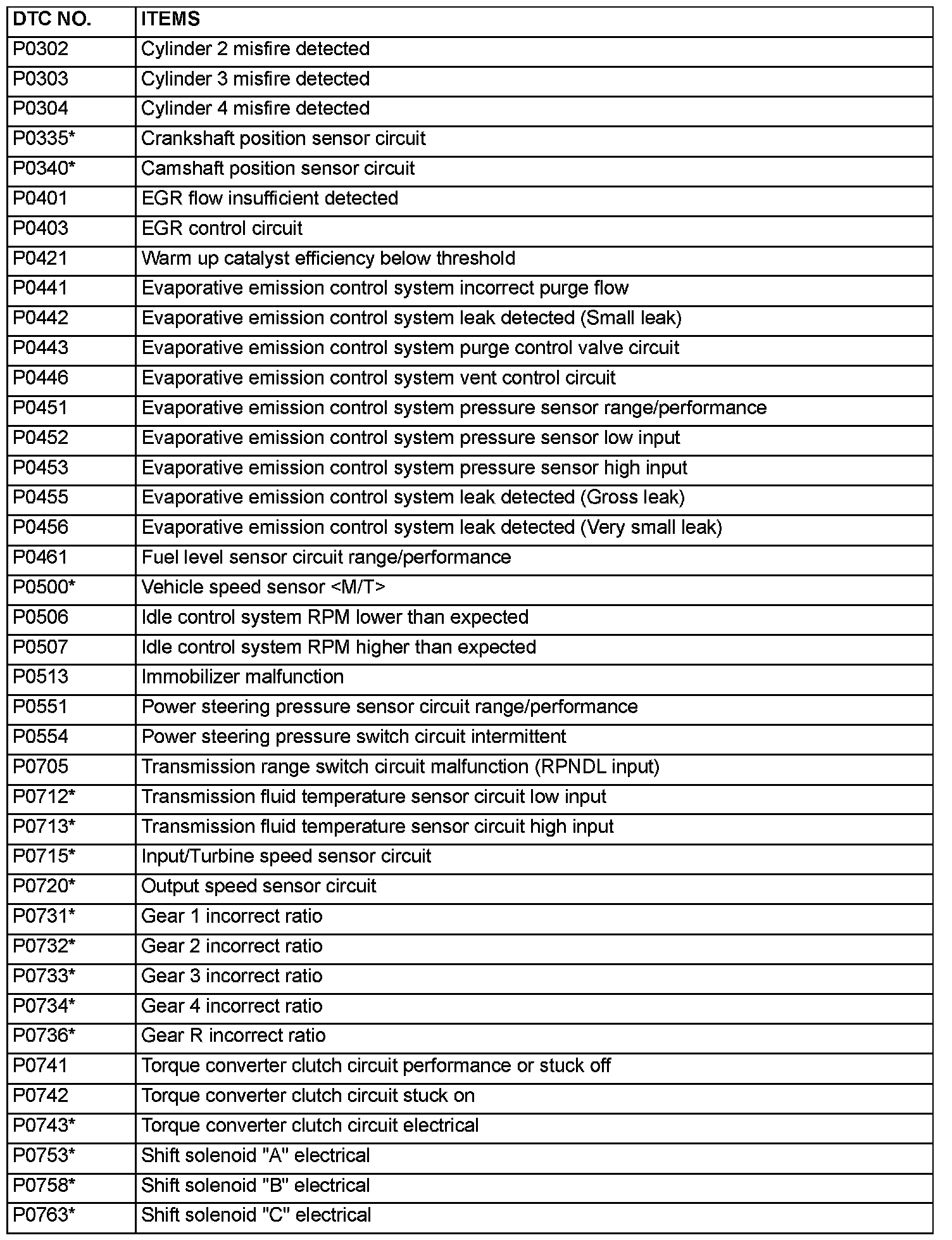

P0302 - P0763:

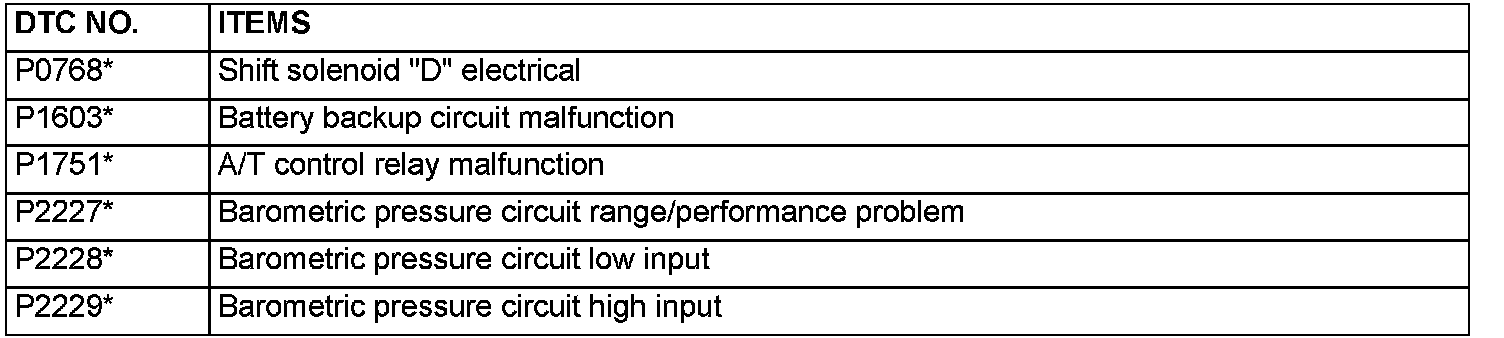

P0768 - P2229:

NOTE: If the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates because of a malfunction of the engine control module (ECM) [M/T] or powertrain control module (PCM) [A/T], transmission between scan tool and the ECM [M/T] or PCM [A/T] is impossible. In this case, the diagnostic trouble code (DTC) cannot be read.

NOTE: After the ECM [M/T] or PCM [A/T] has detected a malfunction, the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates when the engine is next turned on and the same malfunction is re-detected. However, for items marked with a "*" in the DTC NO column, the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates on the first detection of the malfunction.

NOTE: After the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates, it will be switched off under the following conditions.
- When the ECM [M/T] or PCM [A/T] monitored the power train malfunction three times* it met set condition requirements, it detected no malfunction. *: In this case, "one time" indicates from engine start to stop.
- For misfiring or a fuel trim malfunction, when driving conditions (engine speed, engine coolant temperature, etc.) are similar to those when the malfunction was first recorded.

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second closest to the engine.
