Inspection Procedure 7

INSPECTION PROCEDURE 7: Heat

DIAGNOSIS

STEP 1. Check the oil level.

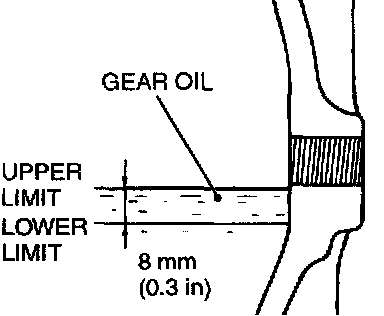

Remove the filler plug and check the gear oil level





Q: Is the gear oil level more than 8 mm (0.3 inch) below the bottom of the filler plug hole?
YES: Check the oil leakage from differential carrier, and repair if necessary. Then, refill Hypoid gear oil MITSUBISHI Genuine Gear Oil Part No 8149630. Then go to Step 3.
NO: Go to Step 2.

STEP 2. Check for excessive gear backlash.
Q: Is the gear backlash correct?
YES: Go to Step 3
NO: Adjust the backlash. Then go to step 3.

STEP 3. Retest the system.
Q: Is the heat eliminated?
YES: The procedure is complete.
NO: Start over at Step 1.
