Fluid - Differential: Testing and Inspection

GEAR OIL LEVEL CHECK
1. Remove the filler plug.

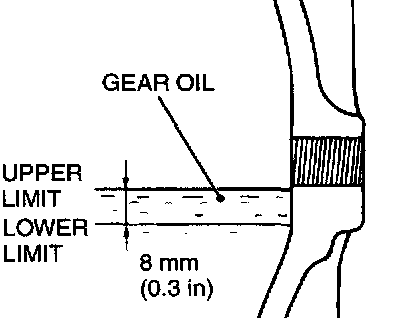

2. Check that gear oil level is not 8 mm (0.3 inch) below the bottom of filler plug hole.
Specified gear oil: Hypoid gear oil MITSUBISHI Genuine Gear Oil Part No. 8149630 EX or equivalent
3. Tighten the filler plug to the specified torque.
Tightening torque: 49 ± 9 Nm (37 ± 6 ft. lbs.)
