Clutch Slave Cylinder: Service and Repair

DISASSEMBLY AND REASSEMBLY Manual Transmission/Transaxle

DISASSEMBLY SERVICE POINT
<> PISTON ASSEMBLY REMOVAL

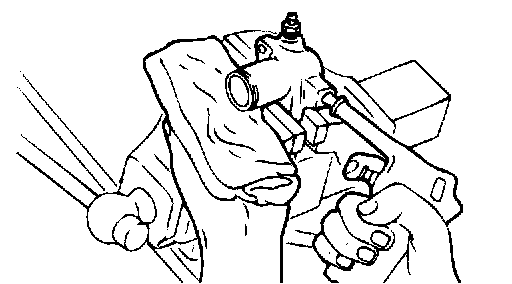

1. Cover with a shop towel to prevent the piston from popping out.

CAUTION: Apply compressed air slowly to prevent brake fluid from splashing.

2. Apply the compressed air into the tube mounting hole to remove the piston assembly.

ASSEMBLY SERVICE POINT
>>A<< PISTON ASSEMBLY INSTALLATION

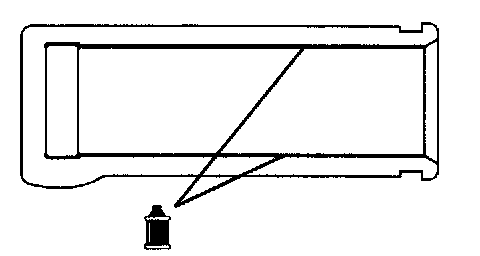

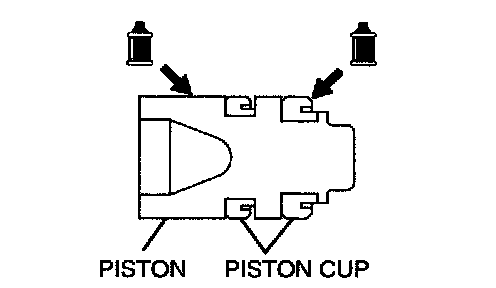

1. Apply brake fluid DOT3 or DOT4 to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.

CLUTCH RELEASE CYLINDER INSPECTION

PISTON CUP
Check the lip of piston cup for scratch. If it is scratched, check the inner surface of the release cylinder for scratches.

RELEASE CYLINDER
Check the inner surface of the release cylinder for scratches or abnormal wear. Replace if necessary.
