Overhaul

DISASSEMBLY AND ASSEMBLY

CAUTION: Do not disassemble the piston assembly.

CLUTCH MASTER CYLINDER
ASSEMBLY SERVICE POINT
>>A<< PUSHROD ASSEMBLY INSTALLATION

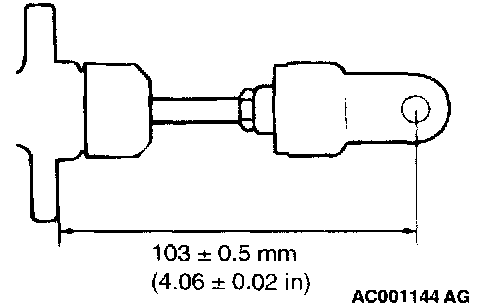

Set the length of the pushrod assembly to the dimension shown to make the adjustment of the clutch pedal easier.

INSPECTION
^ Check inside the cylinder body for rust and scars.
^ Check the piston cup for wear and deformation.
^ Check the piston for rust and scars.
^ Check the pipe connection for clogging.
