Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Testing and Inspection
>>
Brush Holder Check
Brush Holder Check

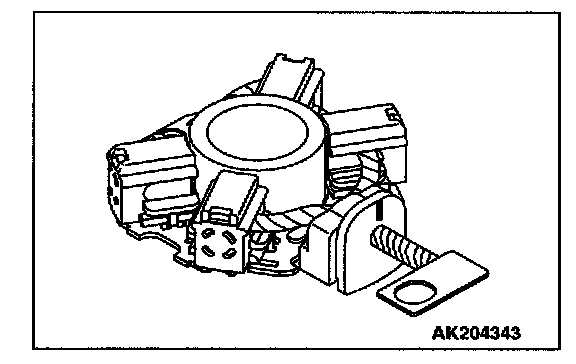

Brush Holder
Push the brush into the
brush holder
to make sure that the spring is working on the brush.
If the spring is not working, replace the
brush holder
.
