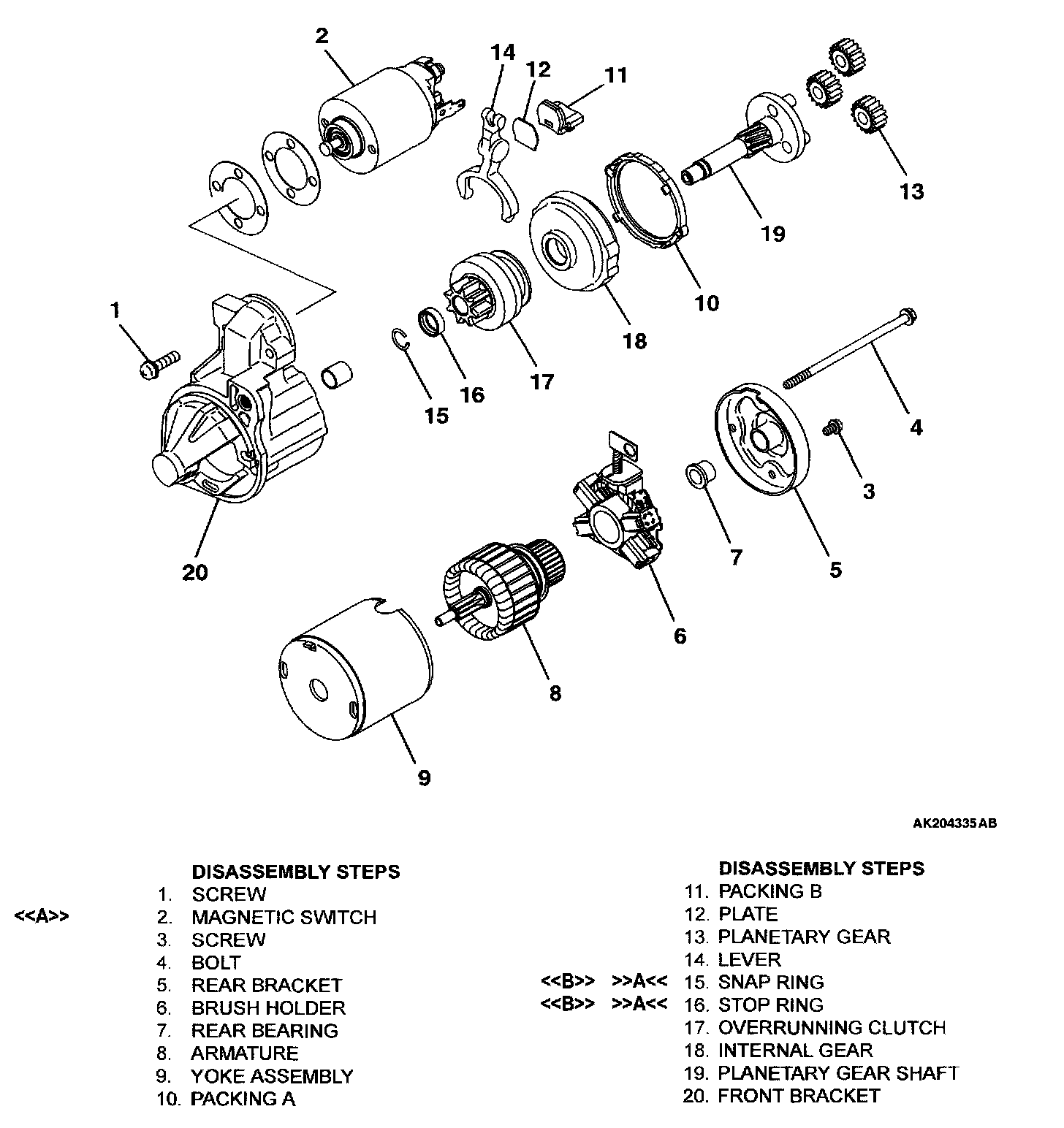

Disassembly and Assembly
Starter Motor:
DISASSEMBLY SERVICE POINTS
<> MAGNETIC SWITCH REMOVAL
CAUTION: Do not clamp the yoke assembly with a vise.

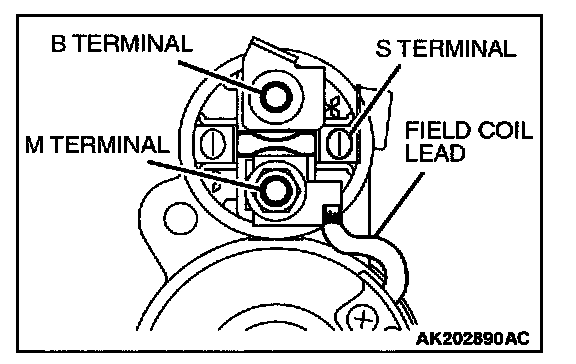

Disconnect the lead from the M terminal of the magnetic switch.
<> SNAP RING/STOP RING REMOVAL
Snap Ring/Stop Ring Removal:
1. Apply a long socket wrench of an appropriate size to the stop ring and strike the wrench to drive out the stop ring toward the pinion gear side.

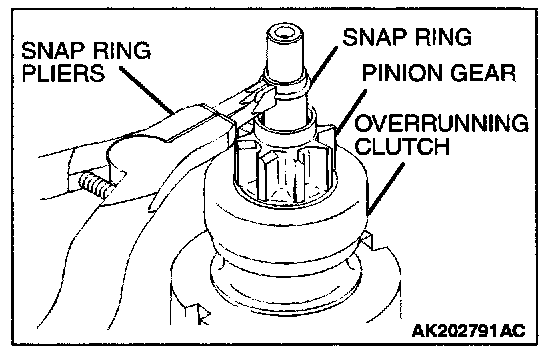

2. Remove the snap ring with snap ring pliers, then remove the stop ring and overrunning clutch.
