Seat Belt: Specifications

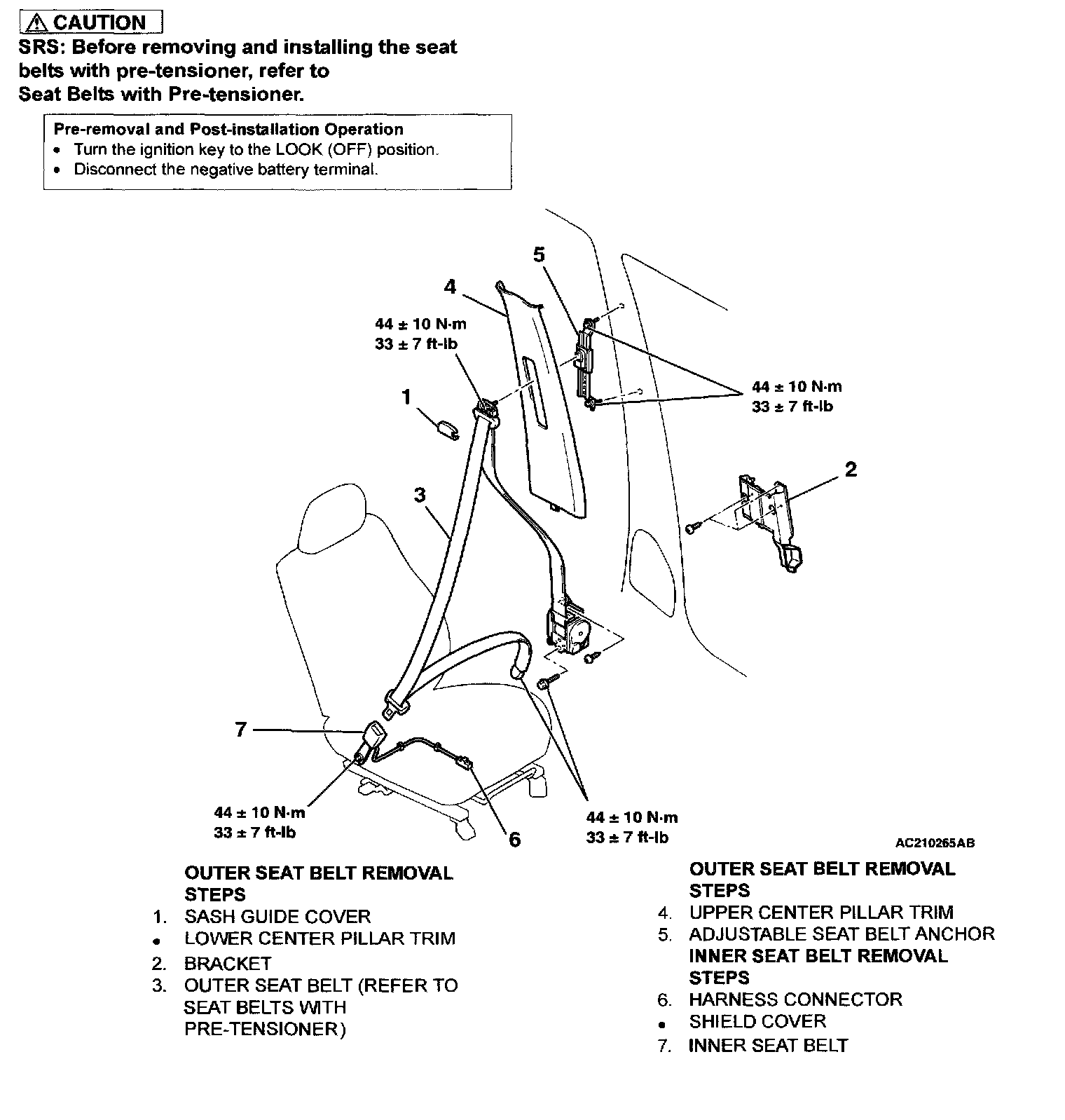

Front Seat Belts:

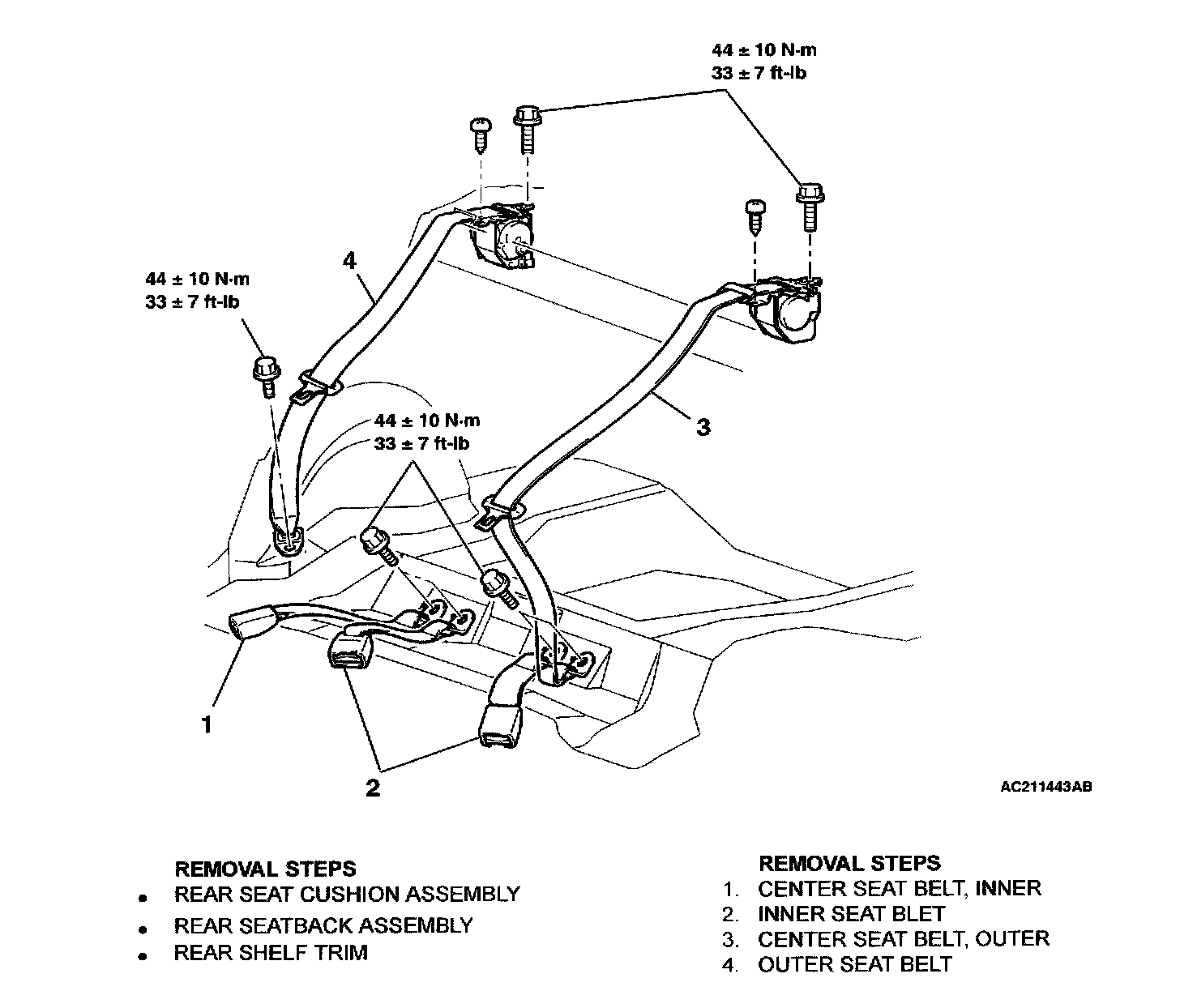

Rear Seat Belt:

ITEM SPECIFICATION

FRONT SEAT BELT
Adjustable seat belt anchor bolt 44 ± 10 N.m (33± 7 ft-lb)
Inner seat belt bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Outer seat belt bolt 44 ±10 N.m (33 ±7 ft-lb)

REAR SEAT BELT
Center seat belt, inner bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Center seat belt, outer bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Inner seat belt bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Outer seat belt bolt 44 ± 10 N.m (33 ± 7 ft-lb)
