Knock Sensor: Service and Repair

Knock Sensor:






REMOVAL SERVICE POINT







<> KNOCK SENSOR REMOVAL

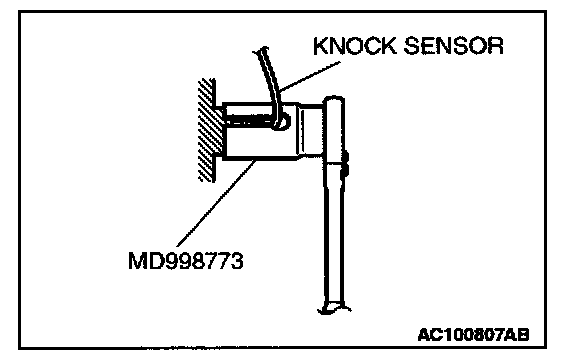

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT







<> KNOCK SENSOR INSTALLATION

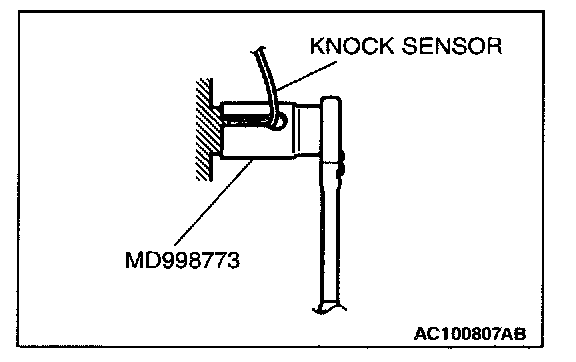

Use special tool MD998773 to install the knock sensor.
