Fuel Injector Resistor: Testing and Inspection

INJECTOR RESISTOR CHECK




1. Disconnect the injector resistor connector.

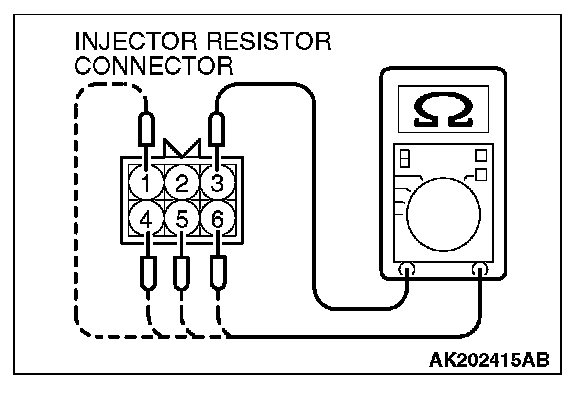

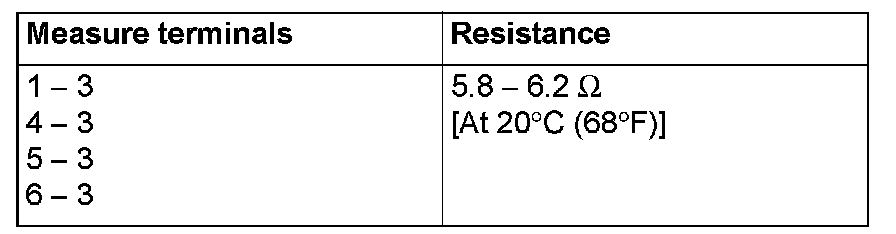

2. Measure the resistance between terminals.
3. If the resistance is out of specification, replace the injector resistor.
