Evaporative Check Valve: Testing and Inspection

CHECK VALVE CHECK

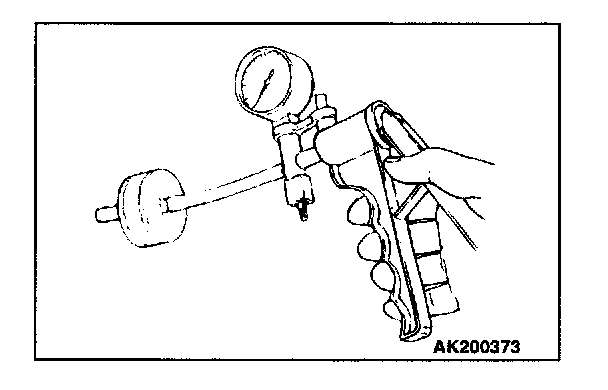

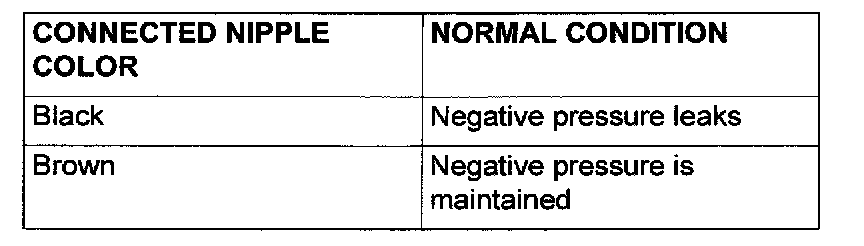

Connect a hand vacuum pump to the check valve, apply negative pressure and check the airtightness.
