Data List Reference Table & Normal Scan Data Values

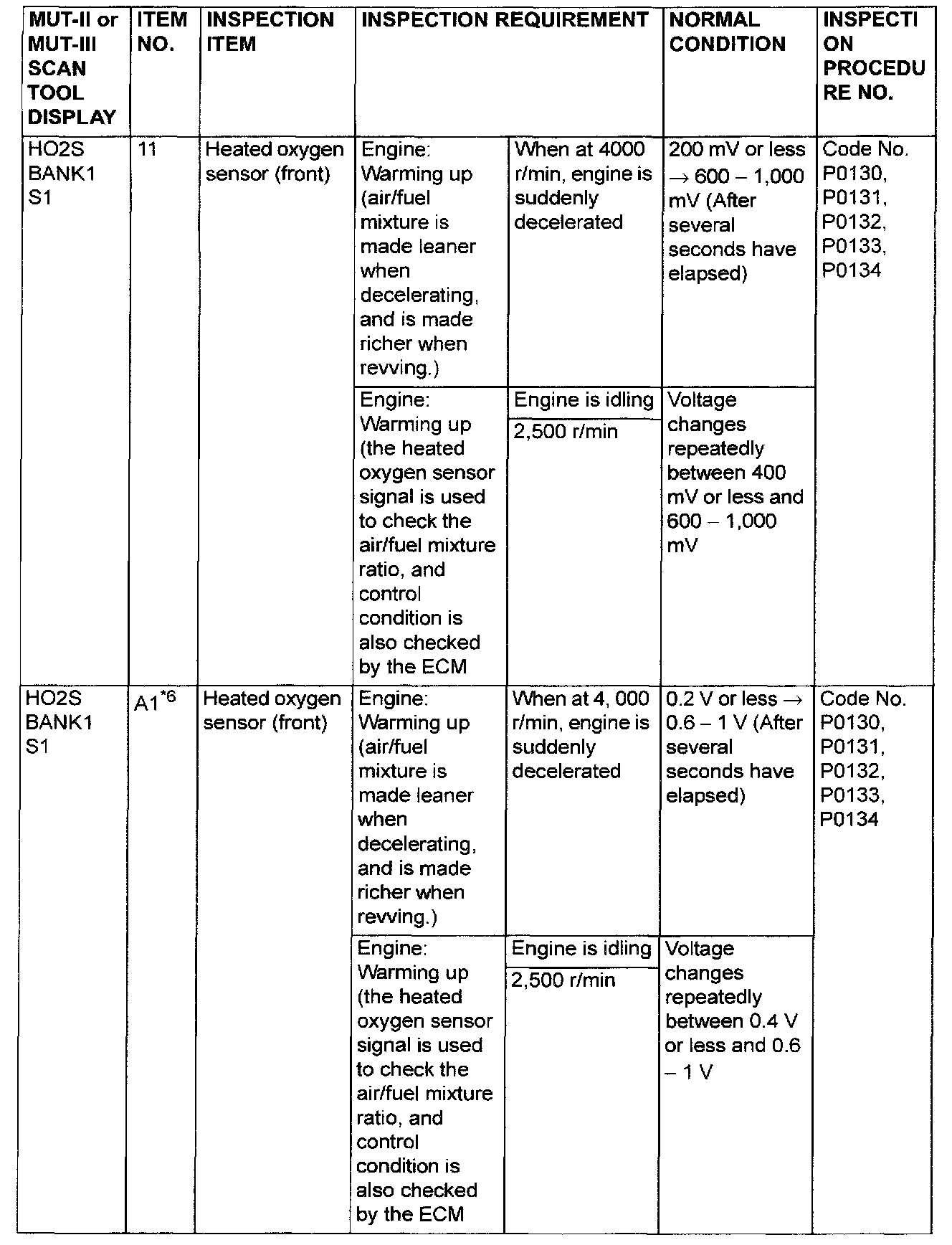

DATA LIST REFERENCE TABLE

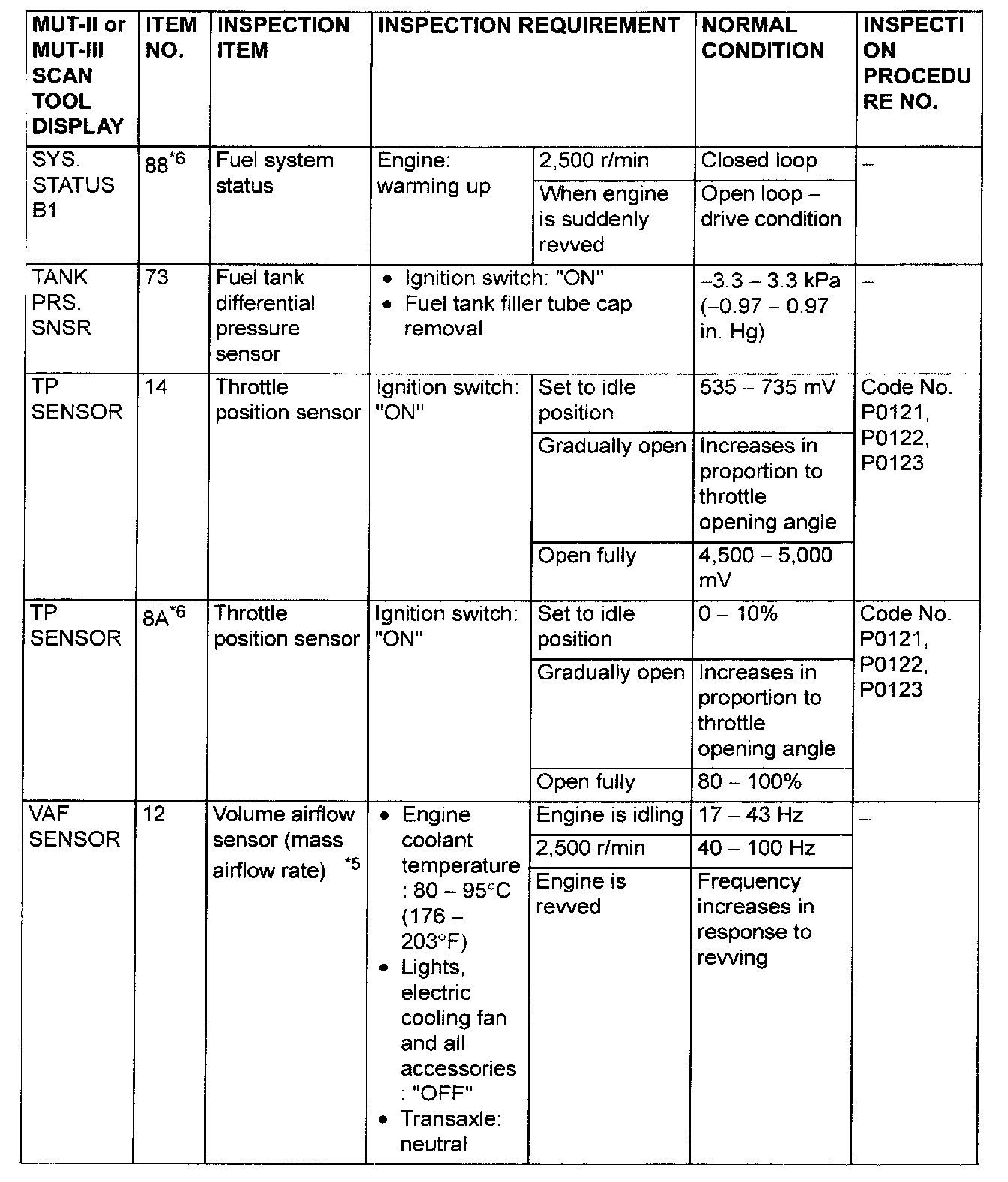

Data List Reference Table Part 1:

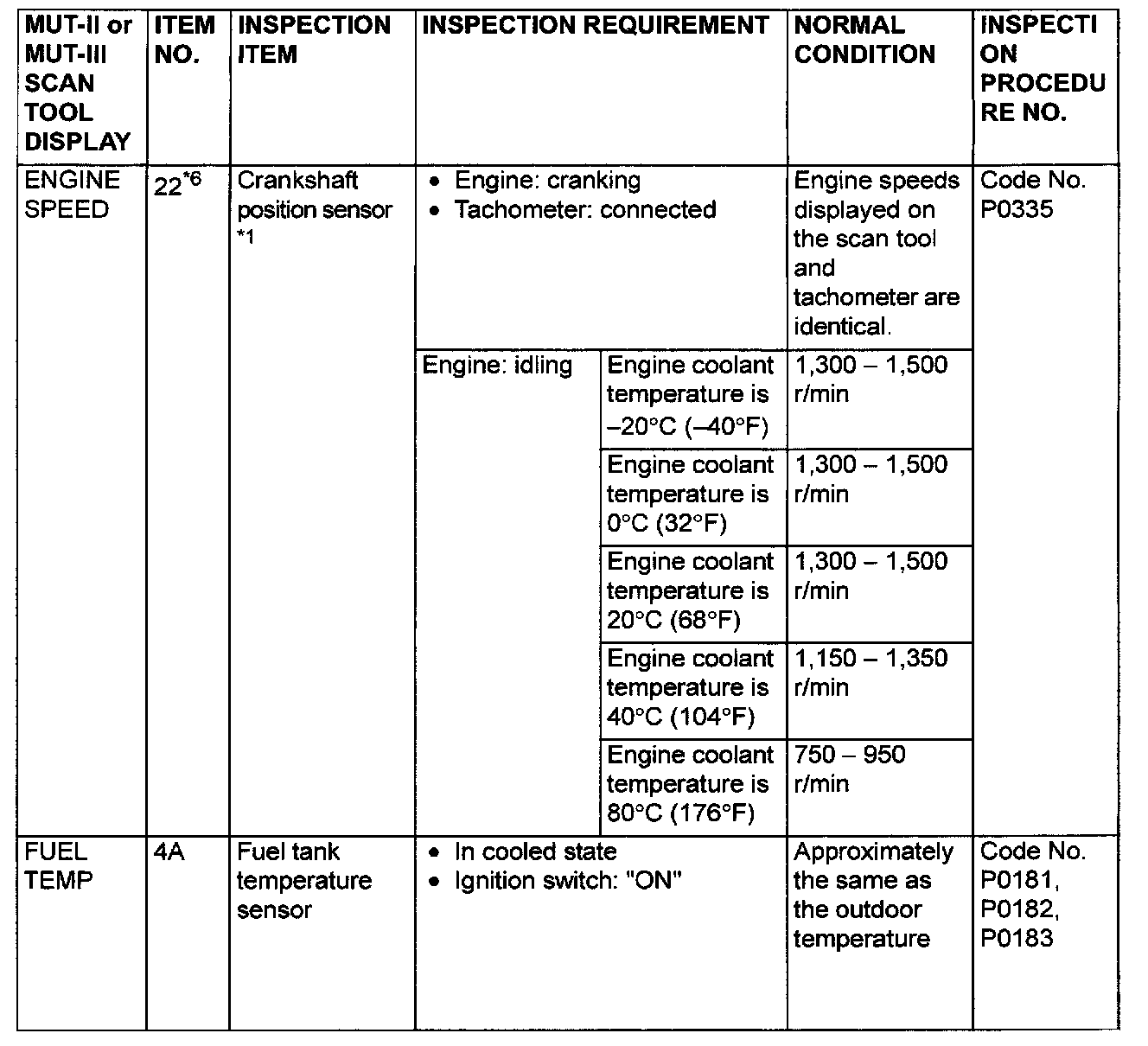

Data List Reference Table Part 2:

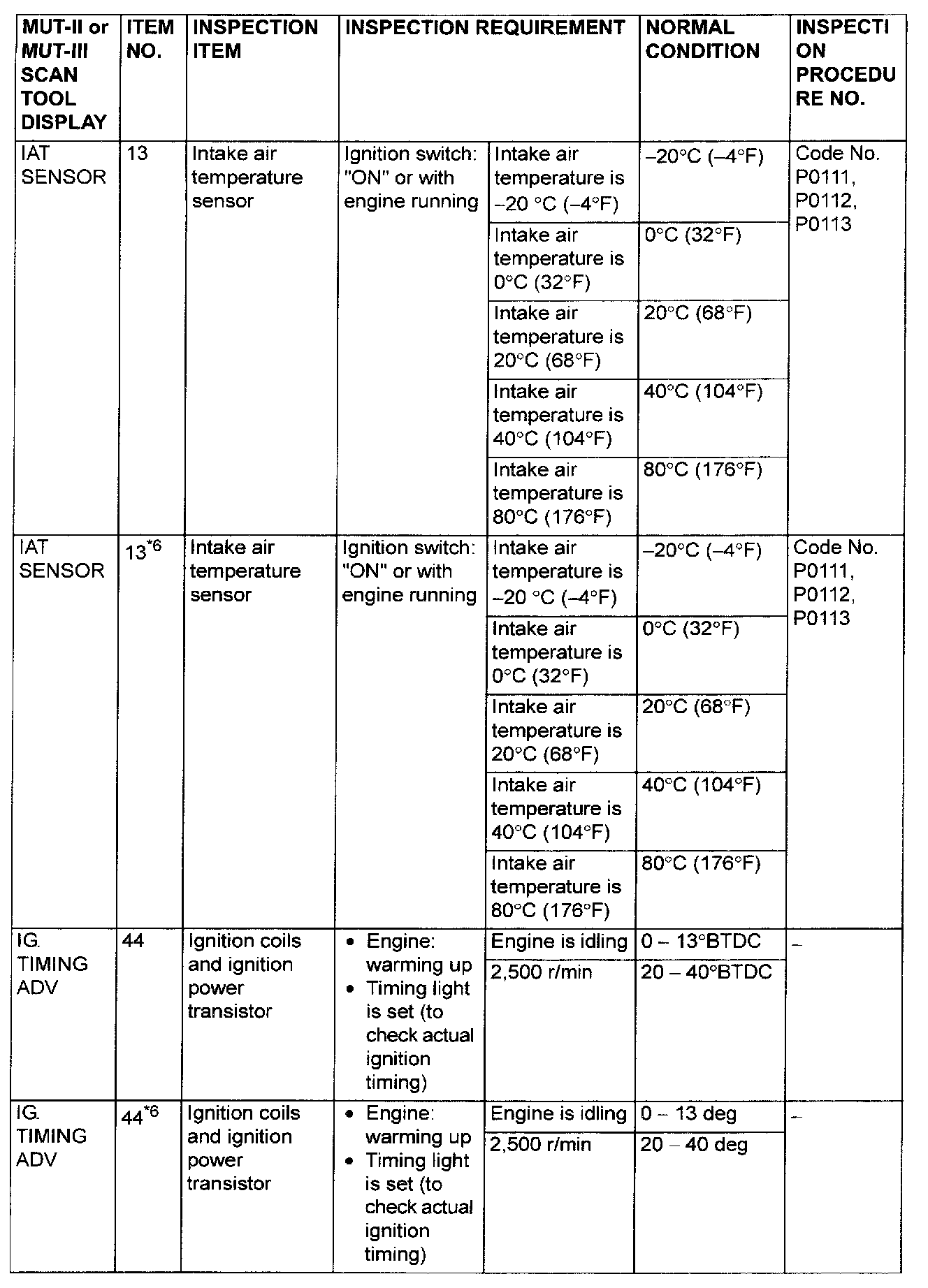

Data List Reference Table Part 3:

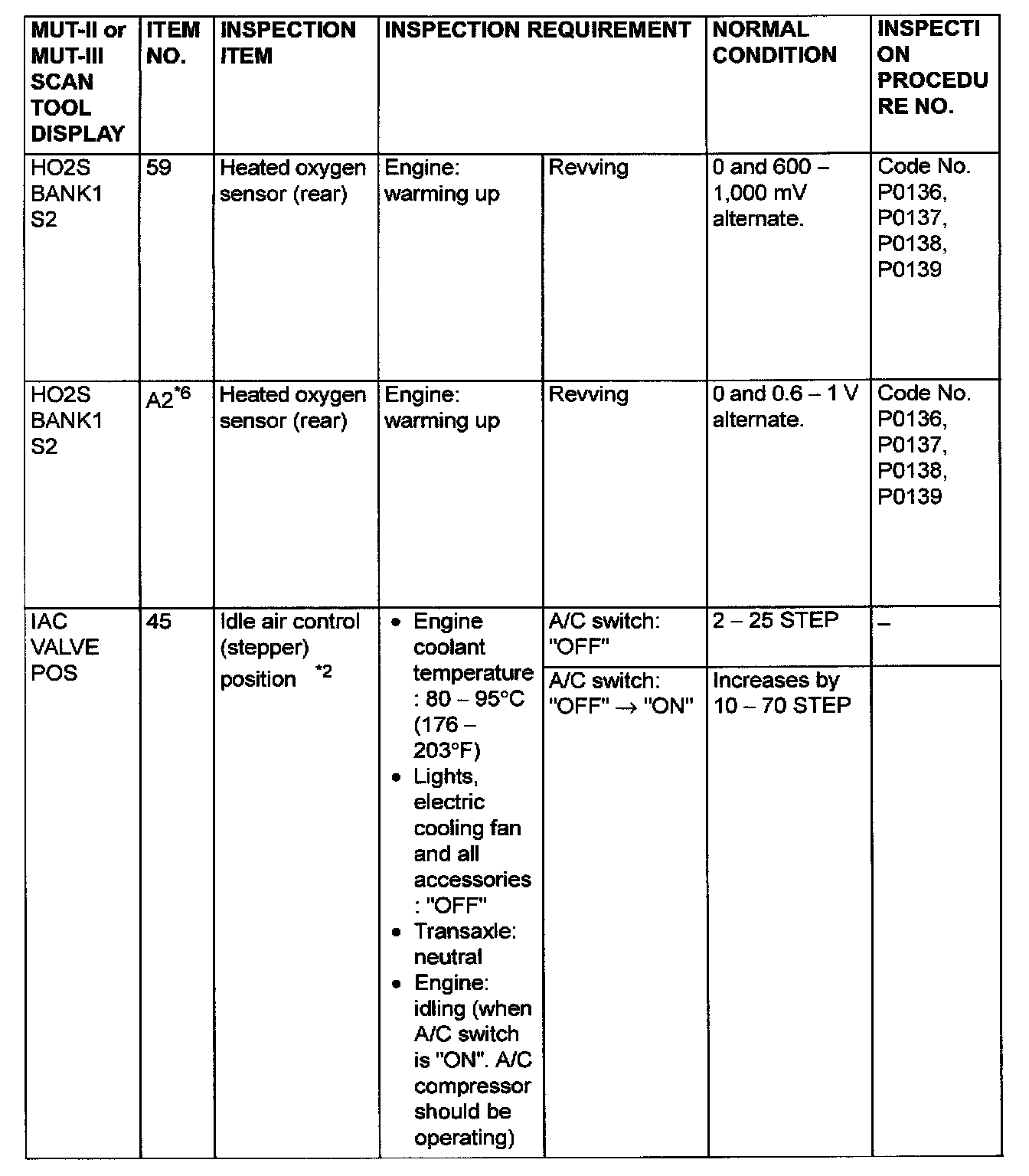

Data List Reference Table Part 4:

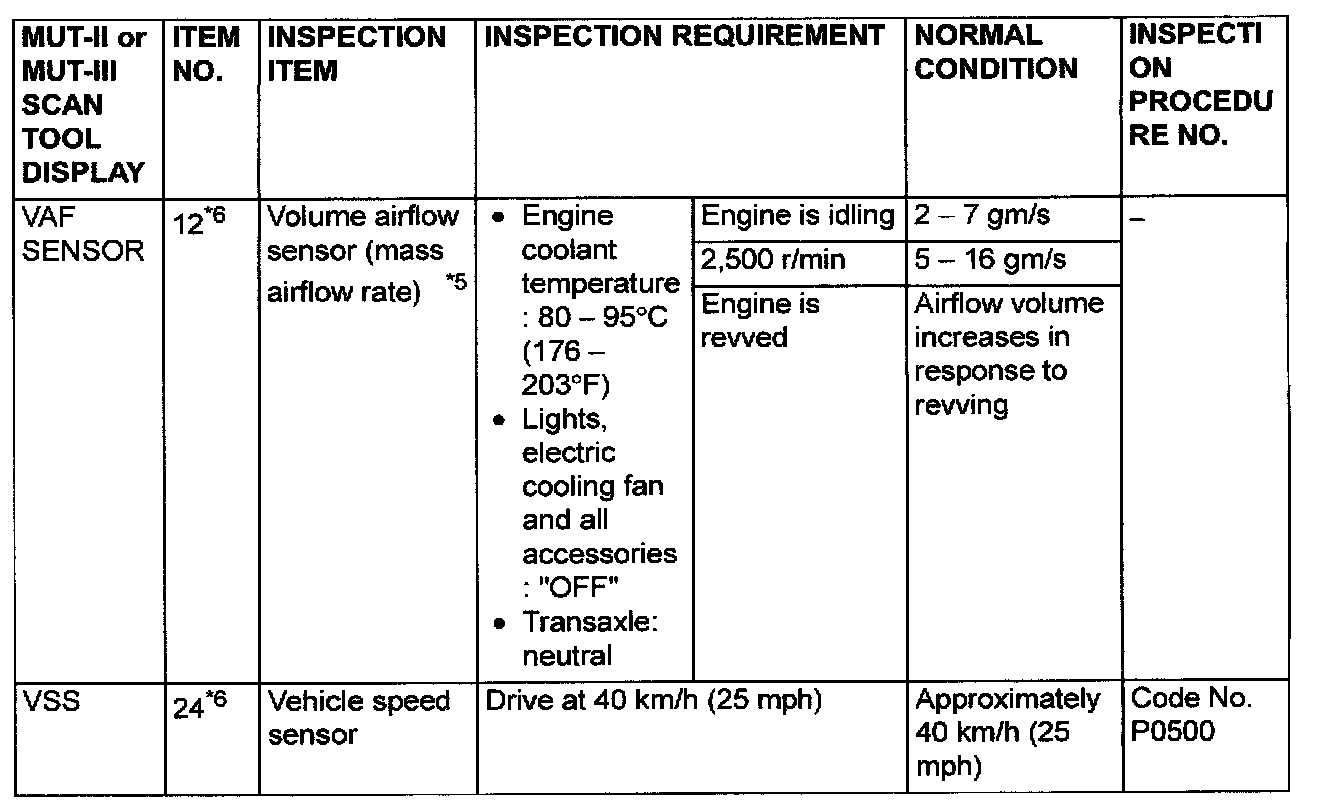

Data List Reference Table Part 5:

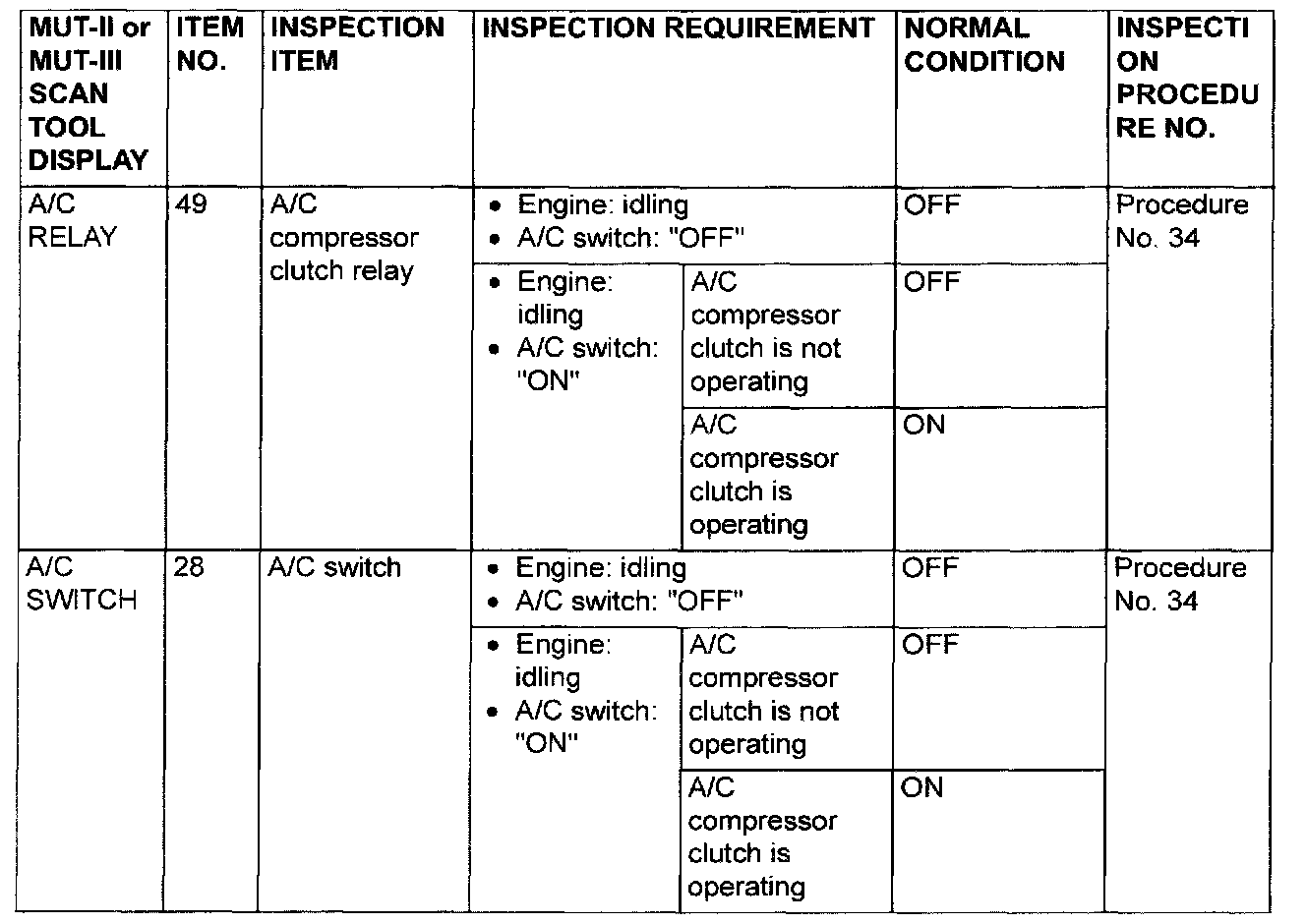

Data List Reference Table Part 6:

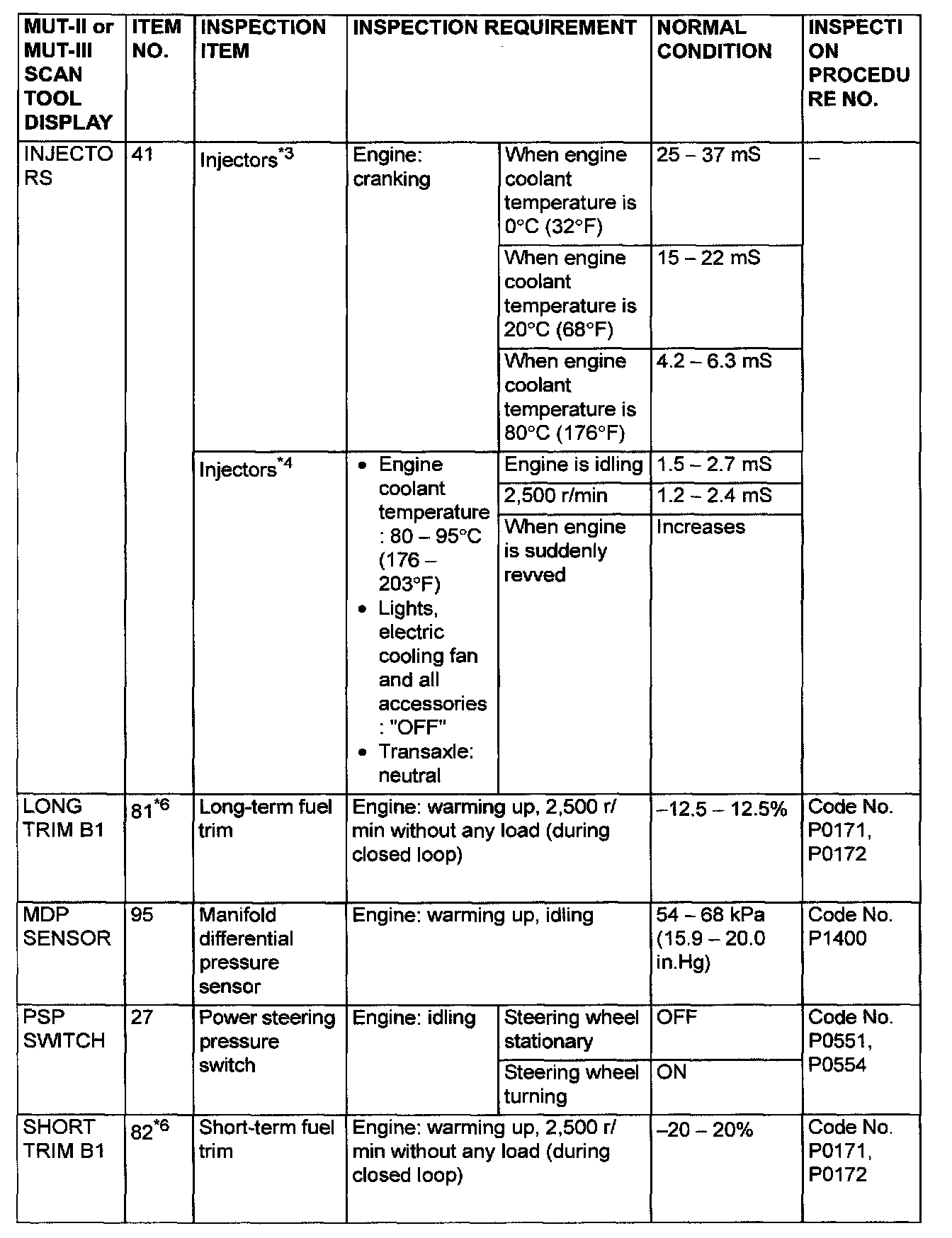

Data List Reference Table Part 7:

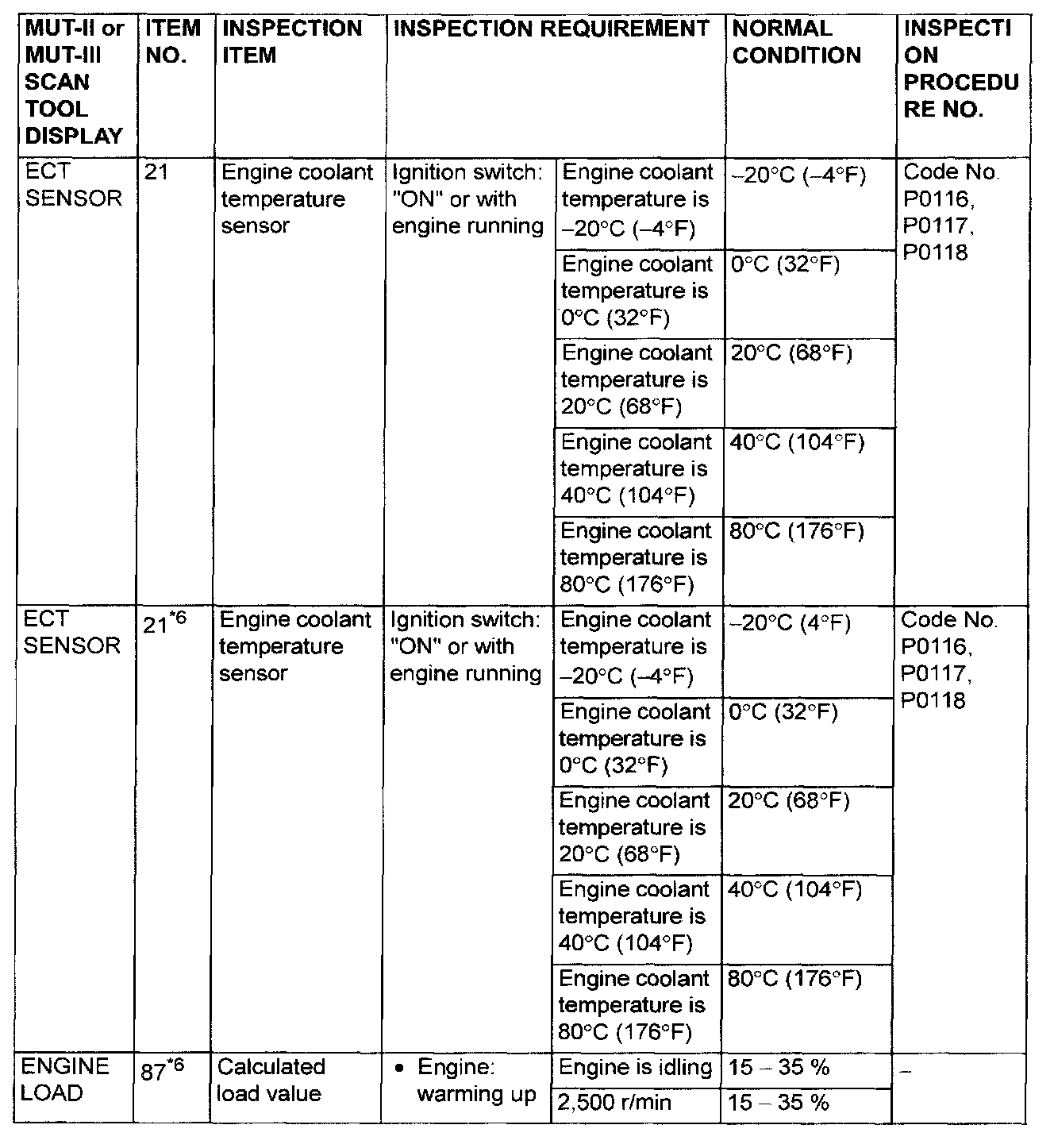

Data List Reference Table Part 8:

Data List Reference Table Part 9:

Data List Reference Table Part 10:

CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: "1: If the idle speed is lower than the standard value on a very cold engine [approximately -20 °C (-4 °F)] even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.

NOTE: *2: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.

NOTE: *3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE: *4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

NOTE: *5: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume airflow sensor output frequency is sometimes 10% higher than the standard frequency.

NOTE: *6: GST items. [Data list items consist of MUT-II or MUT-III items and GST items. GST items can be accessed through the use of a general scan tool (GST). When scan tool MB991502 (MUT-II) or MB991958 (MUT-III sub assembly) is used, MUT-II or MUT-III items appear alphabetically; then, GST items appear alphabetically. The black and white characters of the GST items are inverted from the MUT-II or MUT-III items.]
