Fail-Safe Function Reference Table

FAIL-SAFE FUNCTION REFERENCE TABLE

Part 1:

Part 2:

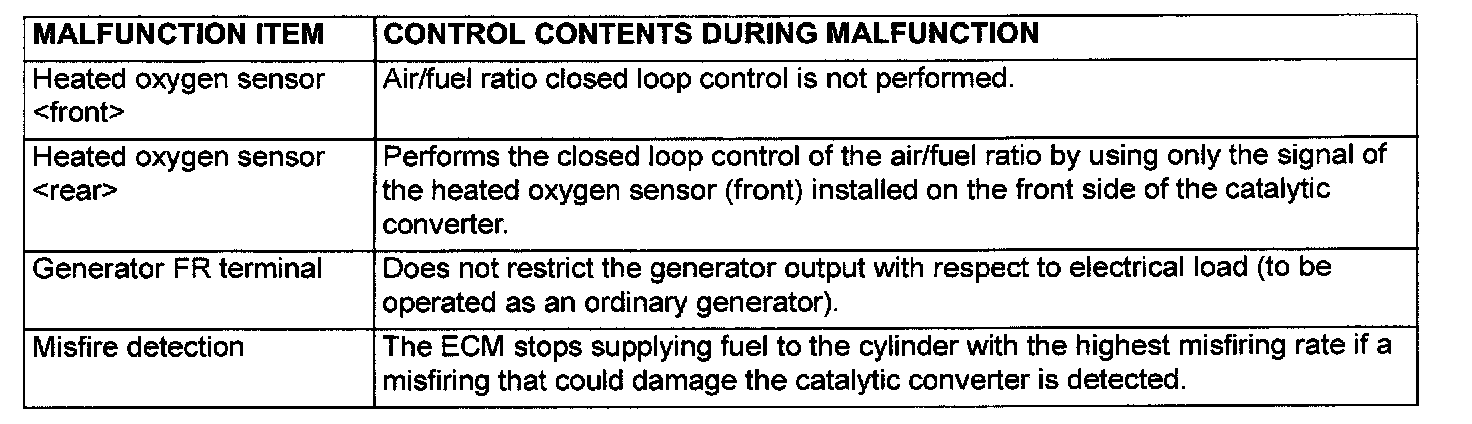

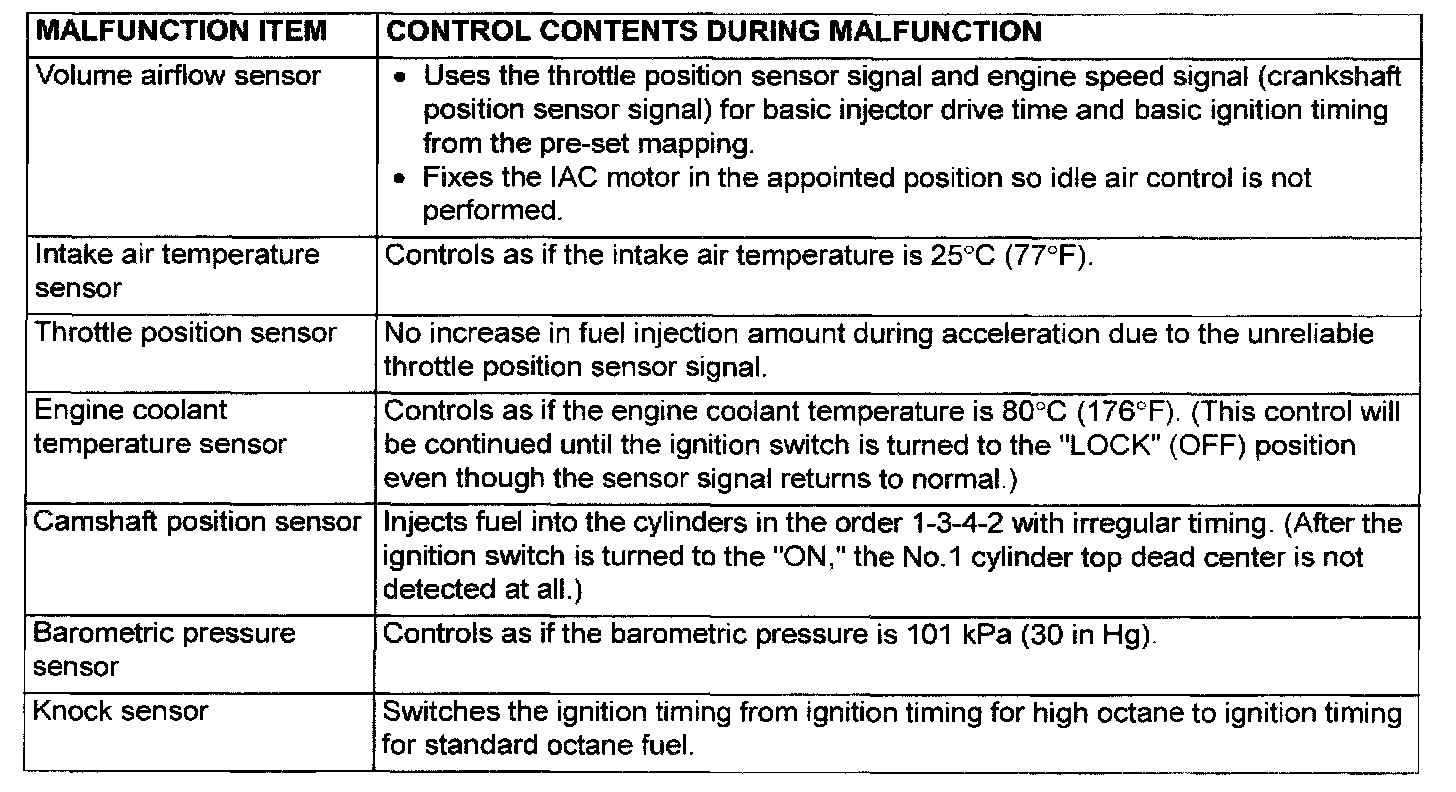

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the following defaults.
