Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
CHECK AT ECU TERMINAL

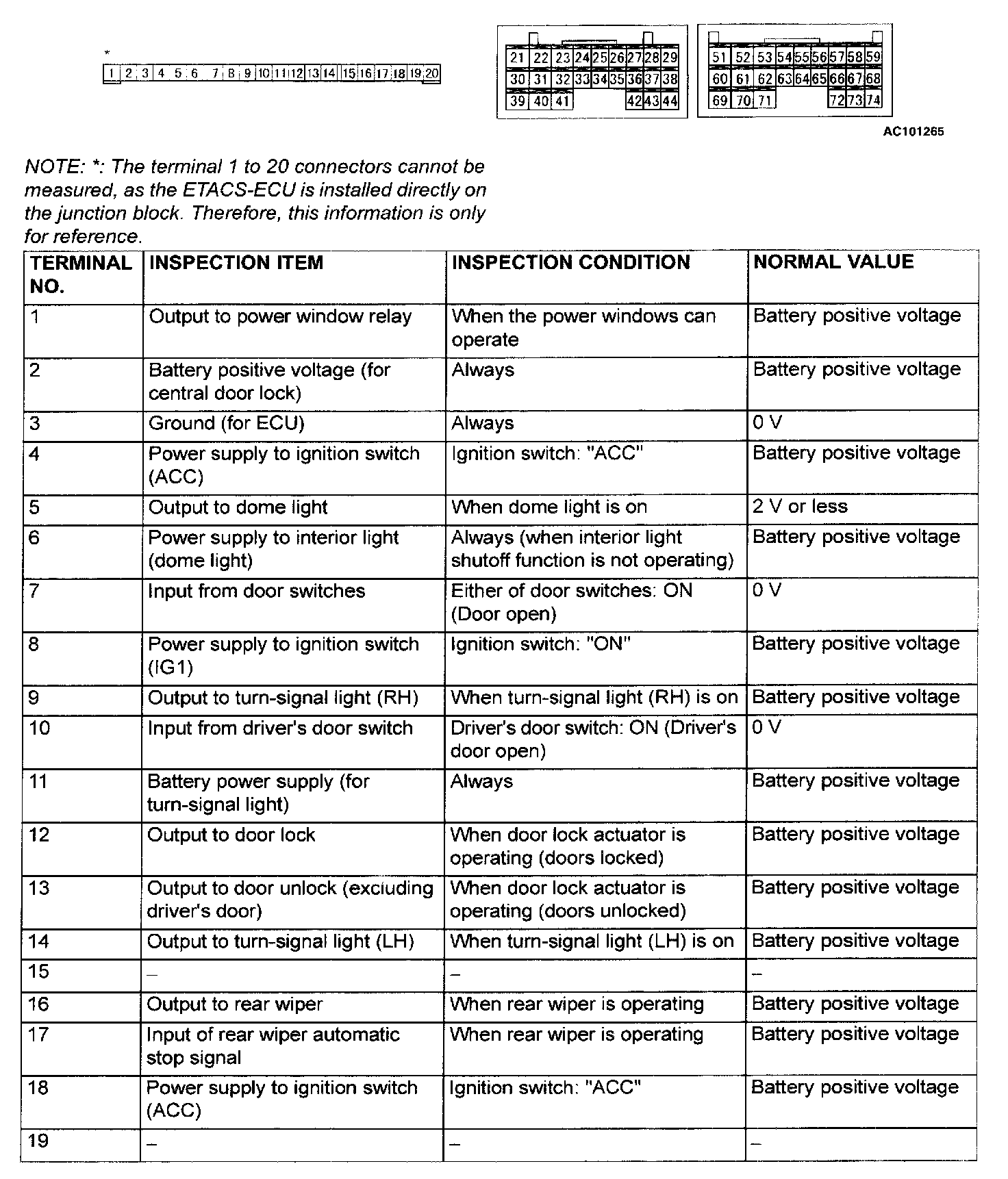

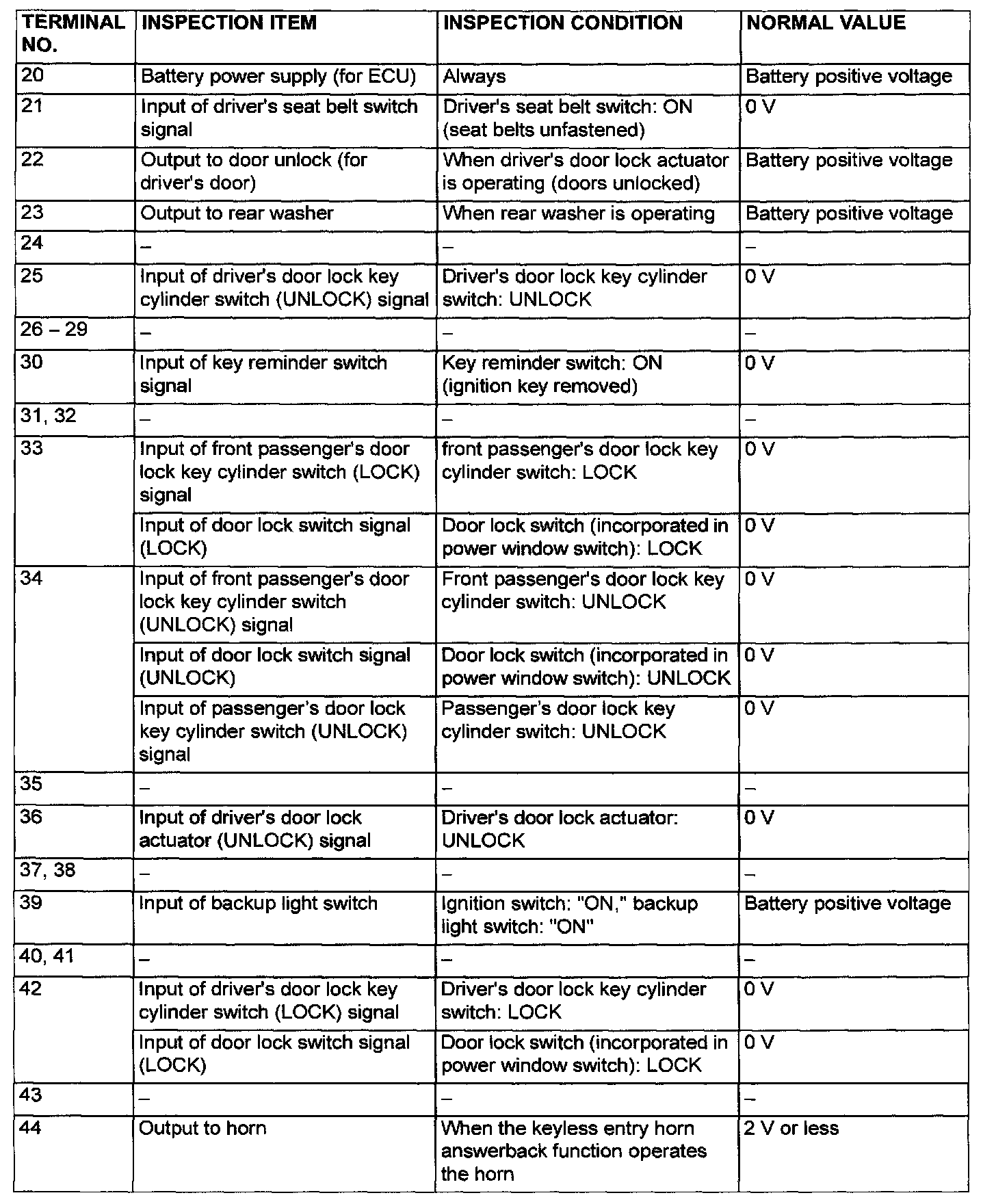

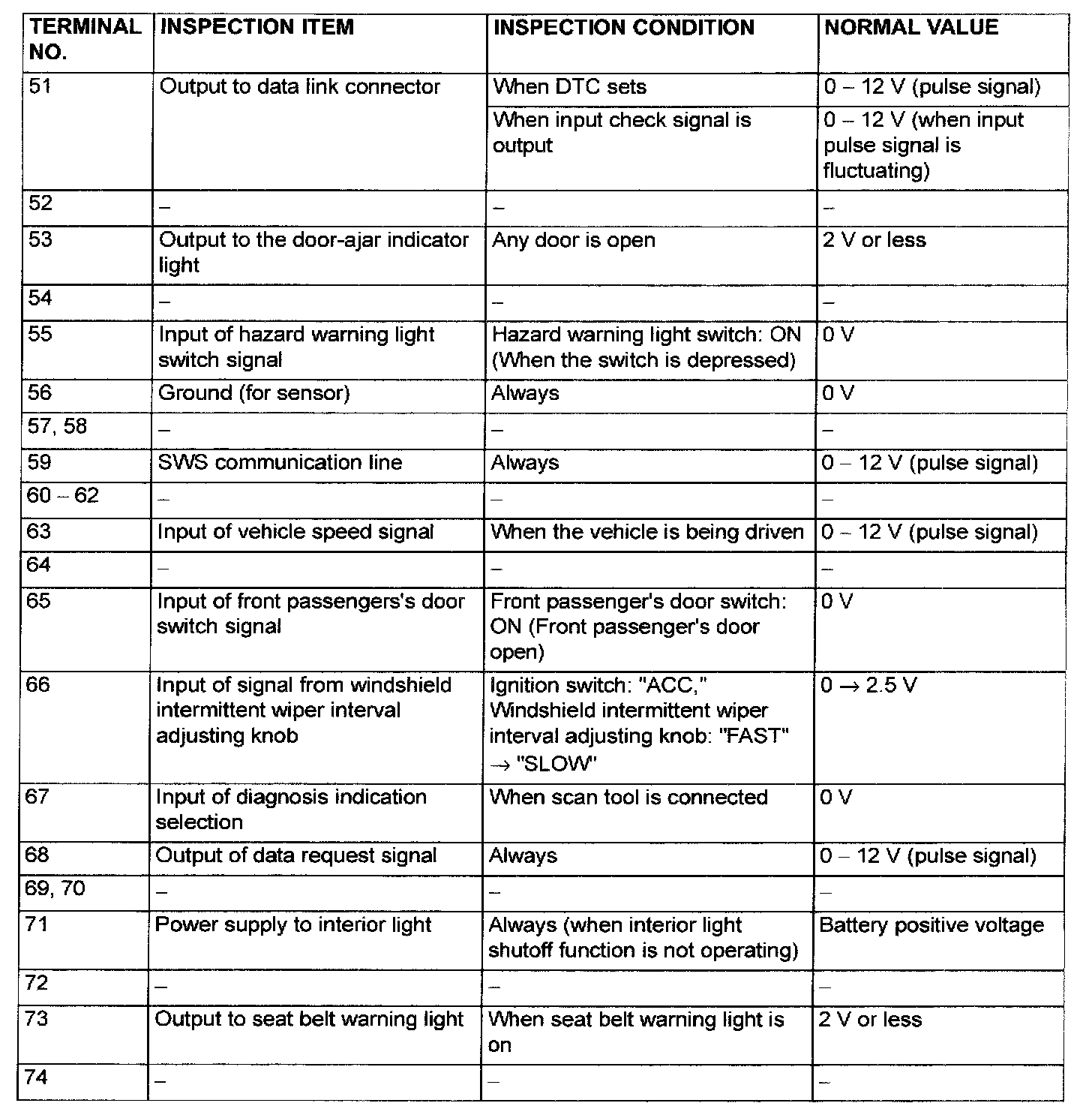

ETACS-ECU:
ETACS-ECU

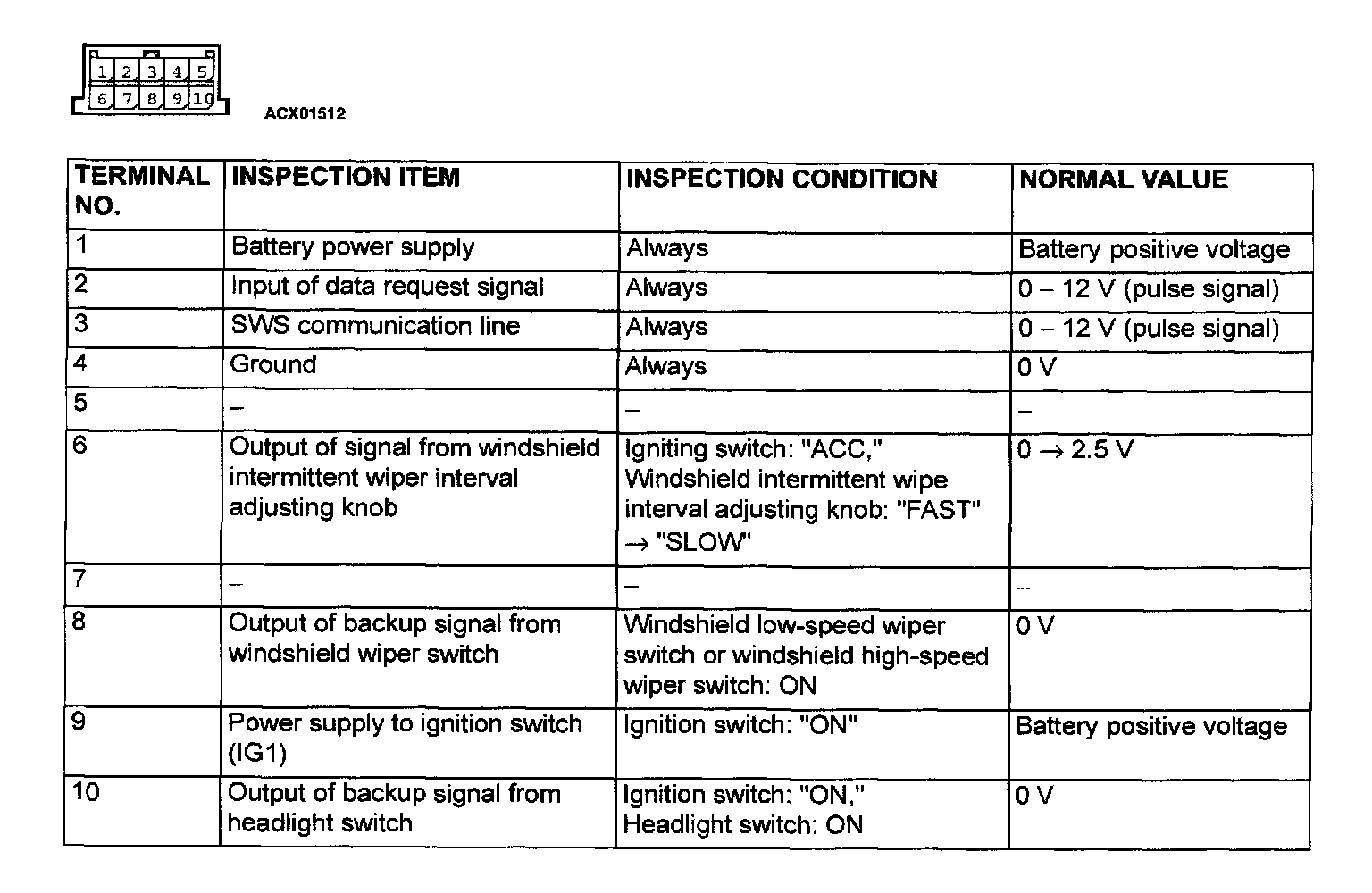

Column Switch:
COLUMN SWITCH

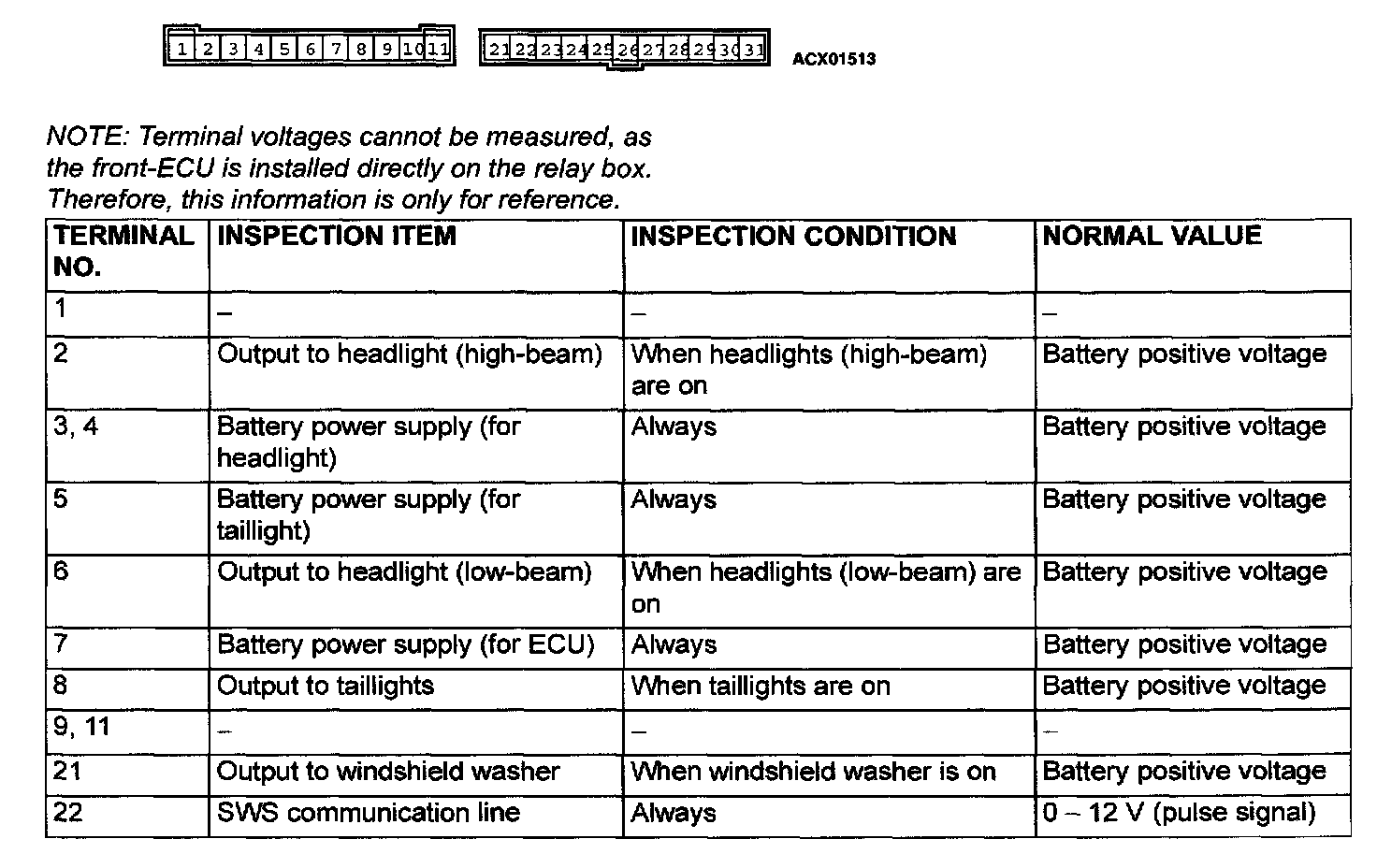

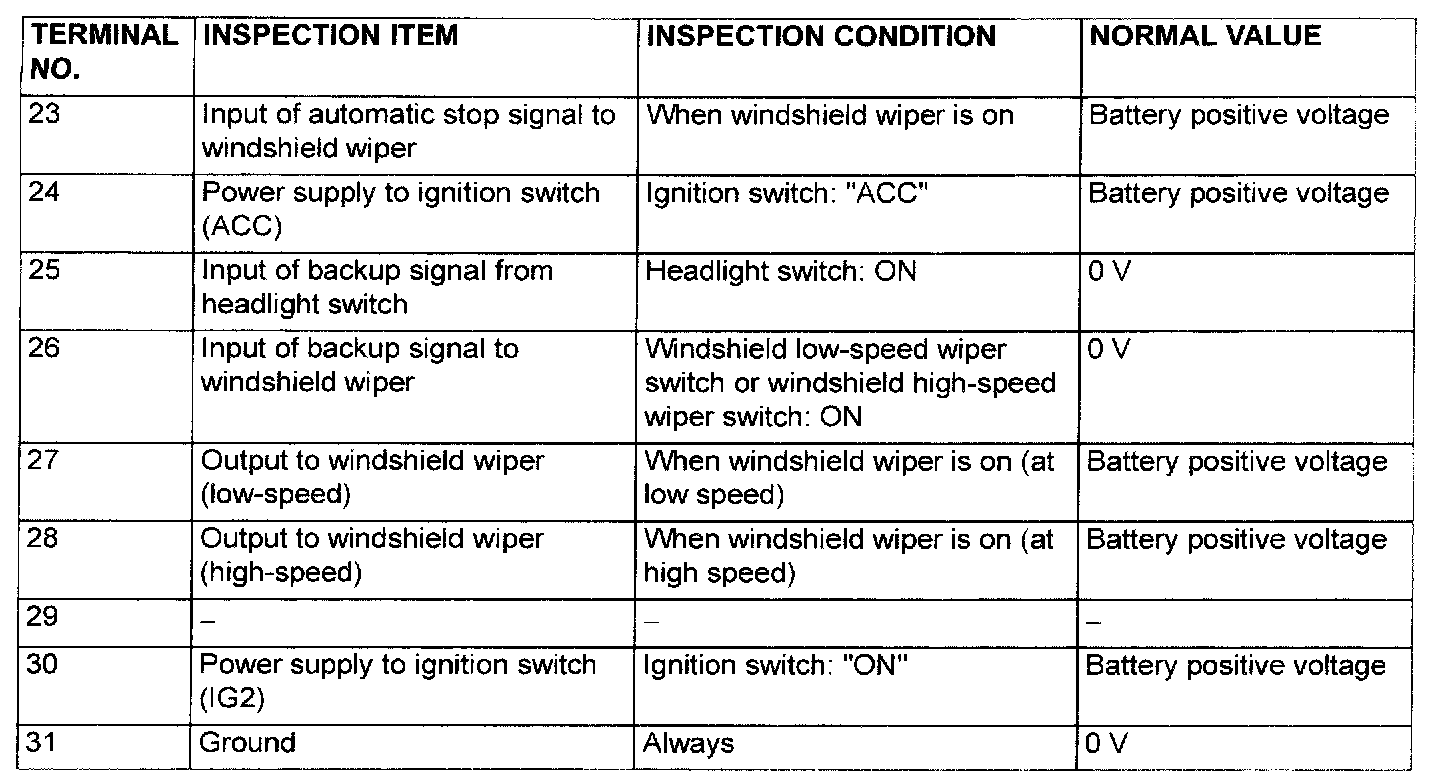

Front-ECU:
FRONT-ECU

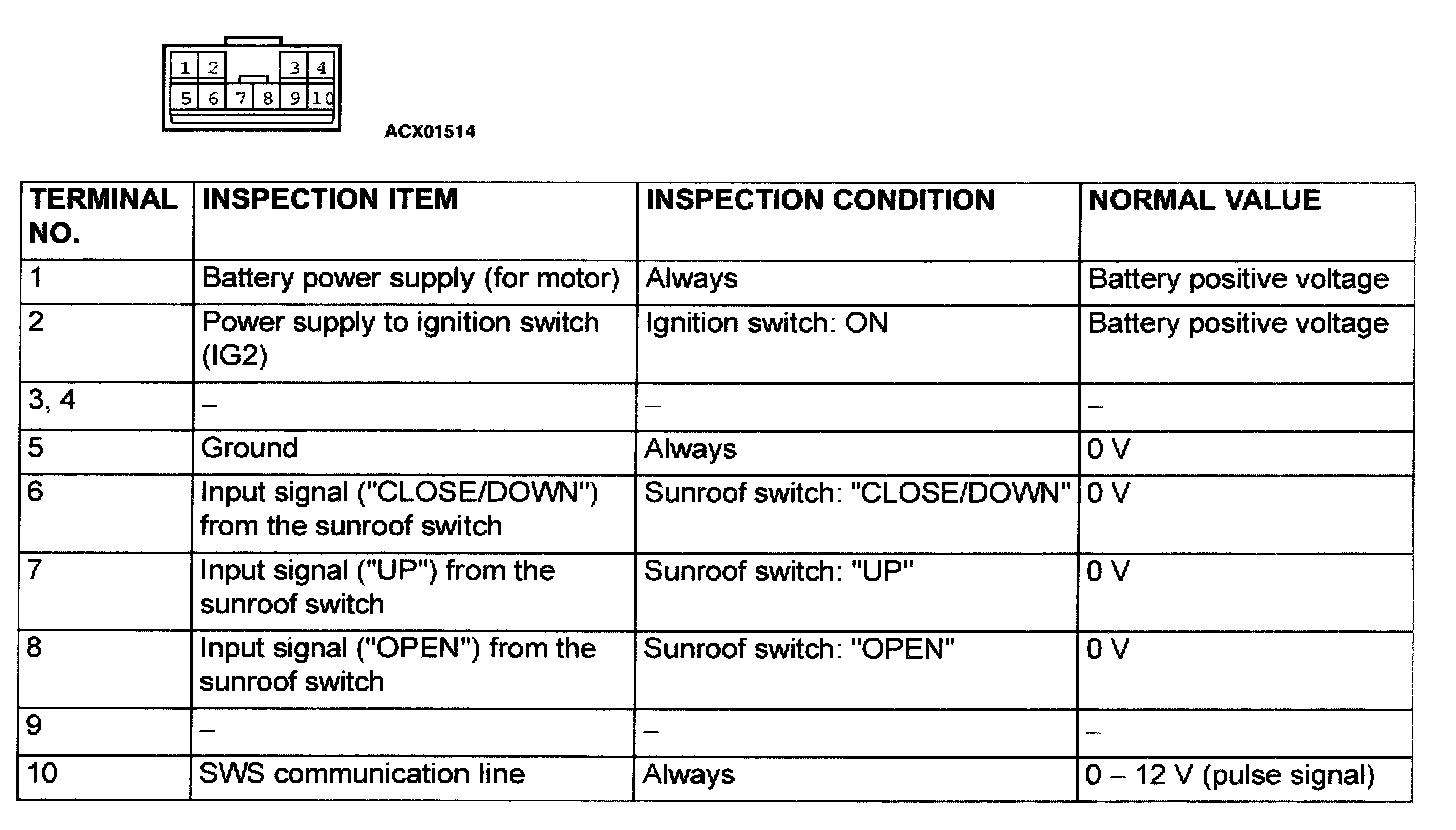

Sunroof Motor Assembly:
SUNROOF MOTOR ASSEMBLY
