Scan Tool MB991502
HOW TO CONNECT SWS MONITORRequired Special Tools:
- MB991502: Scan Tool (MUT-II)
- MB991496: Main unit
- MB991497: Test Harness (for communication)
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B
- MB991813: SWS monitor kit
- MB991806: SWS monitor cartridge
- MB991812: SWS monitor harness (for column-ECU)
- MB991922: Probe harness
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502. Connect special tool MB991497 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on scan tool MB991502.

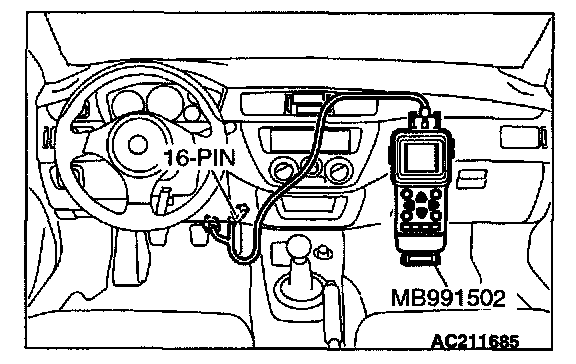

1. Connect scan tool MB991502 to the data link connector.
2. Remove the column cover. Refer to Instrument Panel Assembly.

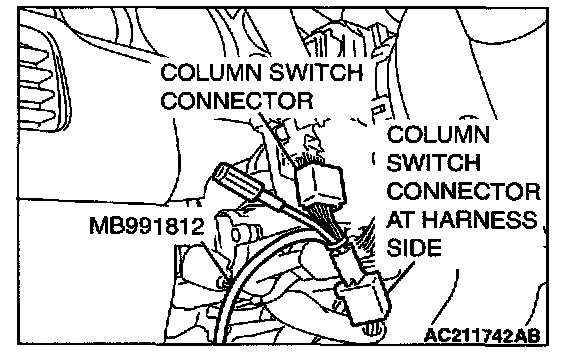

3. Disconnect the steering column switch connector.
4. Connect SWS monitor kit MB991813 to the column switch connector.
