Courtesy Lamp: Description and Operation

INTERIOR LIGHTS

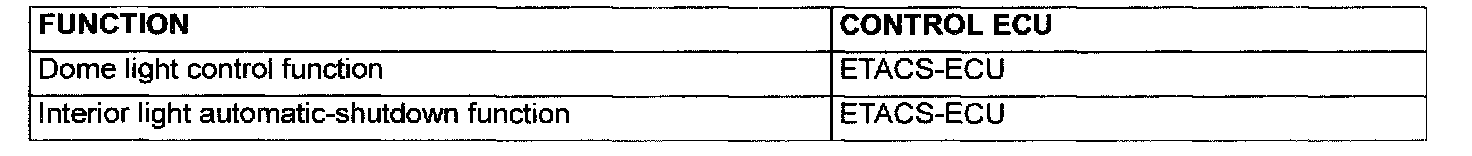

The ECU related to the interior light function types and various control functions.

Dome Light Control Function:

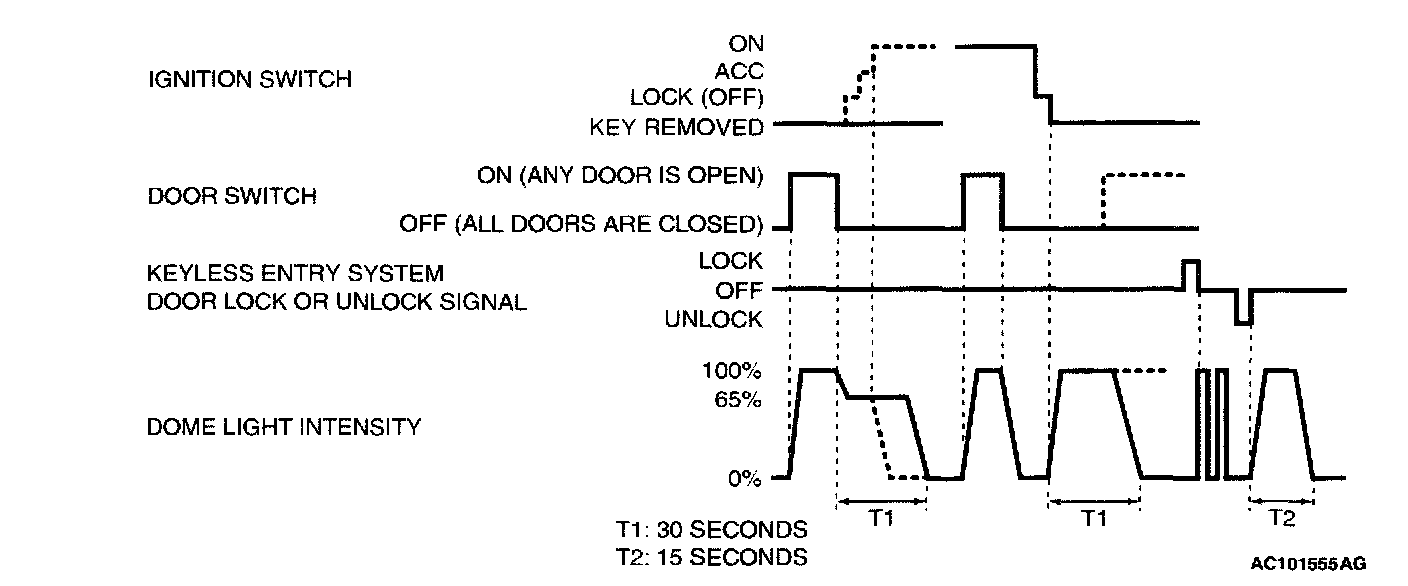

Dome light control function
When the dome light switch is at the door position, the ETACS-ECU controls the lighting of the dome light as follows:
- When a door is opened with the ignition switch ON, the dome light lights up at a luminance of
- When a door is opened with the ignition switch off, the dome light lights up at a luminance of 100 percent. When a door is closed, the dome light dims at a luminance of 65 percent, and goes off 30 seconds later. However if the ignition switch is turned ON or if all doors are locked while they are closed, the dome light will go off at that point. 100 percent. When a door is closed, the dome light goes off.
- When the ignition key is removed with all doors closed, the dome light lights up at a luminance of 100 percent, and goes off 30 seconds later. However if the ignition key is inserted again or if all doors are locked while the dome light is lighting, the dome light will go off at that point.
- The dome light is flashed twice when door is locked with keyless entry. When door is unlocked with keyless entry, the dome light lights at a luminance of 100 percent, and goes off 15 seconds later.

NOTE: The dotted lines indicate that lighting mode when the ignition switch is turned ON, all doors are locked during the timer illumination time.

Interior Light Automatic-shutdown Function:

Interior light automatic-shutdown function
Illuminated interior lights such as the front dome light, etc. (all lights using the dome light fuse as the power supply) will automatically go off in the following conditions to prevent excess battery discharge as a result of forgetting to turn off the lights or incomplete closing of the door.
- When the ignition switch is turned off and more than 30 minutes pass by with the interior light illuminated, the interior lights will go off automatically.
- When the ignition switch is turned off and any door switch remains open for 30 minutes continuously, the interior lights will go off automatically.
