Rear Wiper and Washer

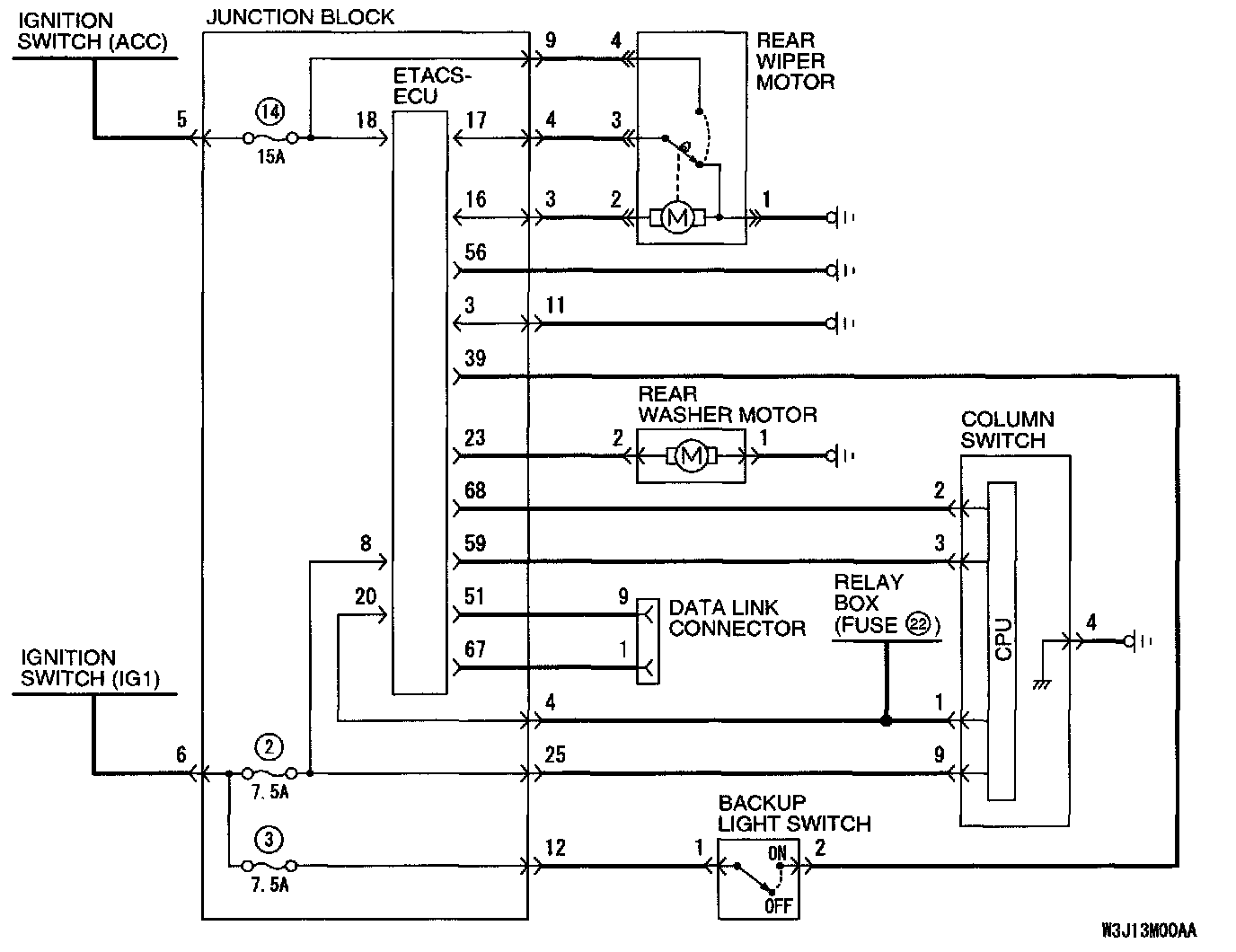

General Circuit Diagram For Rear Wiper And Washer:

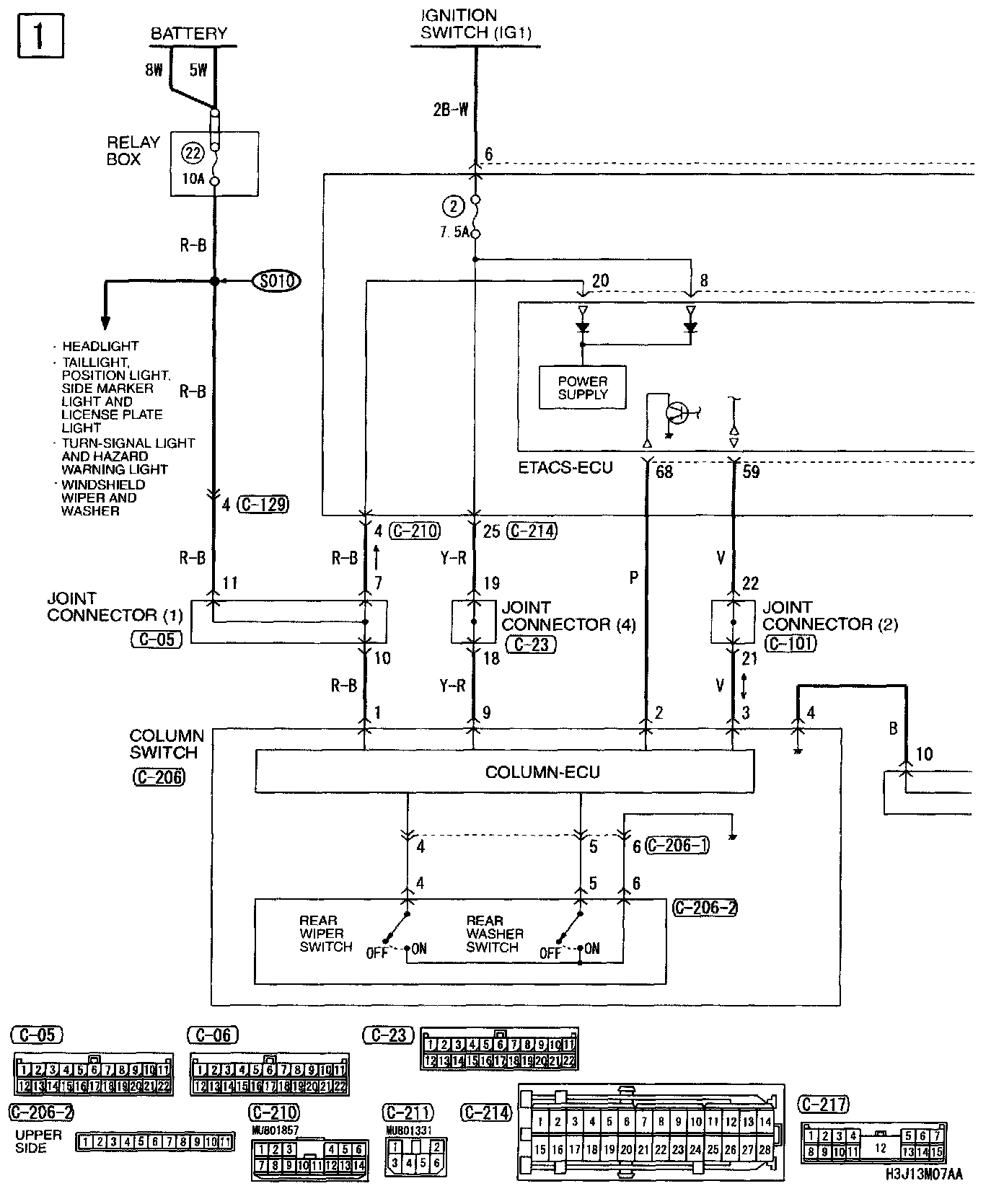

Rear Wiper And Washer Part 1:

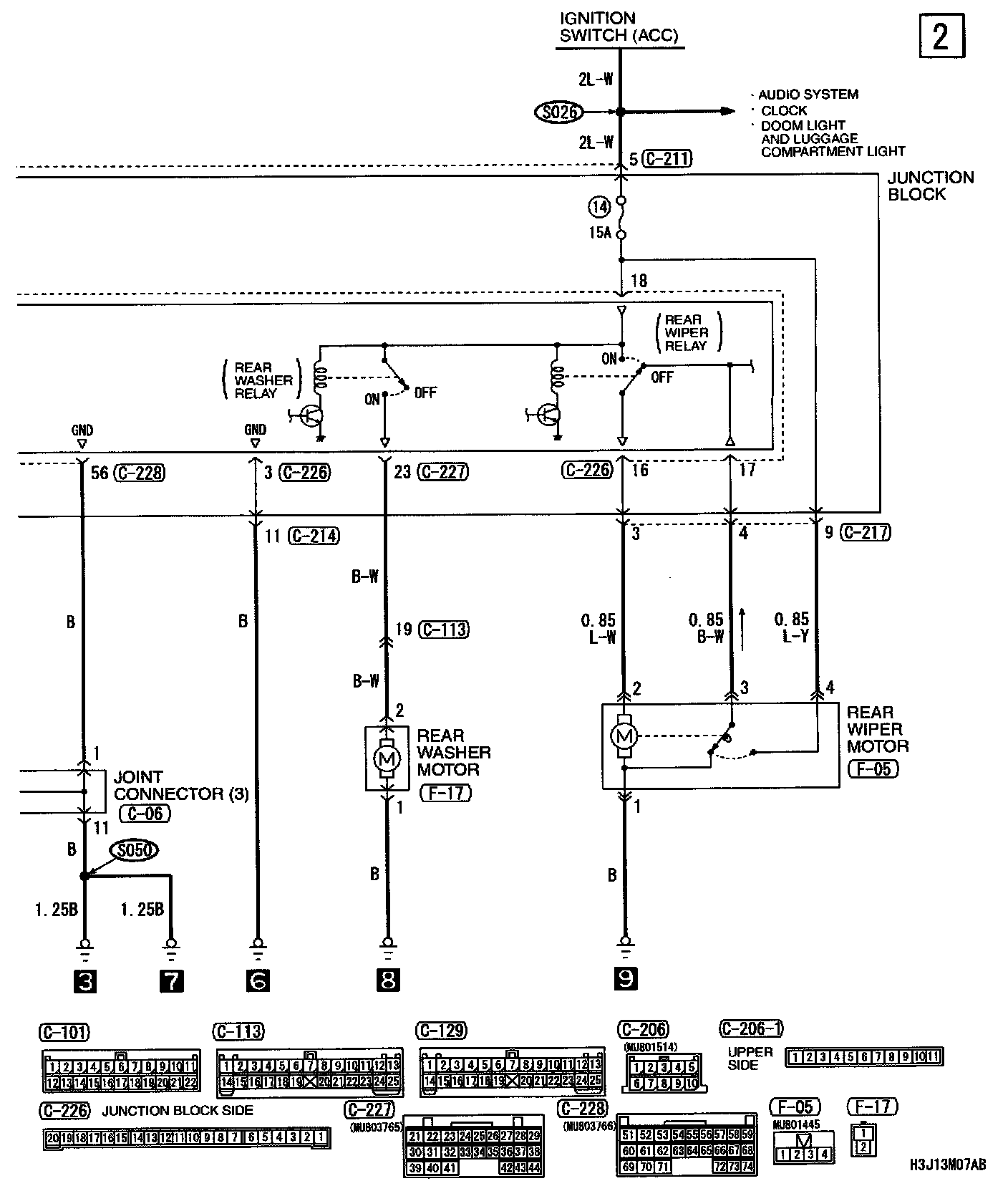

Rear Wiper And Washer Part 2:

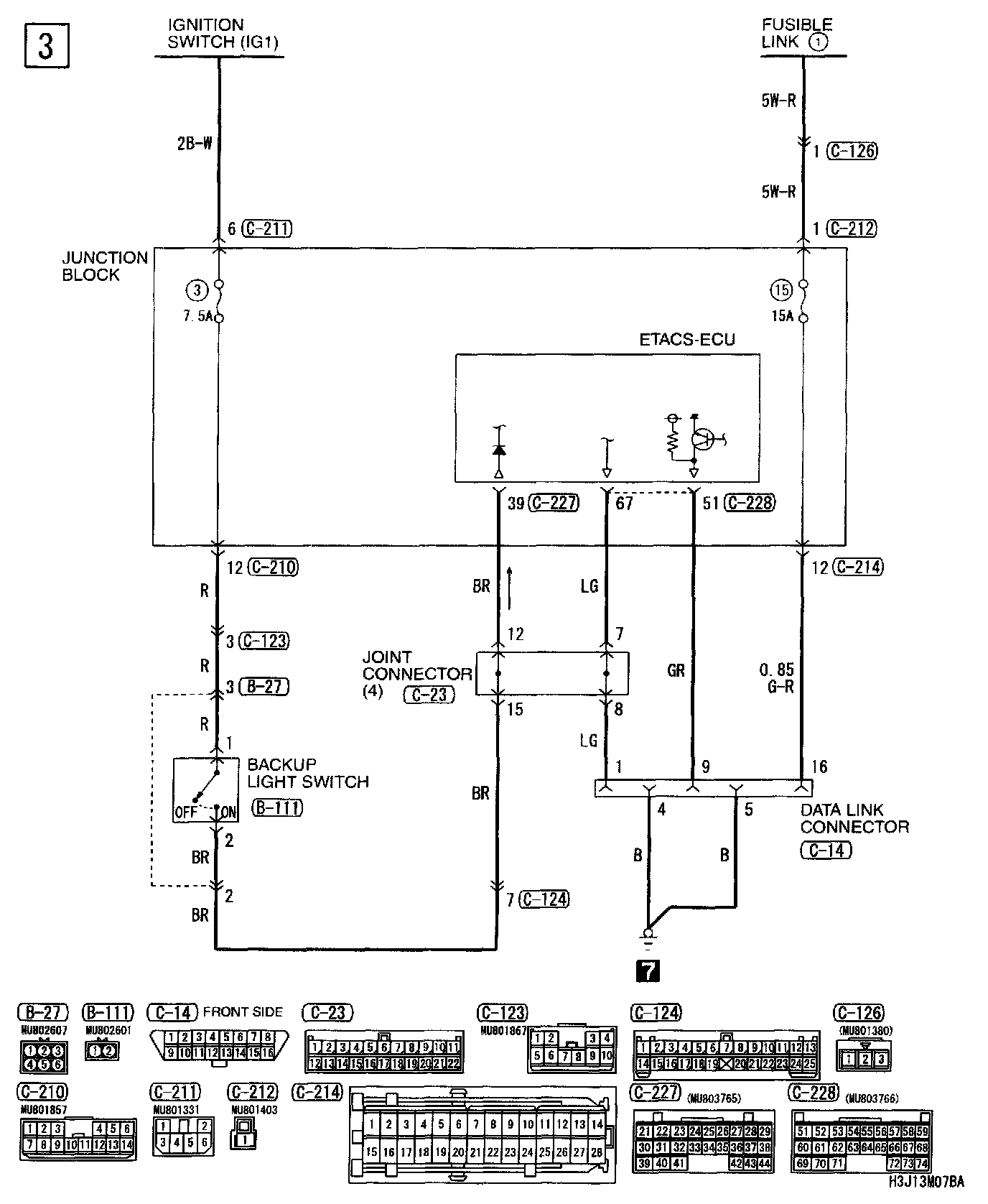

Rear Wiper And Washer Part 3:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
