Seat Belt Reminder Lamp

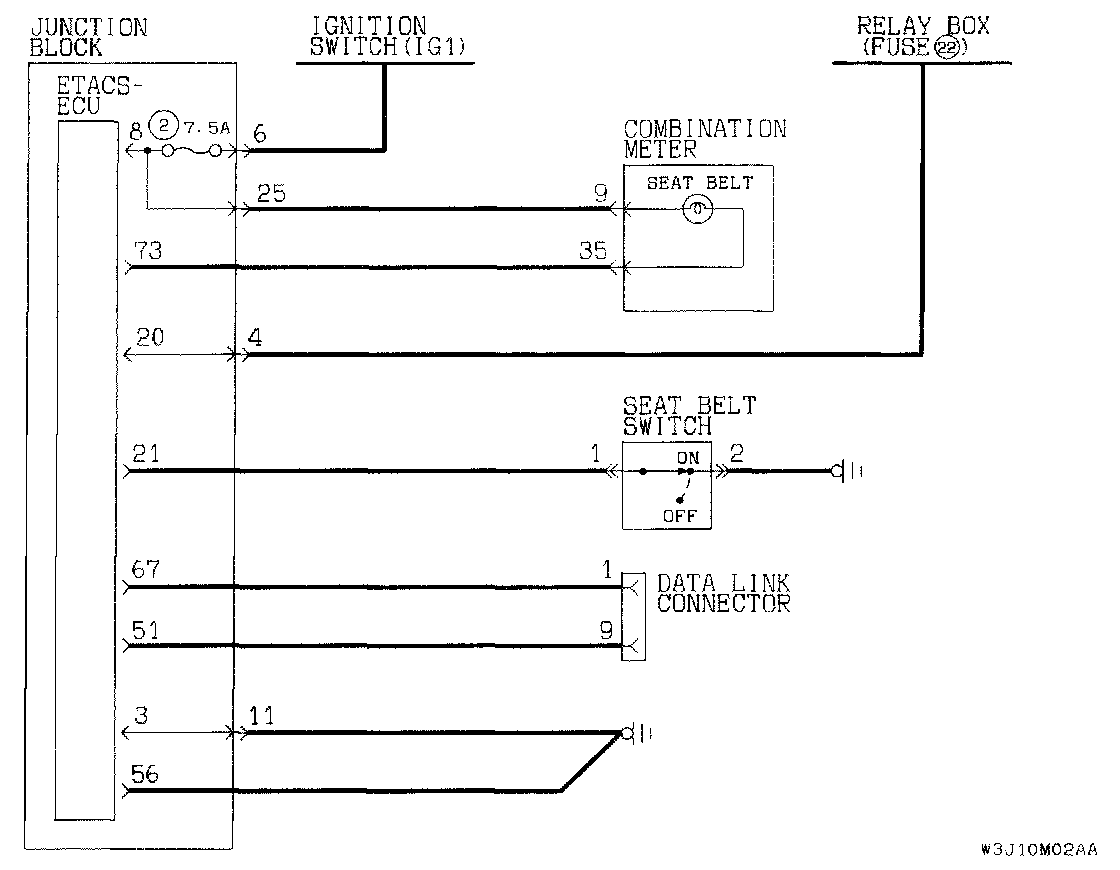

General Circuit Diagram For The Seat Belt Warning Light Function:

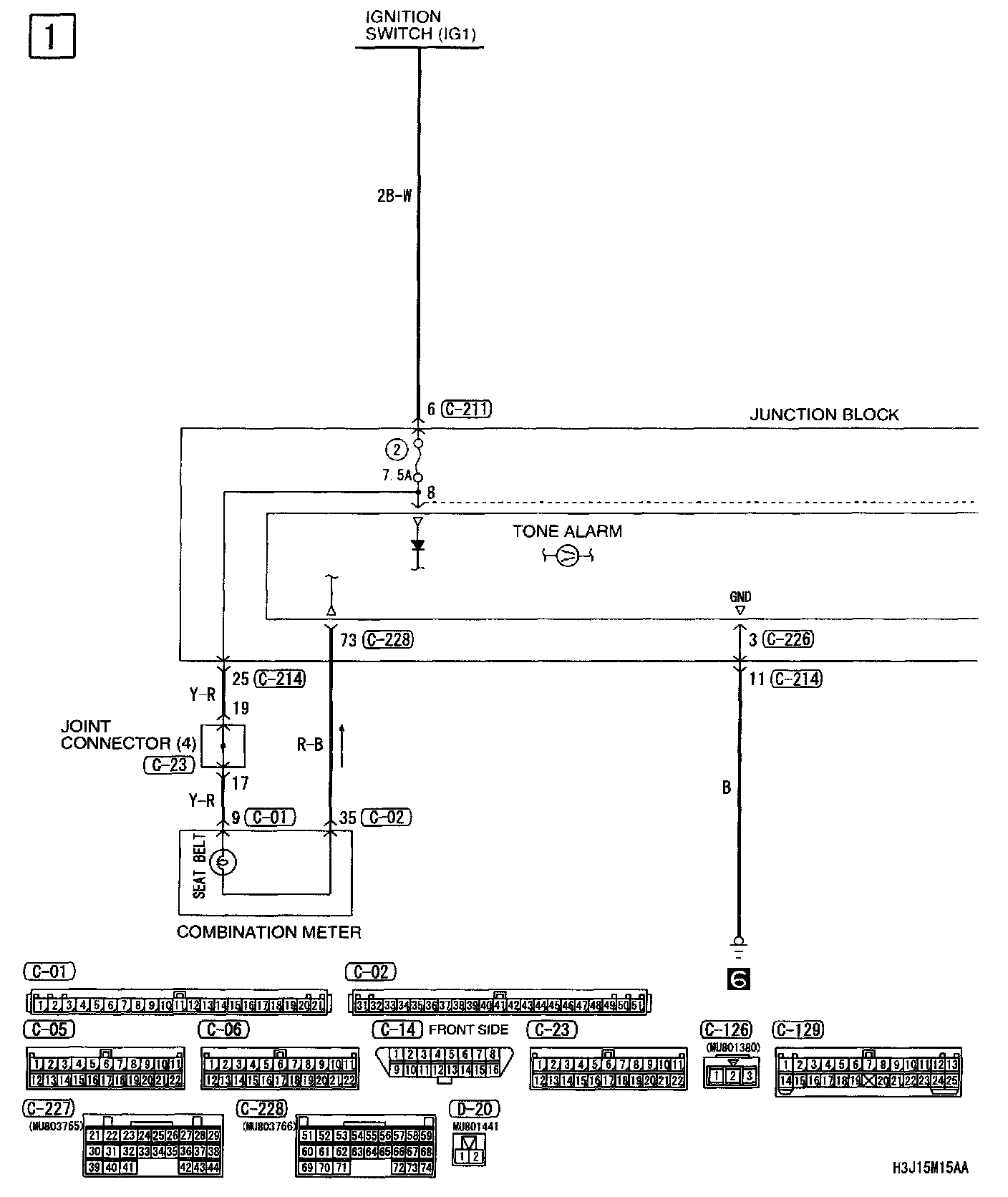

Seat Belt Warning Light Part 1:

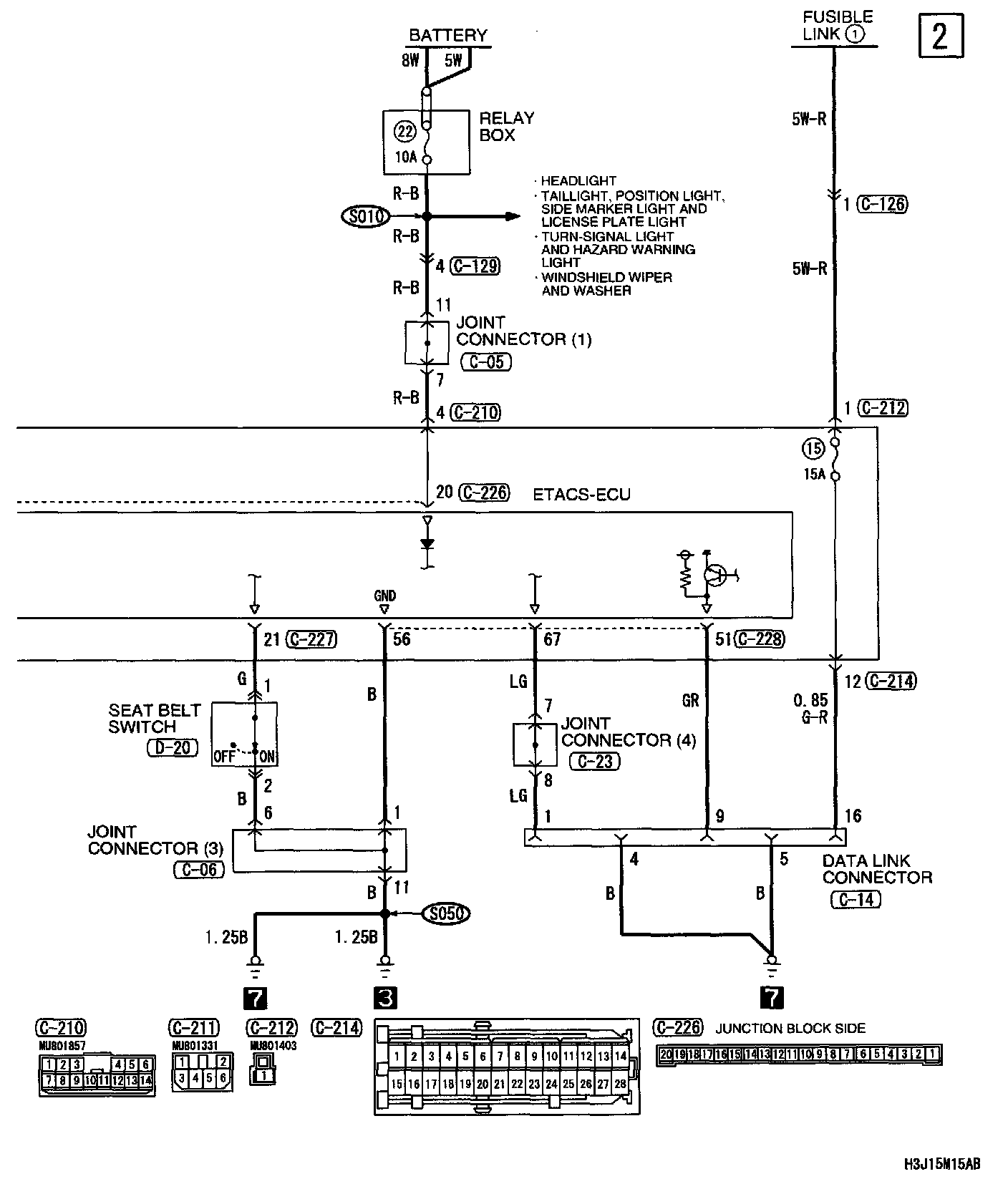

Seat Belt Warning Light Part 2:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
