Component Tests and General Diagnostics

INSPECTION

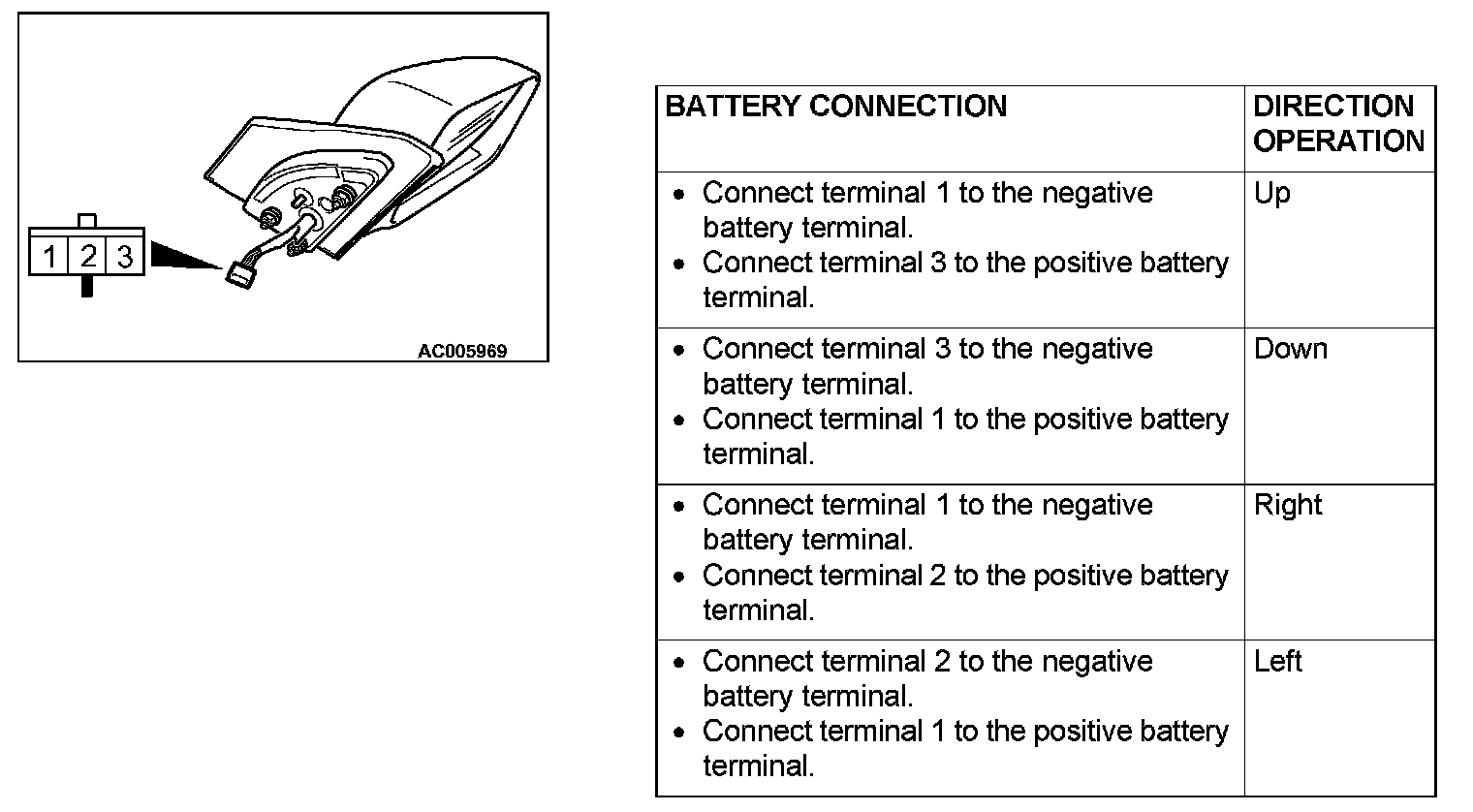

ELECTRIC REMOTE CONTROLLED MIRROR OPERATION CHECK






Check that the mirror moves as described in the table when each terminal is connected to the battery.

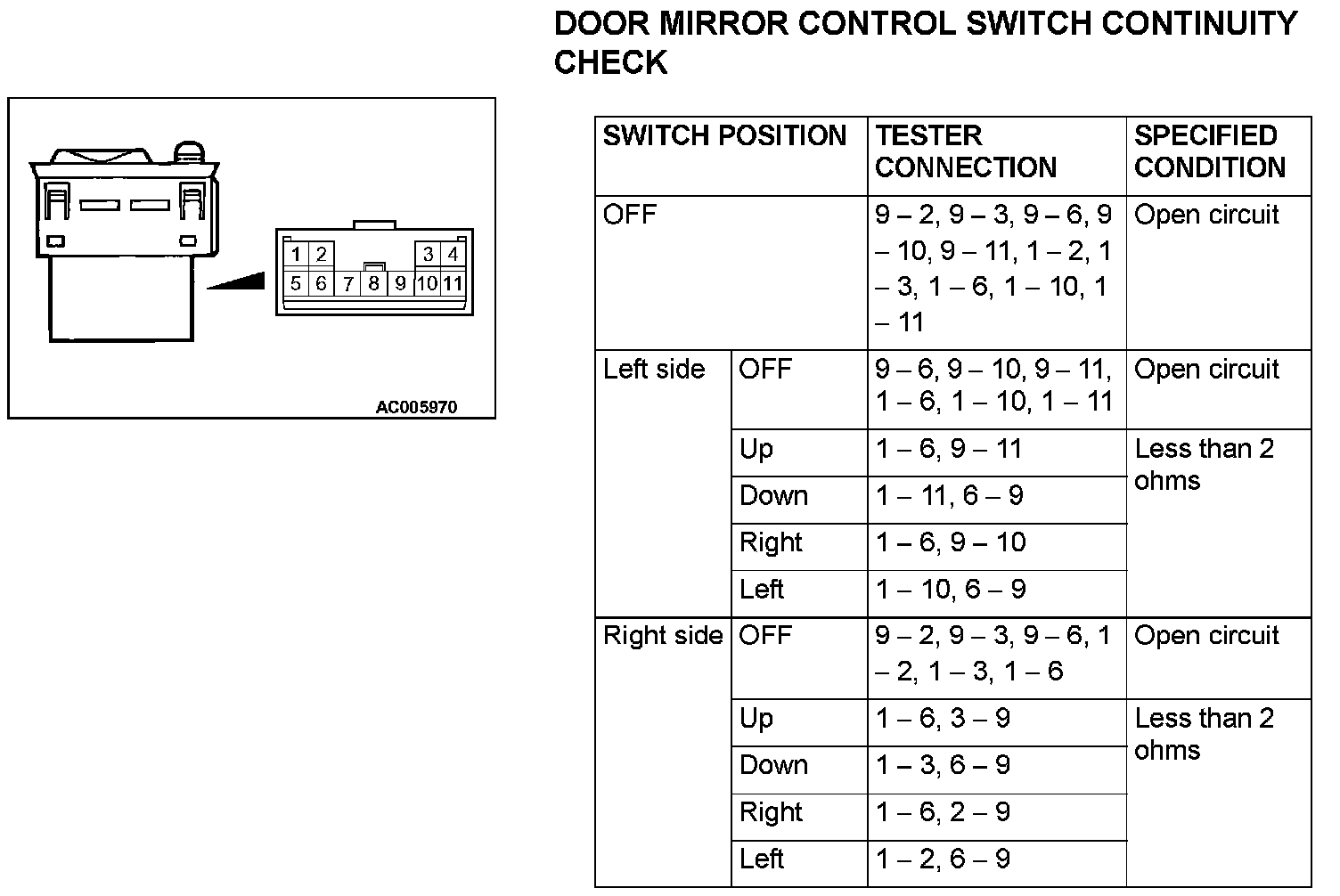

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK

Door Mirror Control Switch Continuity Check:
