Electrical Diagrams

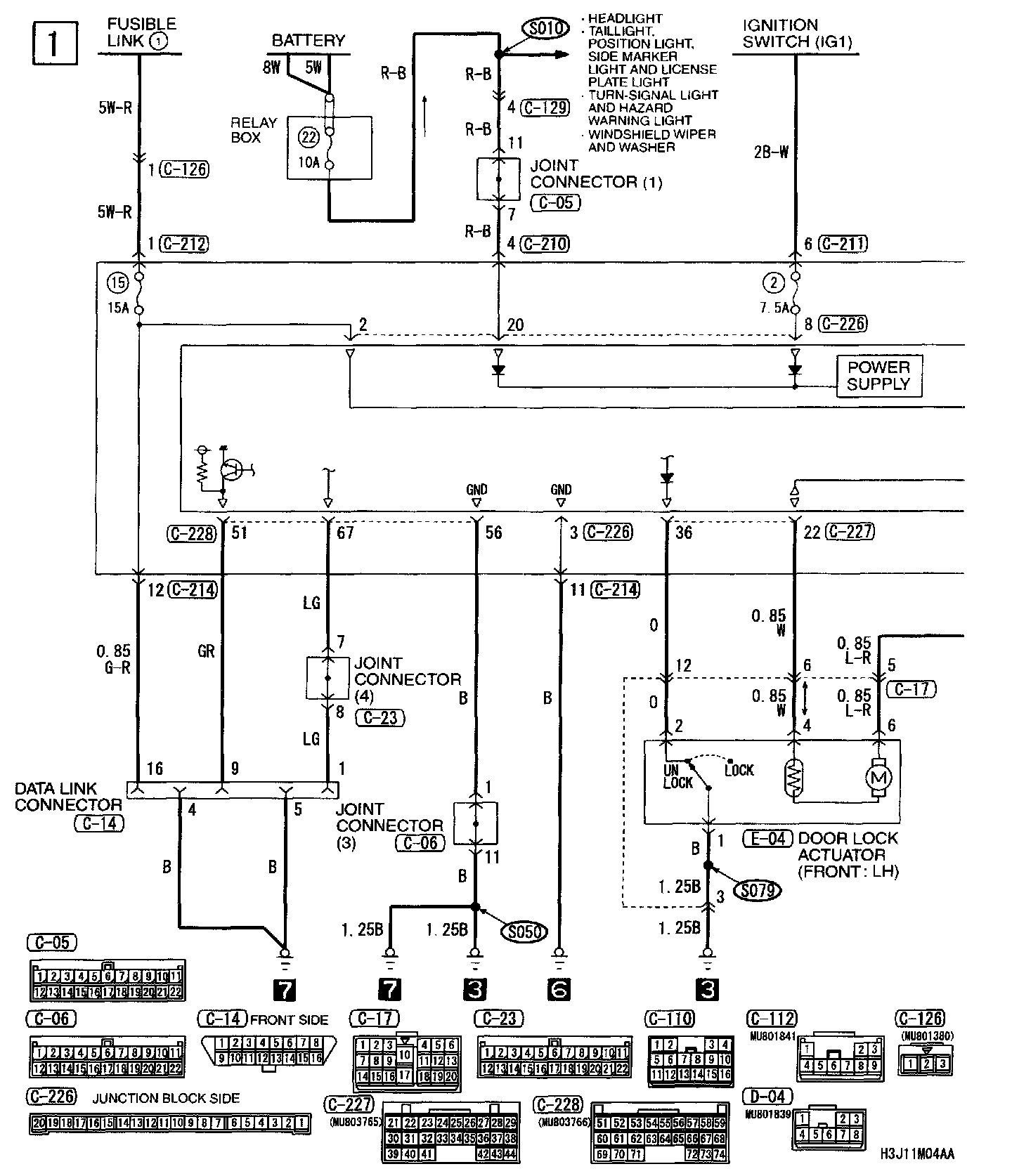

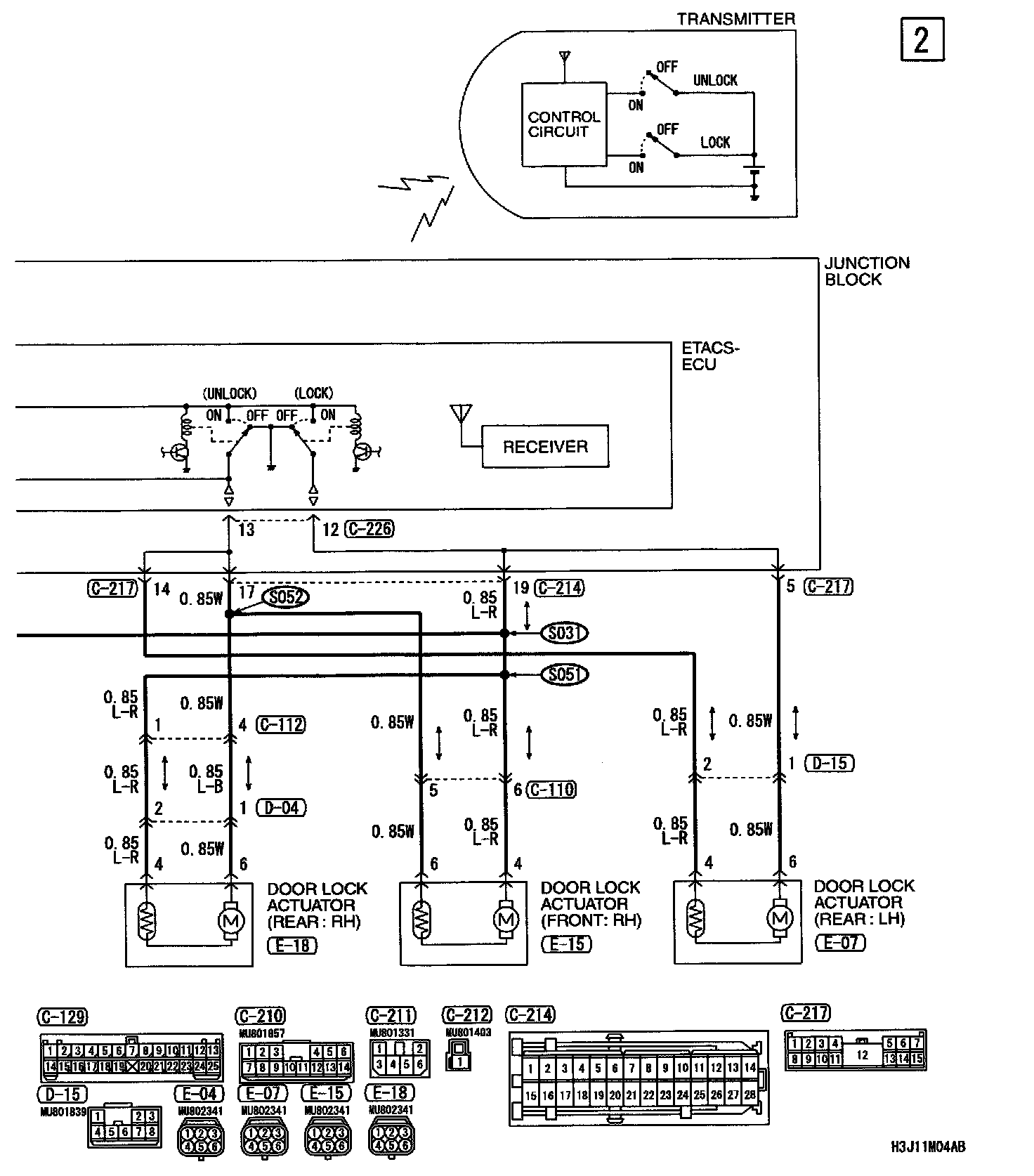

Central Door Locking System Part 1:

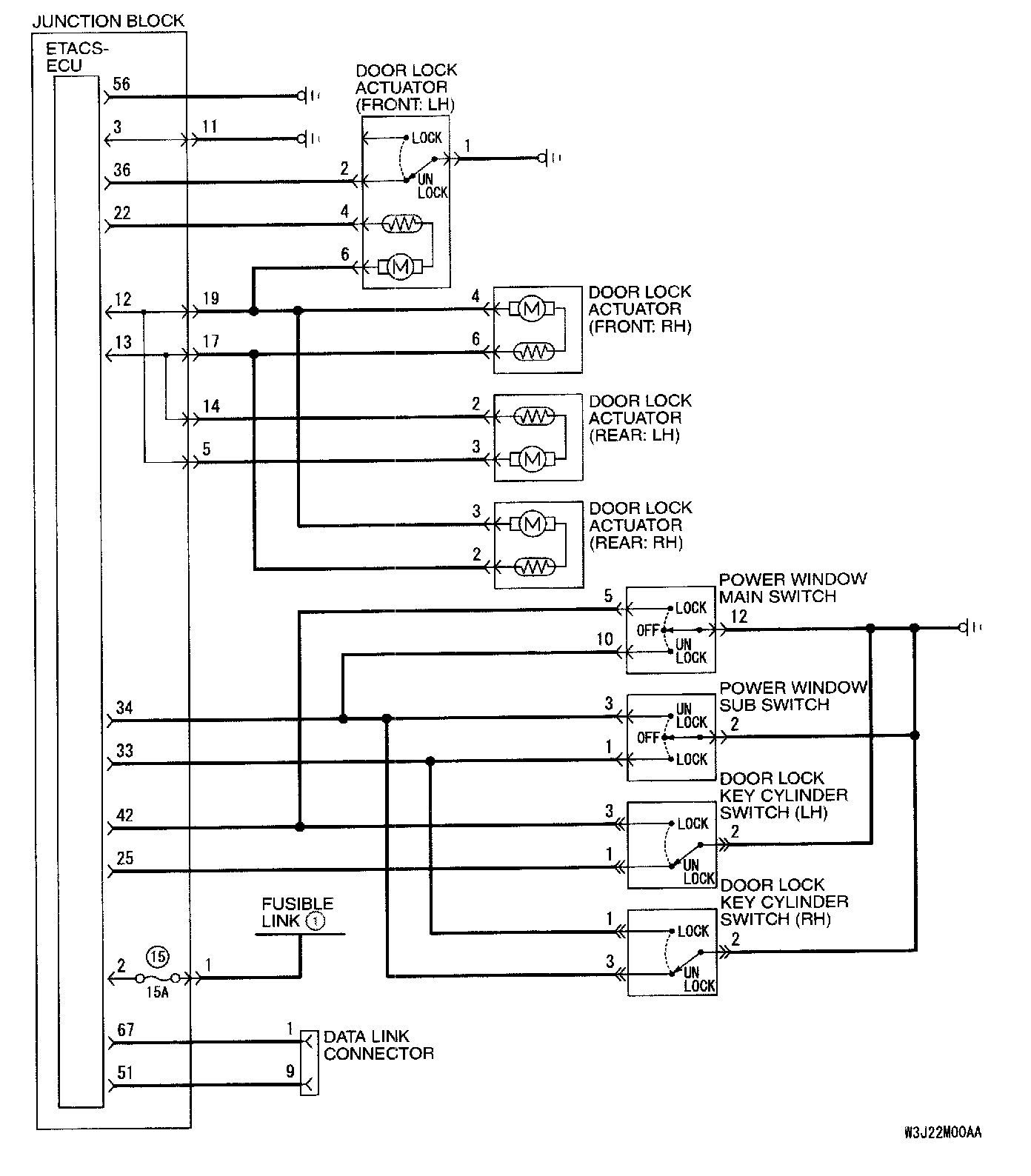

Central Door Locking System Part 2:

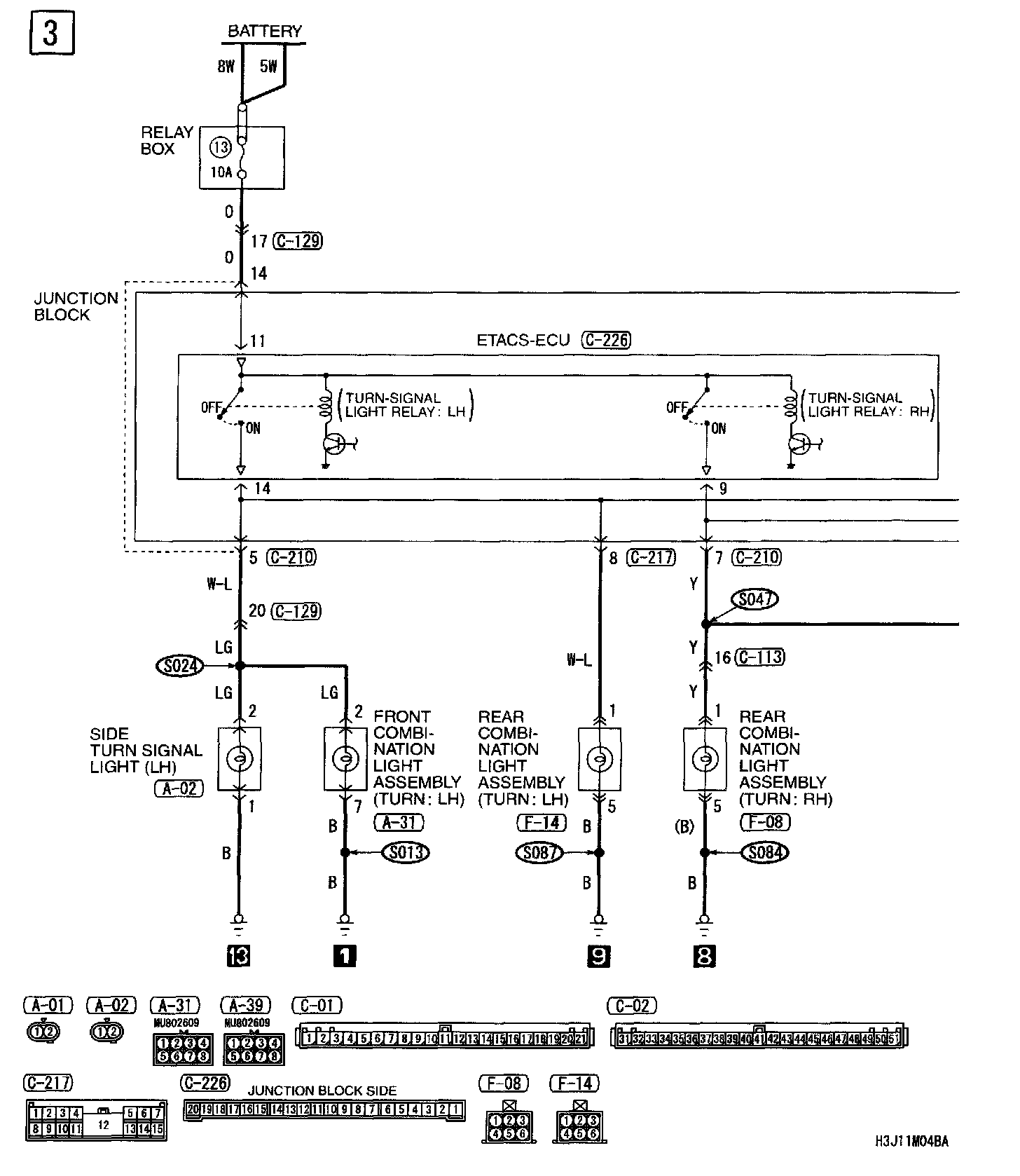

Central Door Locking System Part 3:

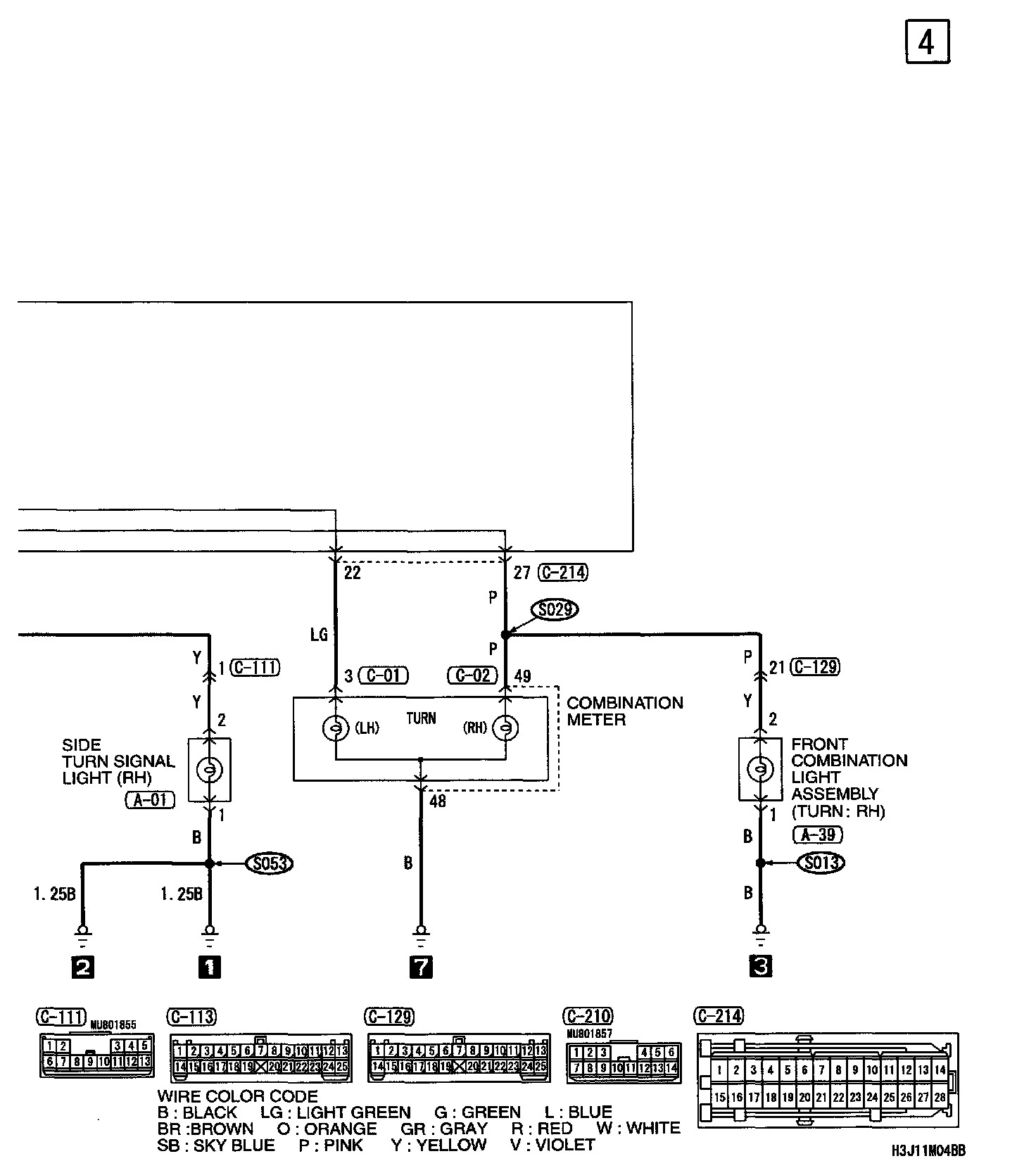

Central Door Locking System Part 4:

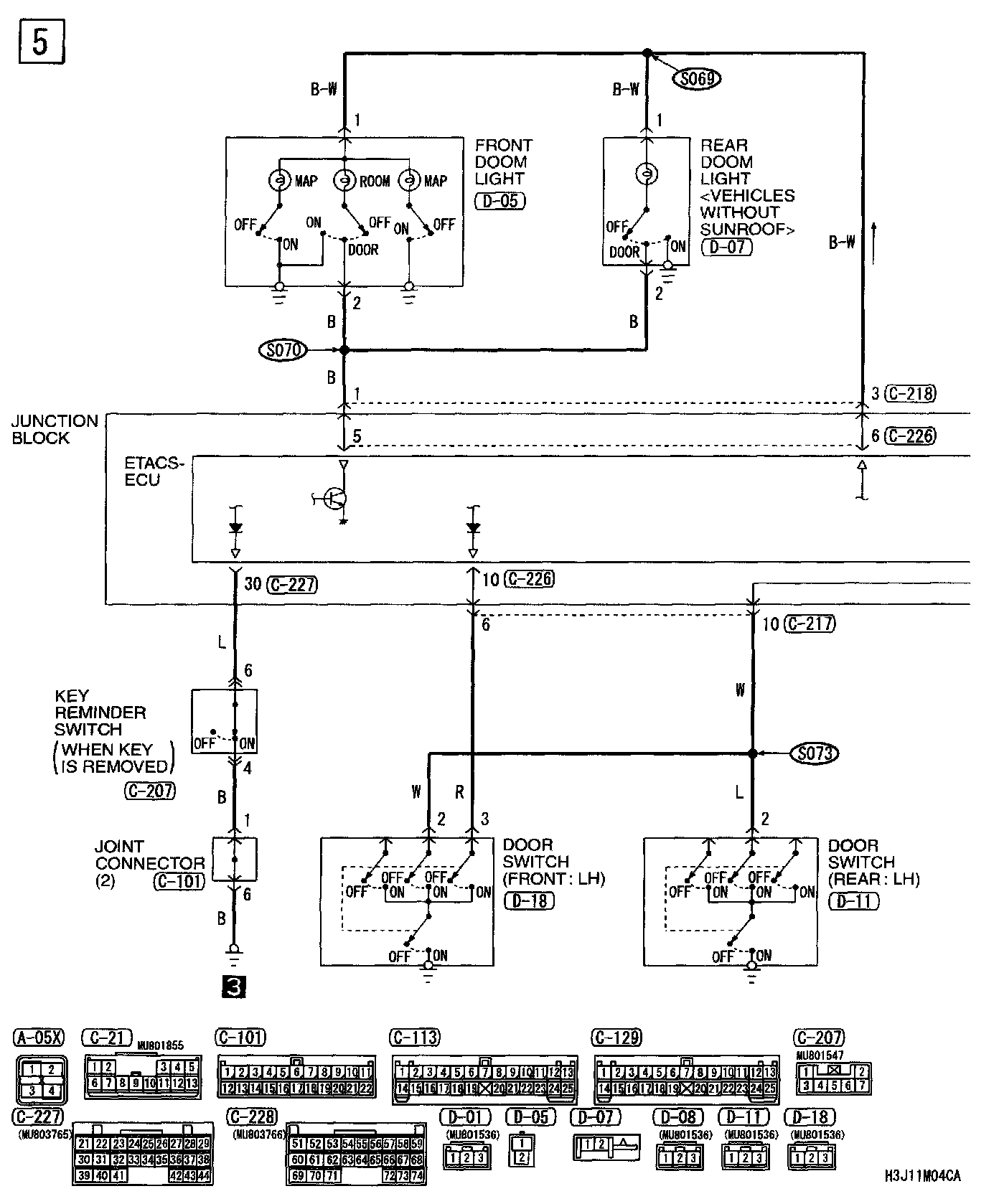

Central Door Locking System Part 5:

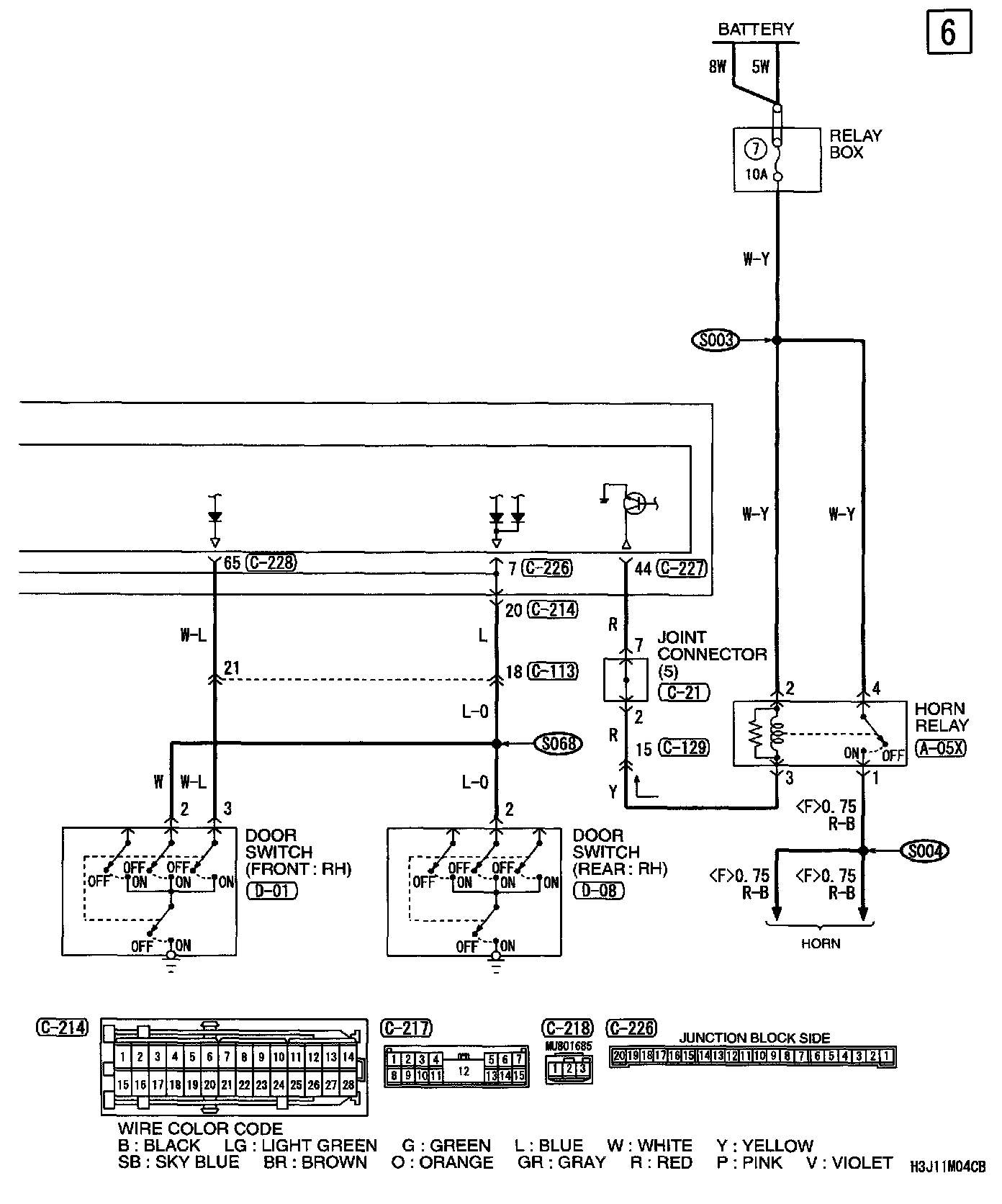

Central Door Locking System Part 6:

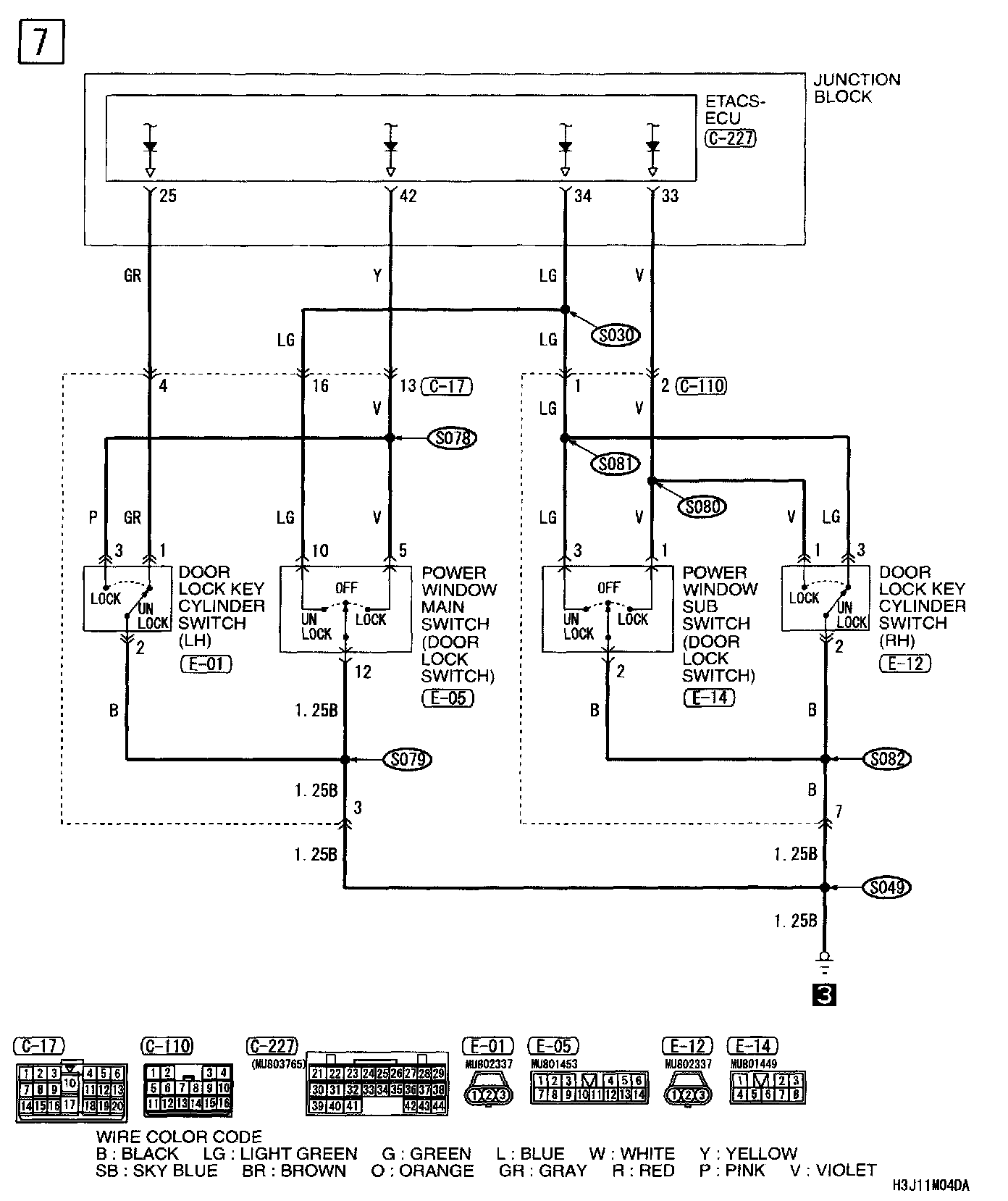

Central Door Locking System Part 7:
