Rear Wiper and Washer
REAR WIPER AND WASHERRear Wiper Operation
If the rear wiper and washer switch is turned to "INT" position with the ignition switch at "ACC" or "ON" position, the ETACS-ECU turns ON the rear wiper drive signal for three seconds (approx. two cycles), then 7.4 seconds later the intermittent motion operates every eight seconds. If the selector lever is moved to the "R" position when the rear wiper and washer switch is turned to the "INT" position and the ignition switch is at the "ACC" or "ON" position, the park/neutral position switch "R" turns ON. One second later, the ETACS-ECU turns ON the rear wiper drive signal for three seconds (approx. two cycles). Then, 7.4 seconds later, the intermittent motion of eight seconds cycle is restored.
Rear Washer Operation
If the rear wiper and washer switch is turned to the ON (washer) position with the ignition switch at the "ACC" or "ON" position, the rear washer ON signal is sent to the ETACS-ECU, causing the rear wiper signal to turn on after 0.3 seconds. After the rear washer switch signal turns off, the rear wiper signal turns off in three seconds. If the rear washer switch is turned to the ON position while the rear wiper is in intermittent mode, the rear washer works for that period when the washer switch remains on. Then the rear wipers return to the intermittent mode.
SEAT BELT WARNING LIGHT
If the driver turns the ignition switch to the "ON" position without wearing the seat belt, the seat belt warning light illuminates to alert the driver to wear the seat belt.

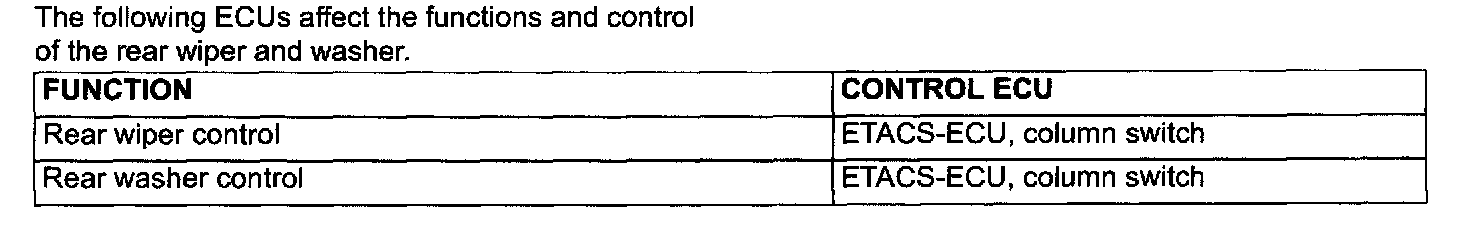

GENERAL DESCRIPTION CONCERNING REAR WIPER AND WASHER
REAR WIPER AND WASHER CONTROL FUNCTION
Rear Wiper Control
If the rear wiper switch of the column switch assembly is turned ON with the ignition switch in the ACC or ON position, the ETACS-ECU will turn the rear wiper drive signal ON for three seconds (approximately two operations), and then will carry out intermittent operation in a 7.4 - 8 seconds cycle.
If the shift lever

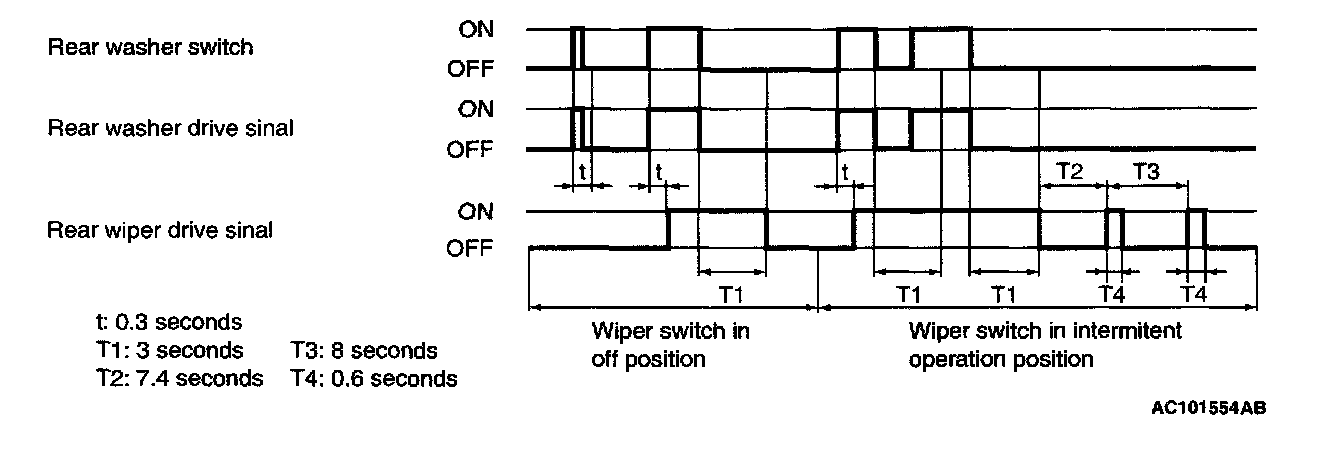

Rear Washer Control
When the ignition switch is at the ACC or ON position, if the rear washer switch of the column switch is turned ON, the ETACS-ECU turns ON the rear washer relay. The rear wiper drive signal is turned ON in 0.3 seconds until three seconds after the rear washer switch goes OFF to operate the rear wiper continuously.
If the rear wiper is in intermittent operation when the rear washer switch is turned ON, 7.4 seconds after the rear wiper drive signal turns OFF, the 8-seconds cycle intermittent operation will continue.
