Removal and Replacement

STARTING SYSTEM REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
- Air Cleaner Removal and Installation

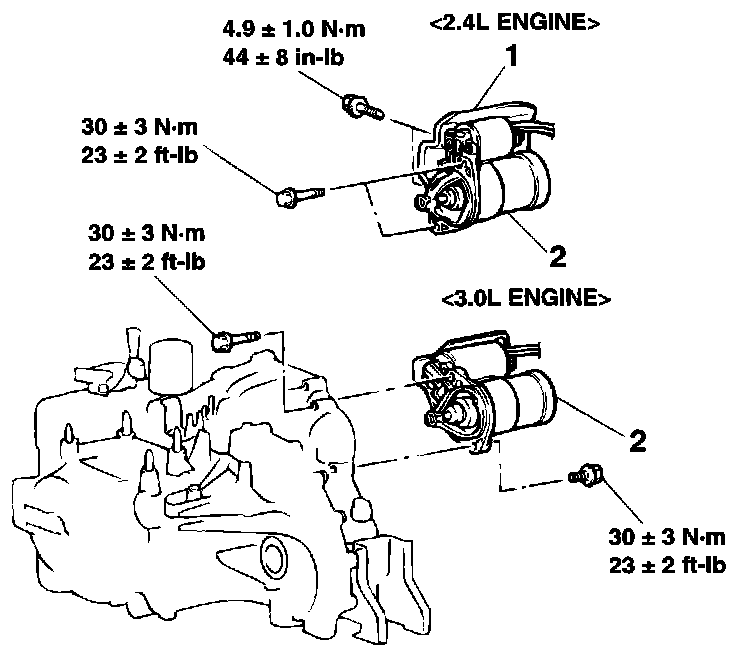

REMOVAL STEPS






1. STARTER COVER <2.4L ENGINE>
2. STARTER MOTOR

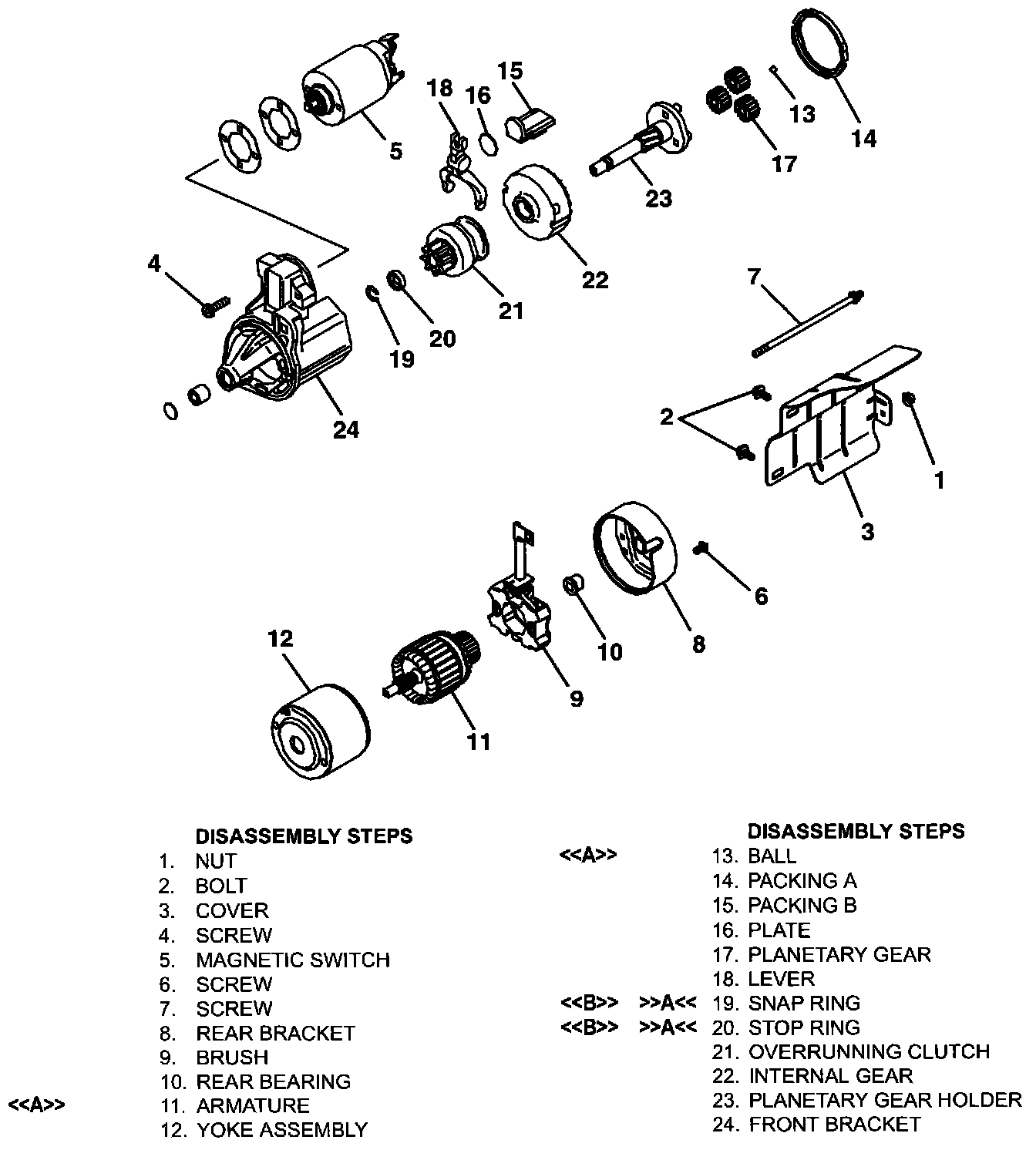

DISASSEMBLY AND ASSEMBLY <2.4L ENGINE>

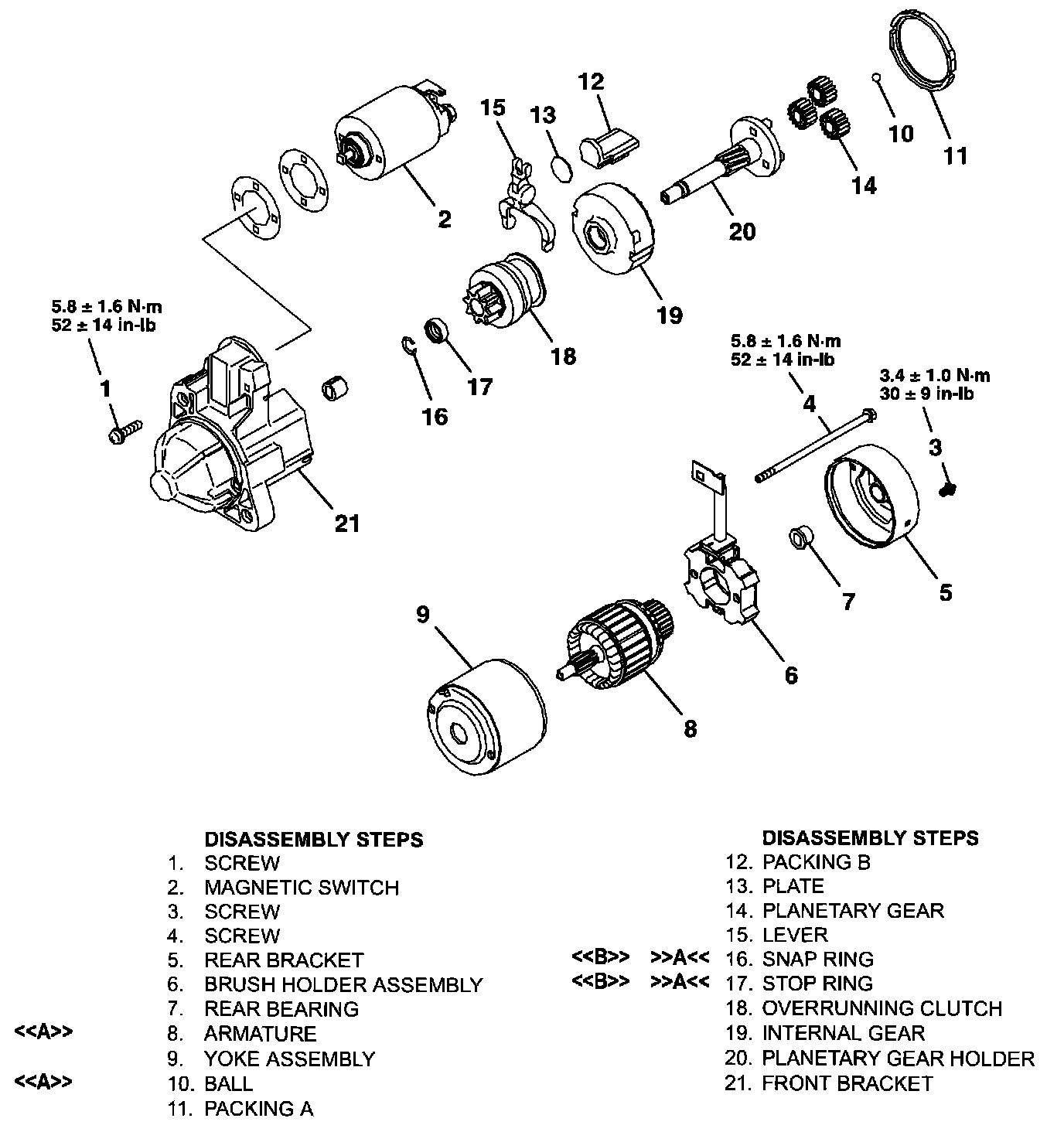

DISASSEMBLY AND ASSEMBLY <3.OL ENGINE>
