Water Pump: Service and Repair

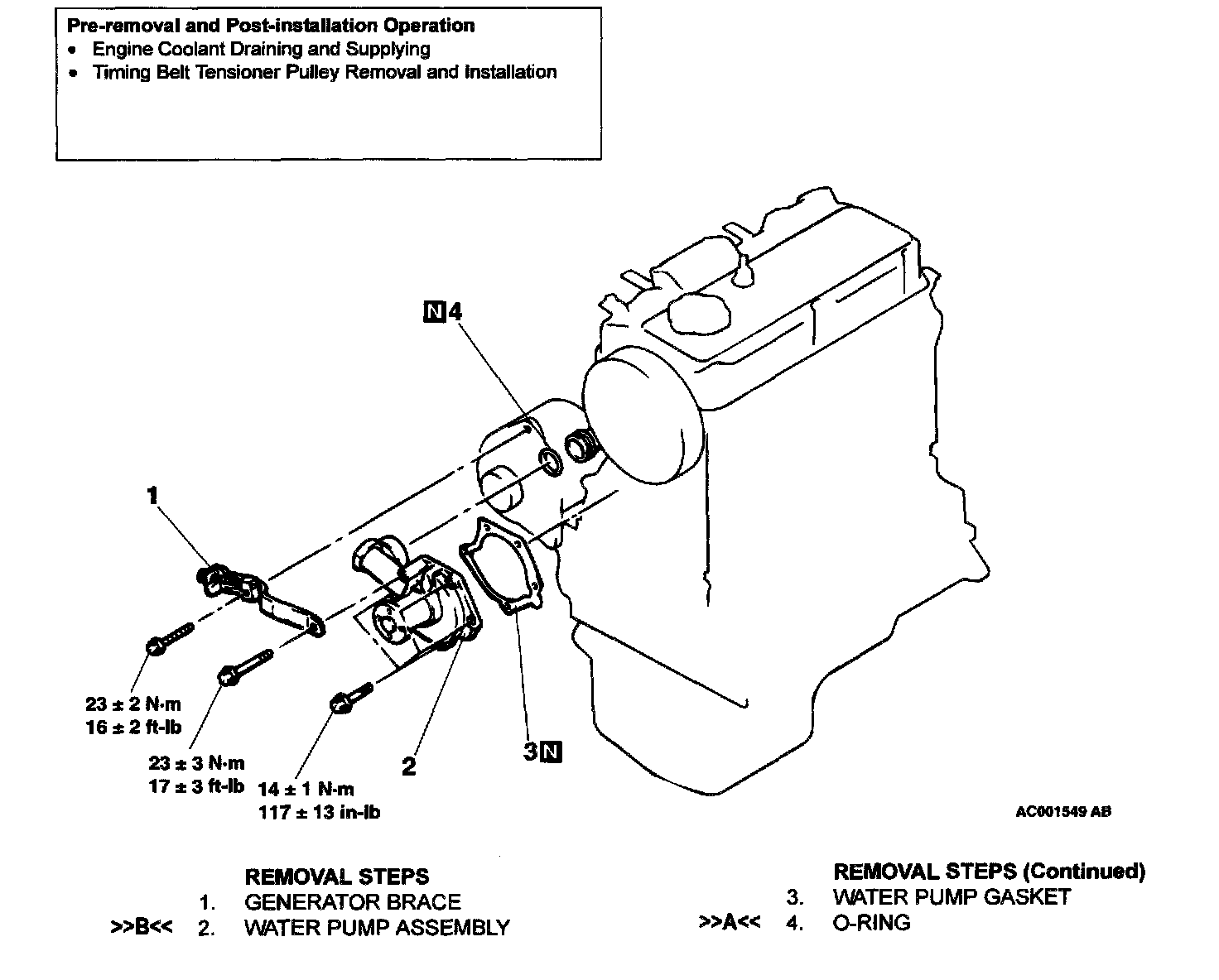

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS
]]A[[ O-RING INSTALLATION

CAUTION:
- Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
- When inserting the pipe, check to be sure that there is no sand, dirt, etc. on its inner surface.





Rinse the mounting location of O-ring and water pipe with water, and install the O-ring and water pipe.

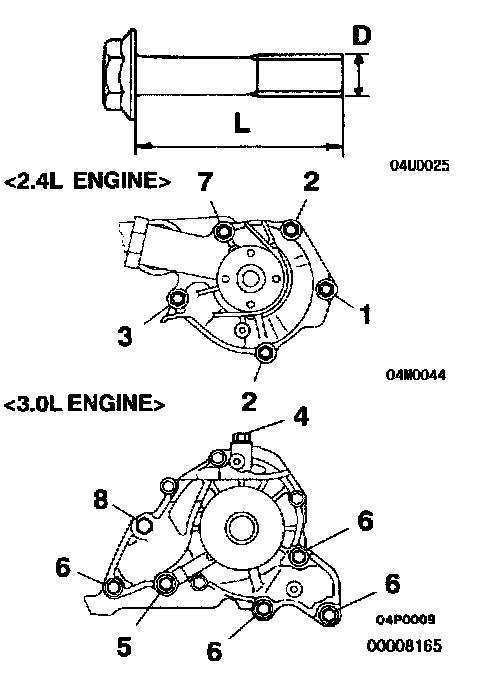

]]B[[ WATER PUMP ASSEMBLY INSTALLATION
