Home >> Mitsubishi >> 2003 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tools and Equipment

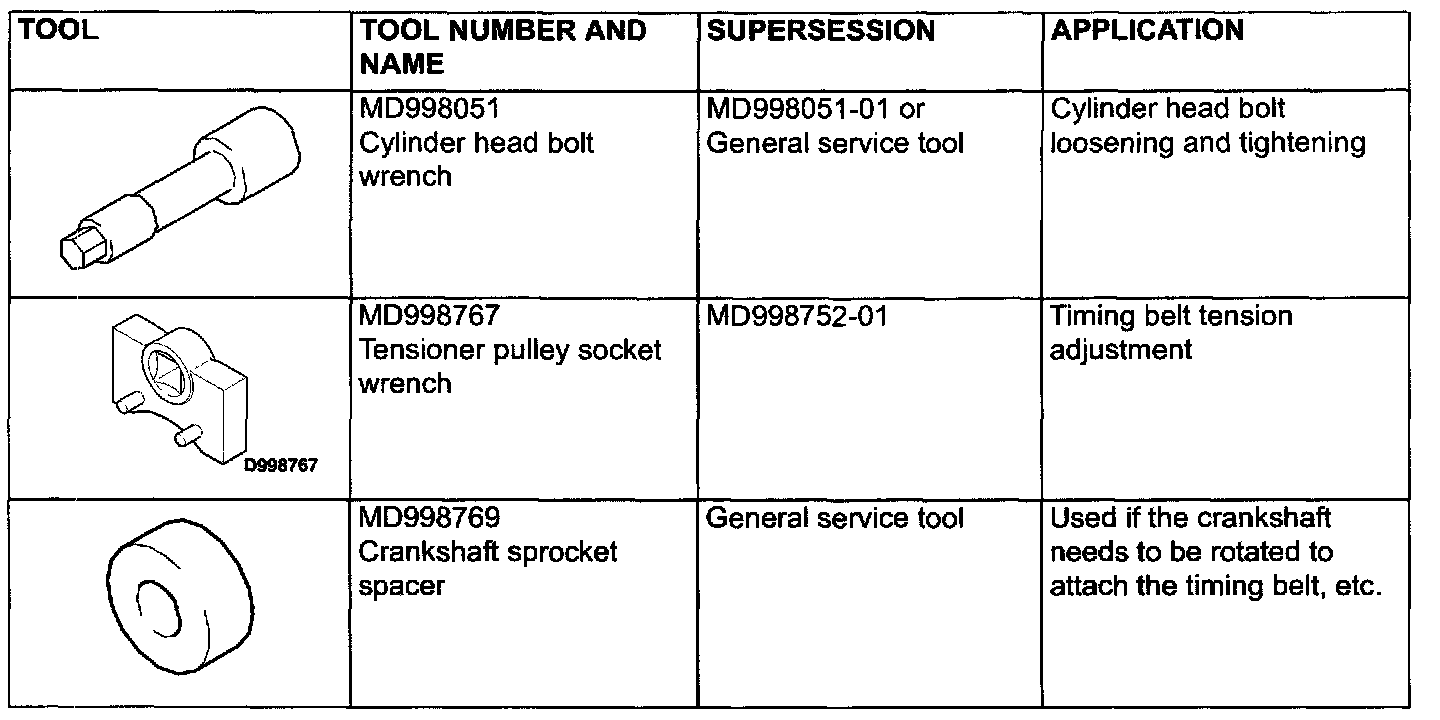

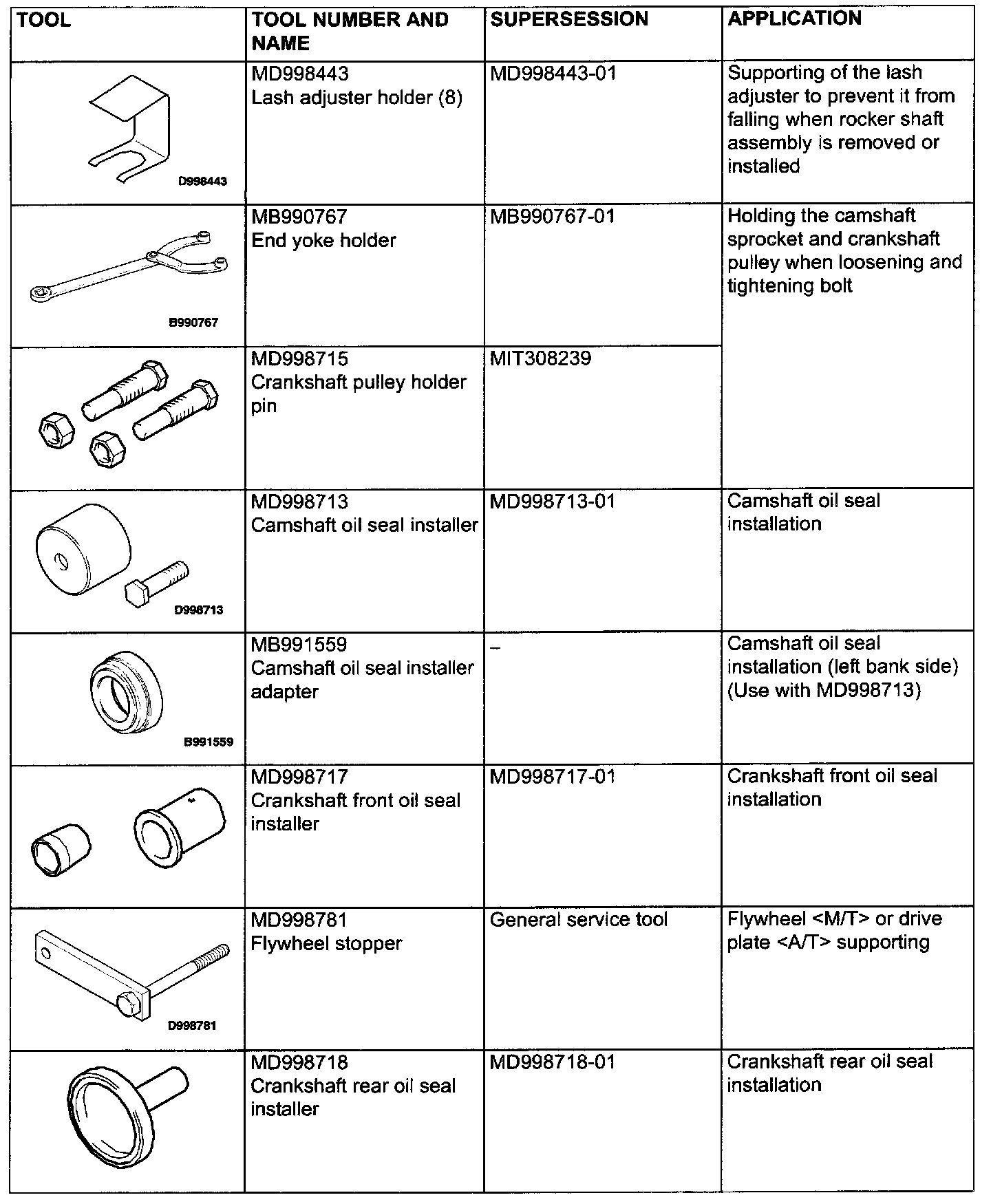

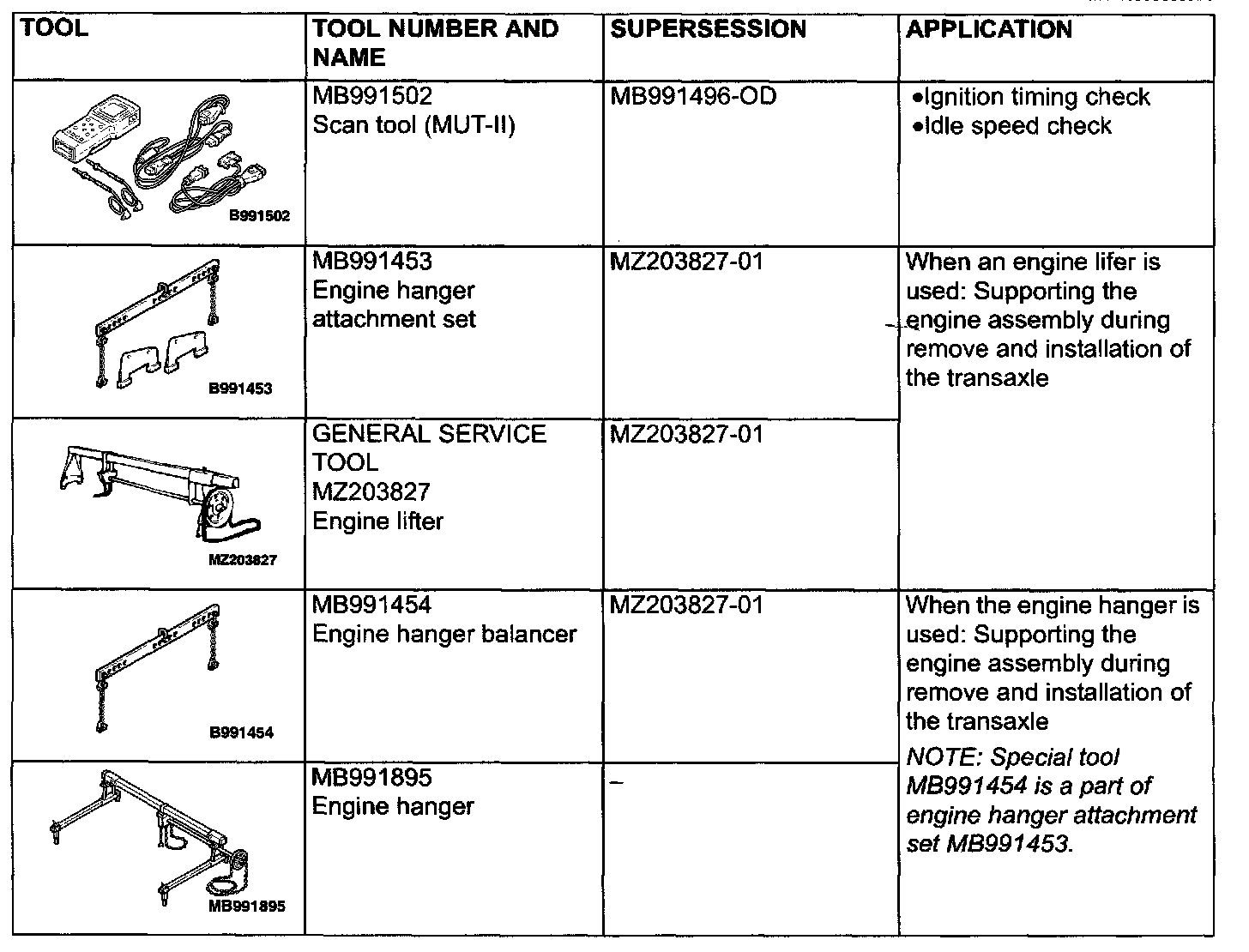

Engine: Tools and Equipment

ENGINE





Part 1 of 3





Part 2 of 3





Part 3 of 3

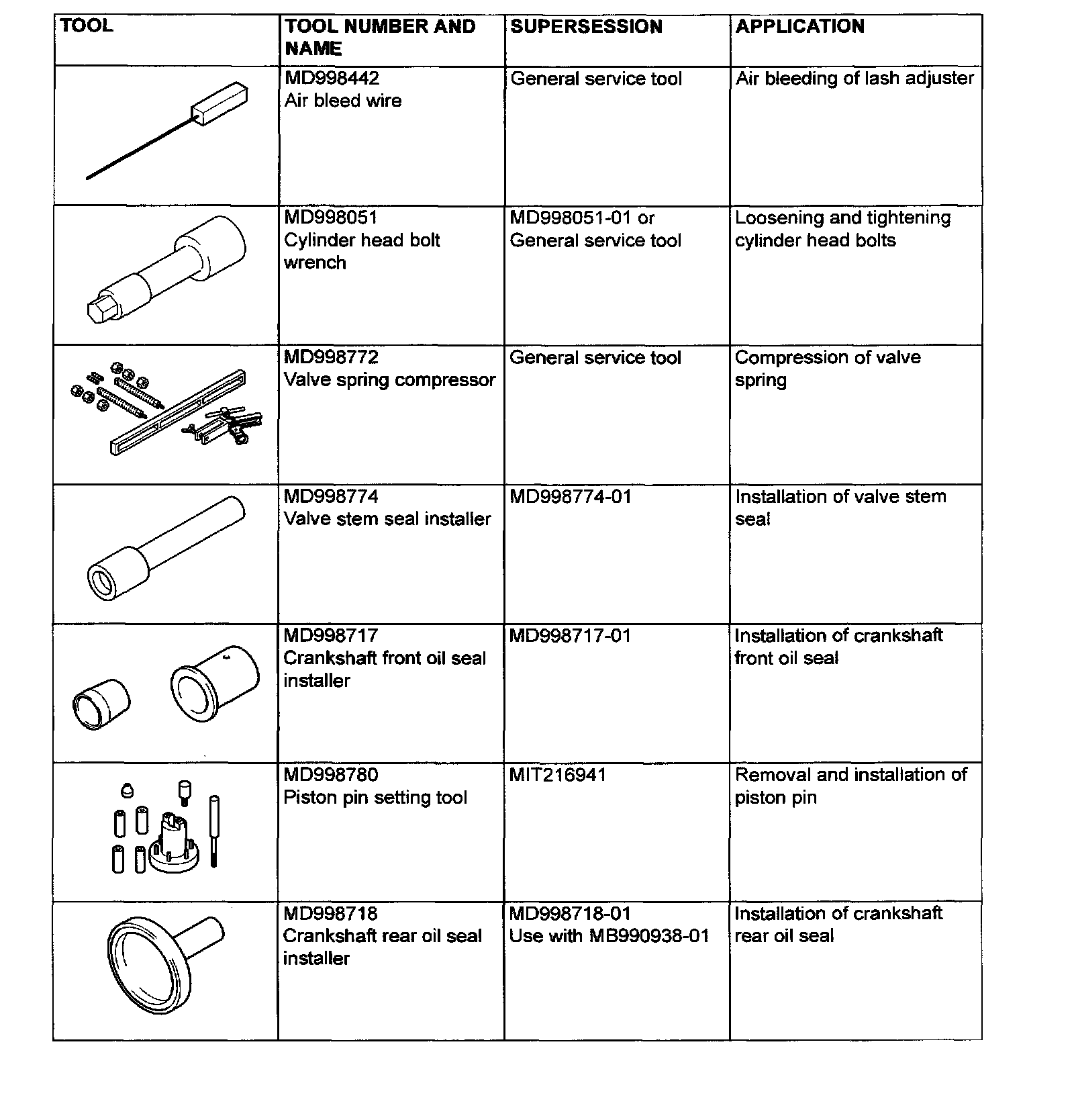

ENGINE OVERHAUL





Part 1 of 2





Part 2 of 2
