Intake Manifold Plenum and Throttle Body Assembly

[With Induction Control Valve]







[Without Induction Control Valve]



INSTALLATION SERVICE POINT






]]A[[ Intake Manifold Upper Installation

1. Clean the contact surfaces of induction control system and intake manifold upper.

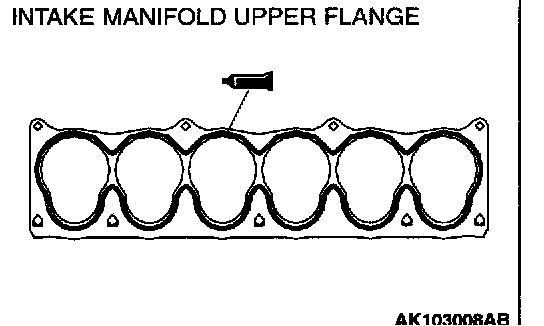

2. Apply Mitsubishi Genuine Parts number MD970339, 3M AAD Part number 8660 or equivelant to the intake manifold upper.

3. Install the intake manifold upper to the intake manifold upper.

Note:Be sure to install the intake manifold upper quickly while the sealant is wet (within 15 minutes).

4. Tighten the intake manifold upper mounting bolts to the specified torque.

Tightening Torque:
9 +/- 1 Nm (80 +/- 9 in-lb)







]]B[[ THROTTLE BODY GASKET INSTALLATION

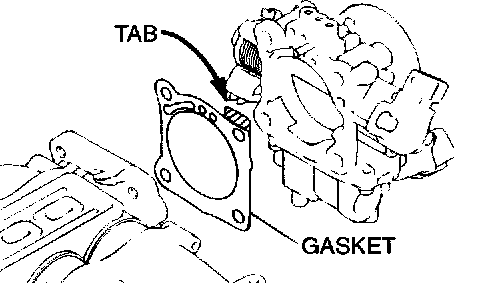

Install the gasket so that the tab is positioned as shown in the illustration.
