Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>
Reverse
Reverse

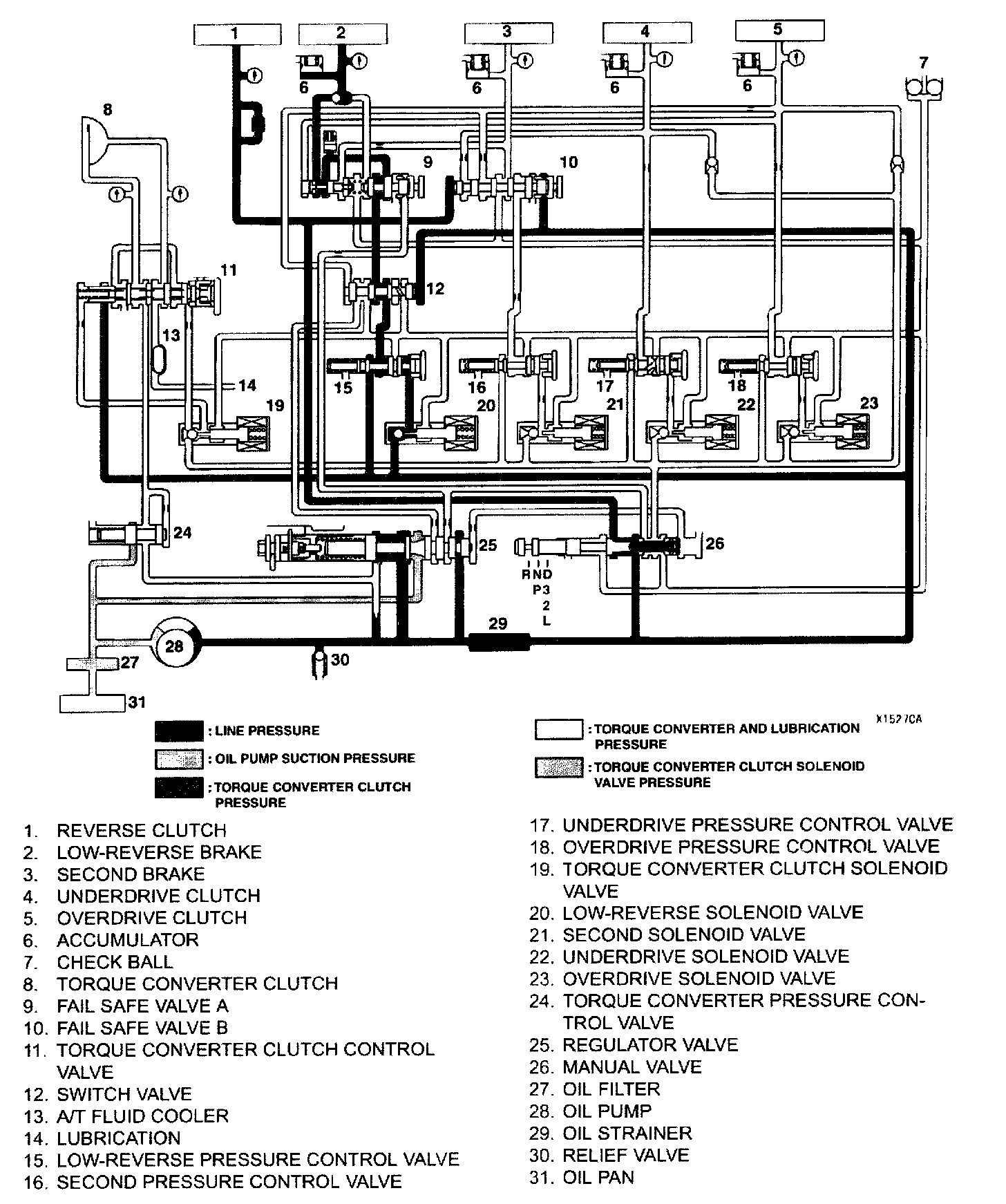

<4A/T> REVERSE
