Home
>>
Mitsubishi
>>
2003
>>
Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>
Parking and Neutral
Parking and Neutral

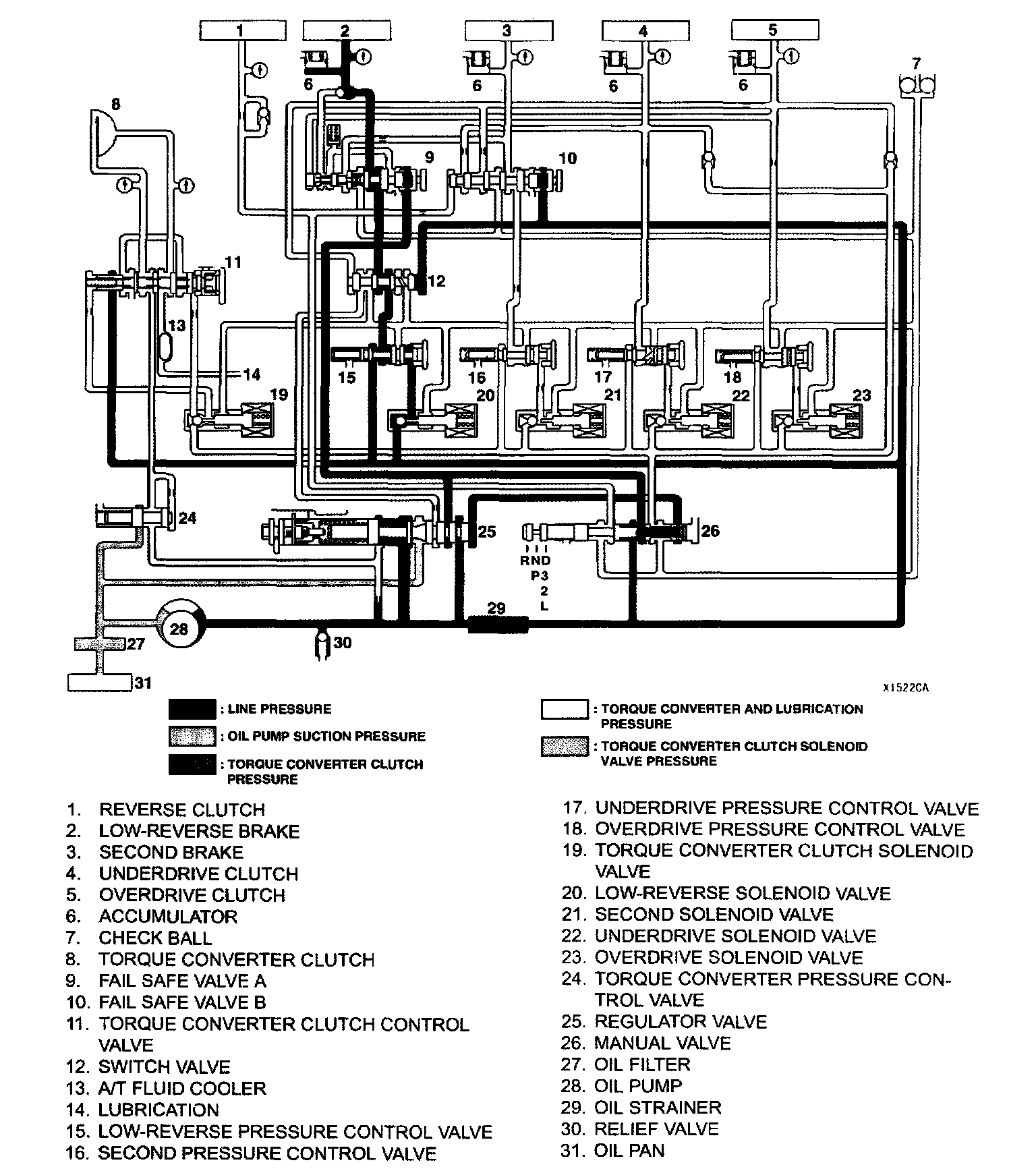

<4A/T> PARKING AND NEUTRALS
