Home >> Mitsubishi >> 2003 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine And Transaxle >> Engine With Variable Induction Control (VIC) System >> B-01 to B-28

B-01 to B-28

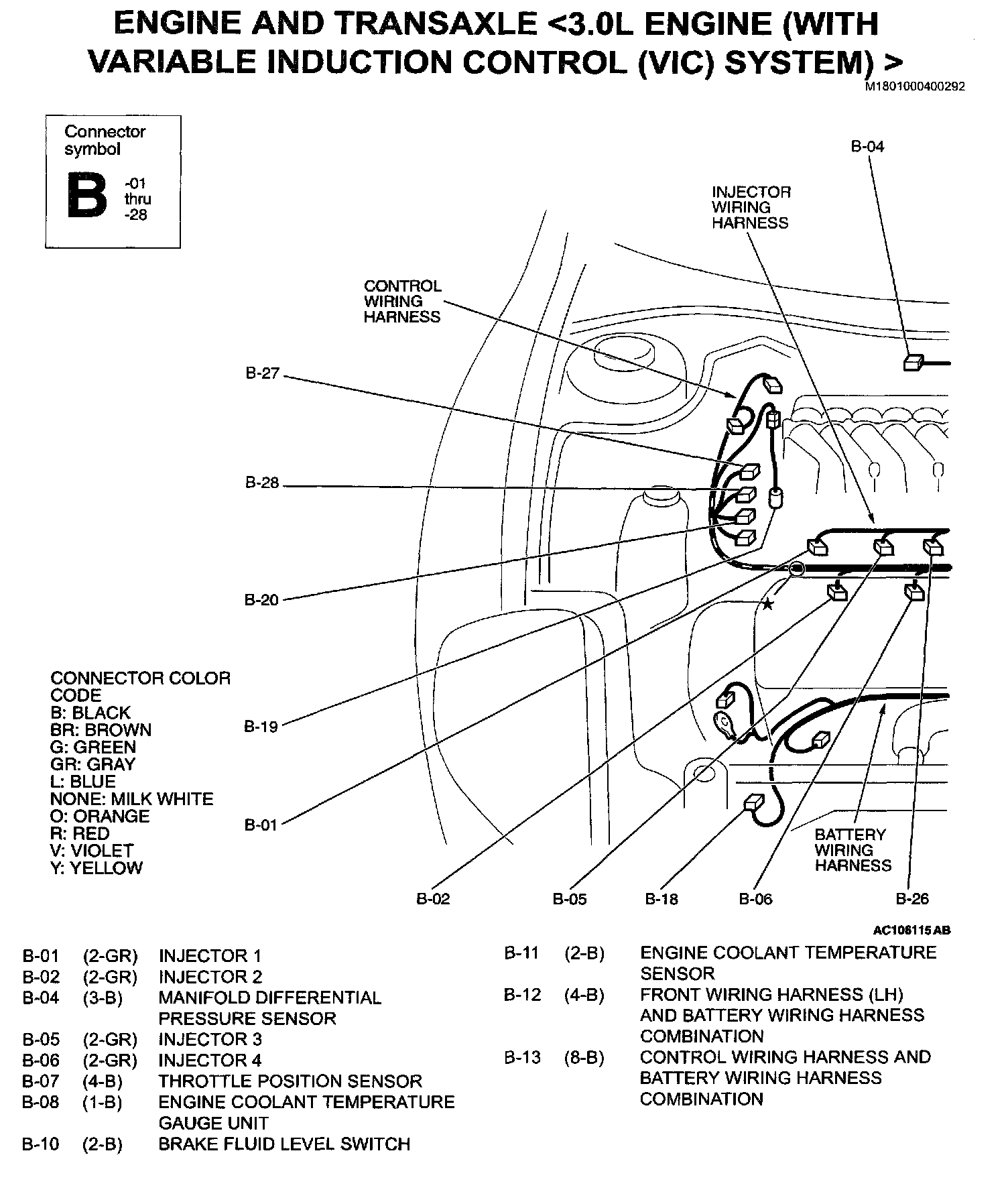

B-01 Thru B-28 (Part 1):

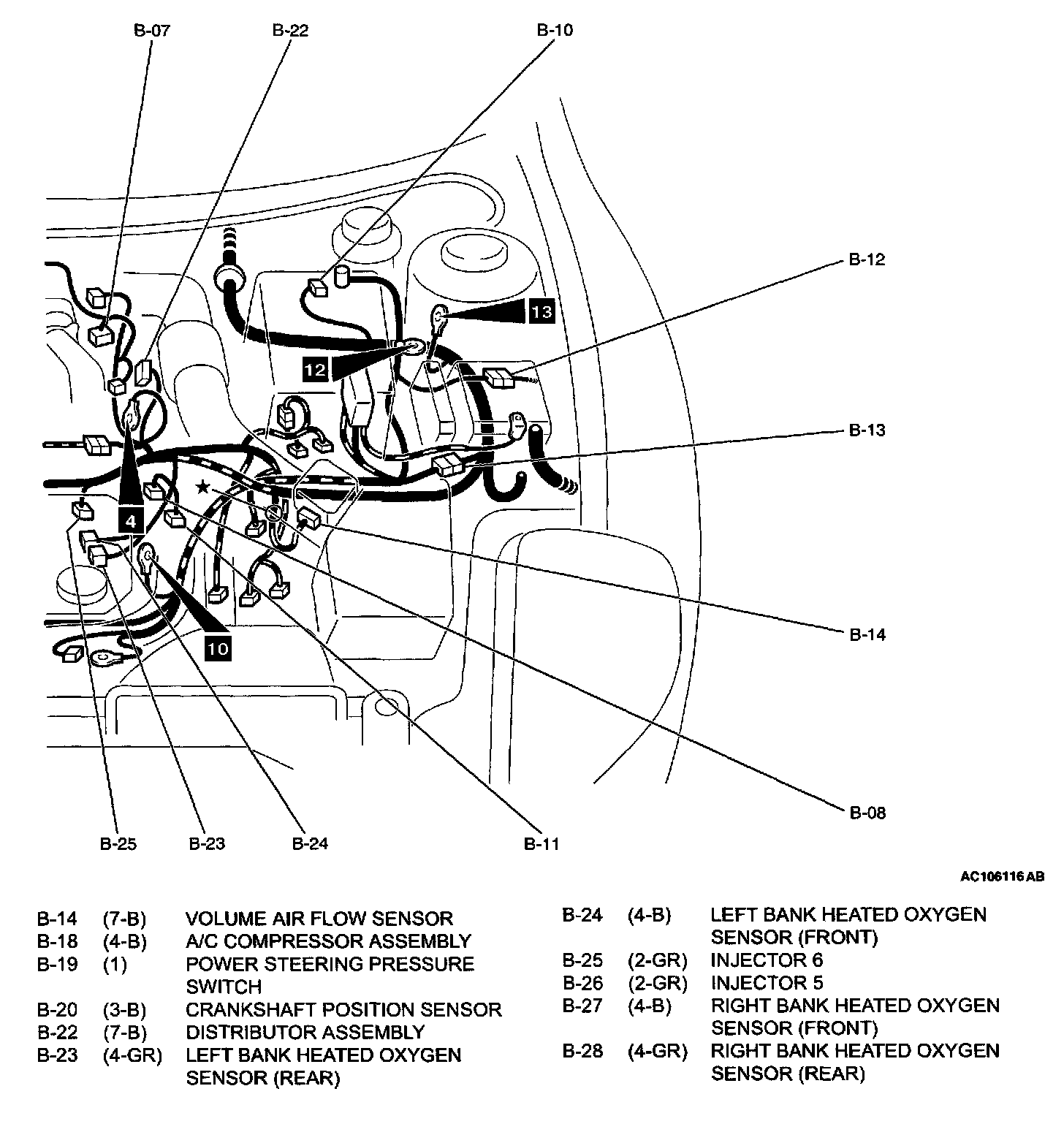

B-01 Thru B-28 (Part 2):
