Body - Sunroof Judder/Vibration: Overview

No.: TSB-03-42A-005
DATE: December, 2003
MODEL: 2000-04 Eclipse

SUBJECT:
SUNROOF JUDDER

This bulletin supercedes TSB-01-42A-005, issued June 2001, to include 2002-04 models and provide new sunroof cable assembly part numbers, which have improved nylon drive rail sliders. Revised information is indicated by arrow and triangle symbol.

PURPOSE

On some affected vehicles, the sunroof may judder or vibrate during opening/closing operation. In some cases, it may be necessary to replace the drive cable assemblies. This bulletin describes how to install the new, improved drive cable assemblies (listed in the PARTS INFORMATION section of this bulletin). Refer to MMSA Service Video # 82, CD-R 2000-42A-002 for these procedures, except be sure to clean the sunroof rails and apply sunroof grease before installing the drive cables.

AFFECTED VEHICLES

--> 2000-2004 Eclipse models equipped with sunroof

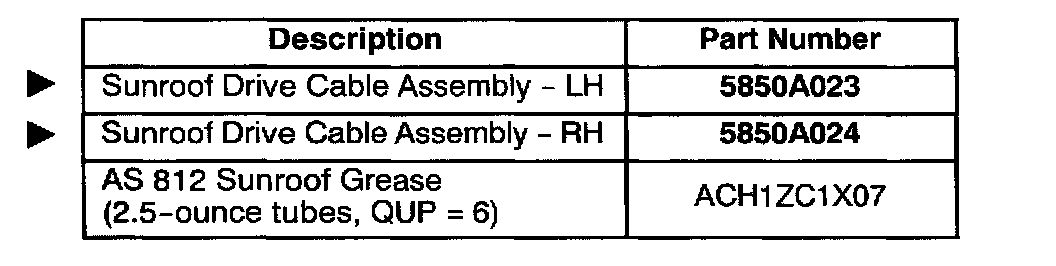

PARTS INFORMATION

Use the new, improved Genuine Mitsubishi Parts listed.

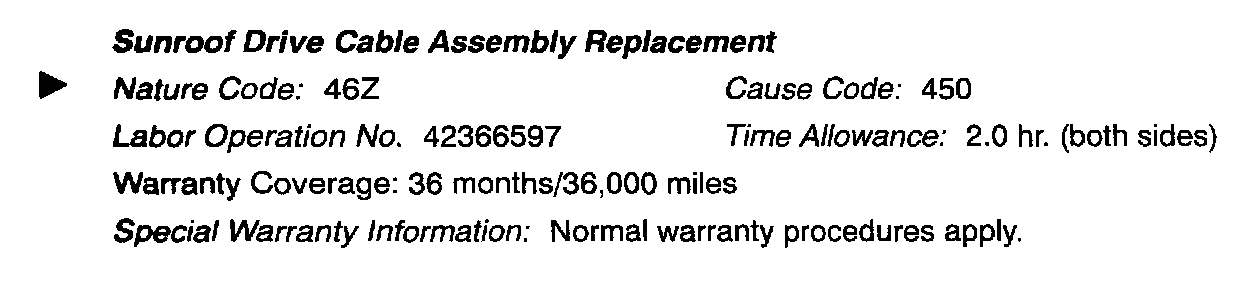

WARRANTY INFORMATION
