Standard Hydraulic Pressure Test

STANDARD HYDRAULIC PRESSURE TEST

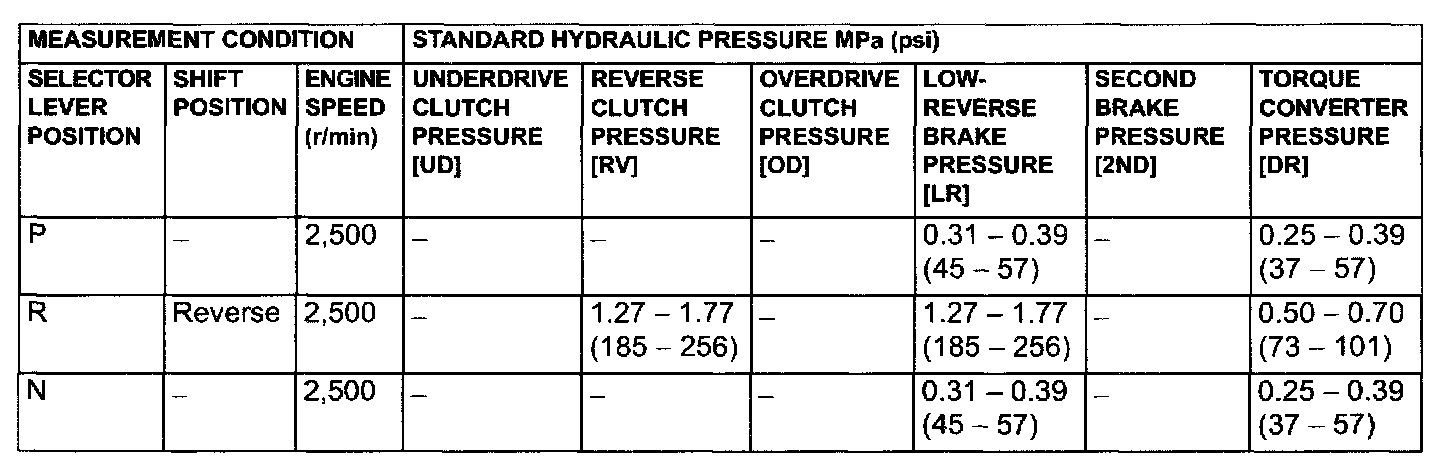

Part 1 Of 2:

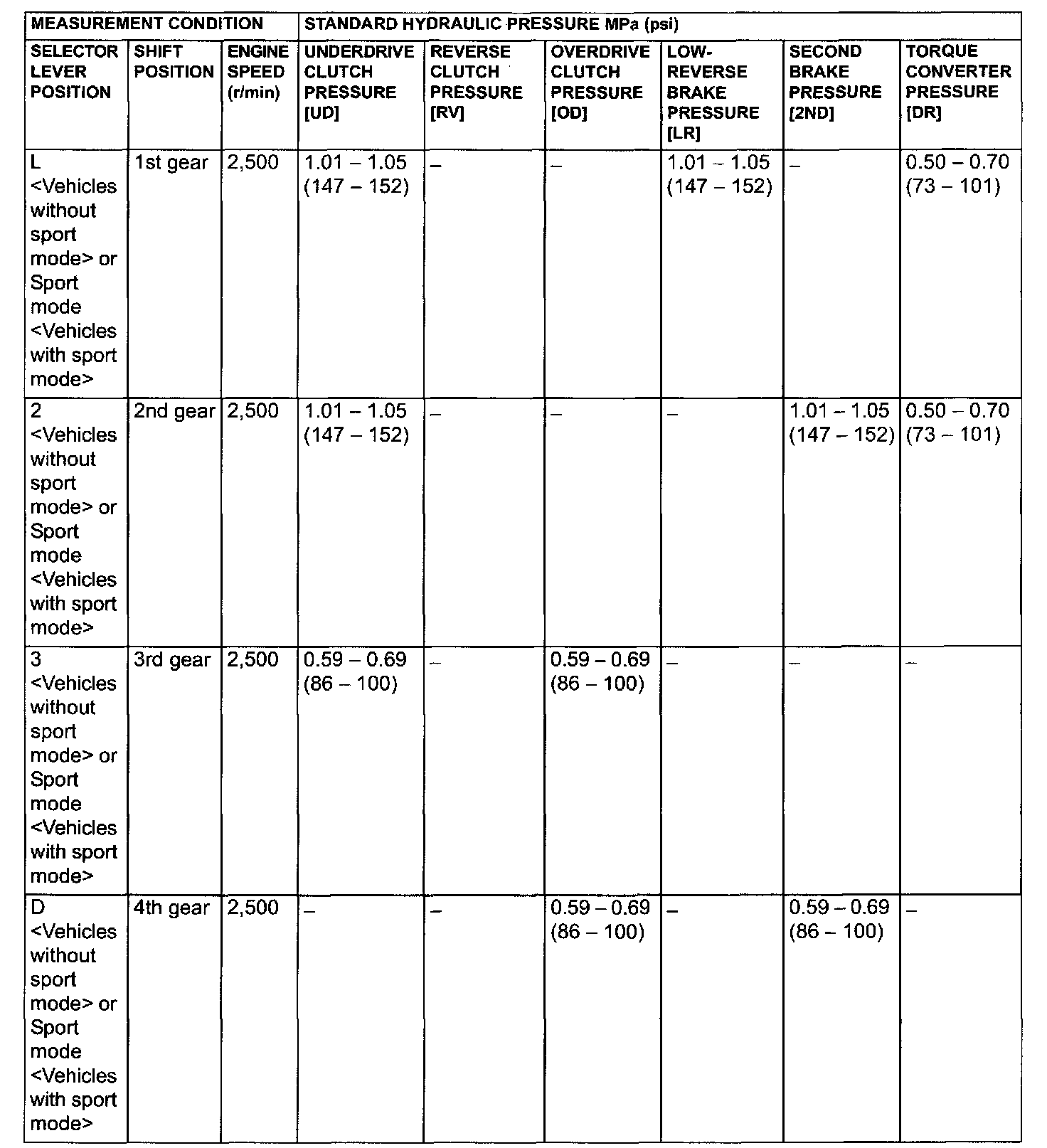

Part 2 Of 2:





NOTE: If the torque converter pressure is measured, the engine speed should be 1,500 r/minute or less.
