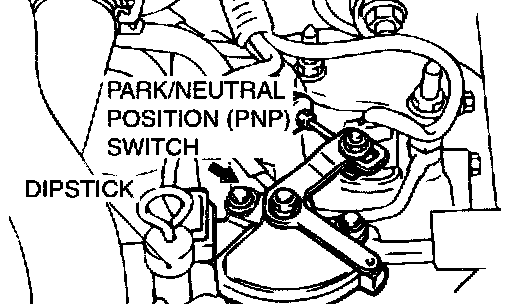

Park/Neutral Position Switch Continuity Check

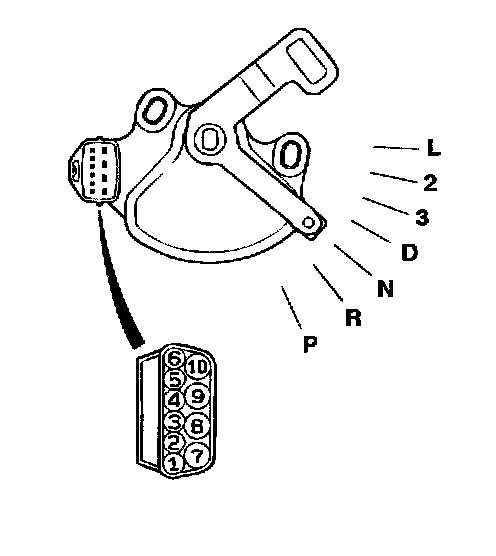

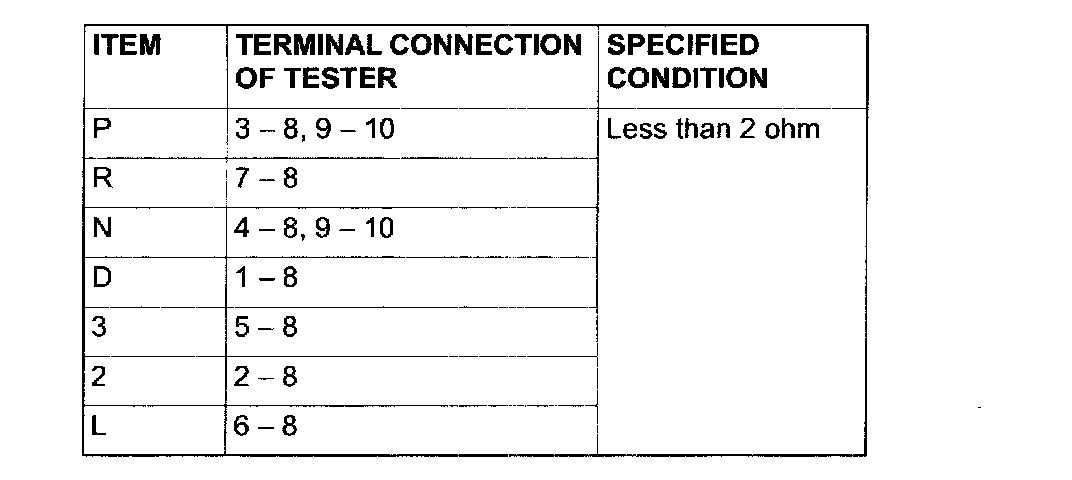

PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK











NOTE: For vehicles with sport mode, four positions (P, R, N, D) are used.
