A/T Fluid Temperature Sensor Check

A/T FLUID TEMPERATURE SENSOR CONTINUITY CHECK
1. Remove the A/T fluid temperature sensor.

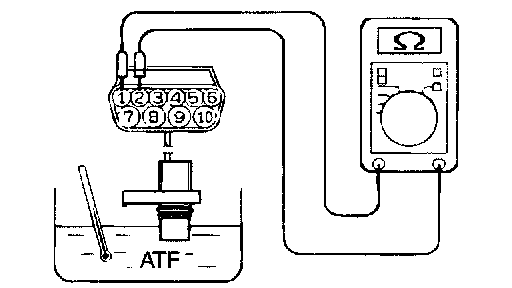

2. Measure the resistance between terminals 1 and 2 of the A/T fluid temperature sensor connector.

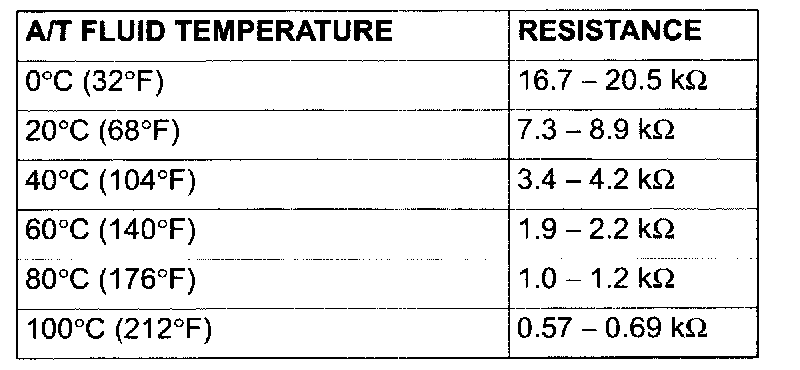

Standard value

3. If the A/T fluid temperature sensor resistance is not consistent with the fluid temperature, replace A/T fluid temperature sensor.

NOTE: The N range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or higher, and then stops flashing when the temperature drops below approximately 115°C (239°F).
