Parking Brake Warning Switch: Testing and Inspection
PARKING BRAKE SWITCH CHECK1. Remove the floor console.

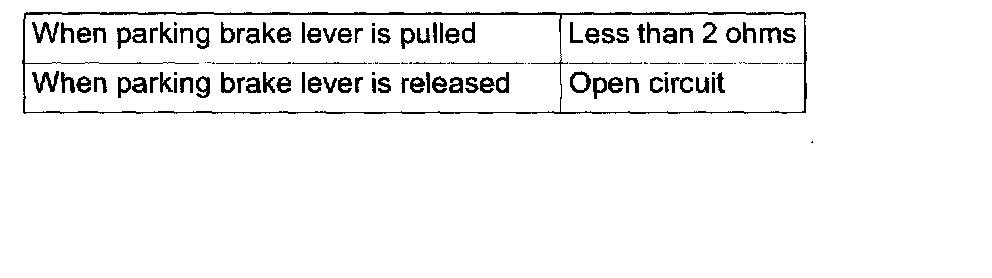

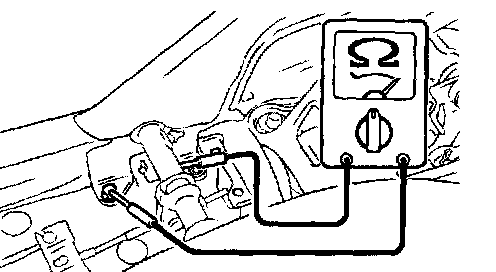

2. Check for continuity between the parking brake switch terminal and the switch mounting bolt according to the table.
1. Remove the floor console.
2. Check for continuity between the parking brake switch terminal and the switch mounting bolt according to the table.
