Dimmer Switch: Description and Operation

HEADLIGHT AND TAILLIGHT

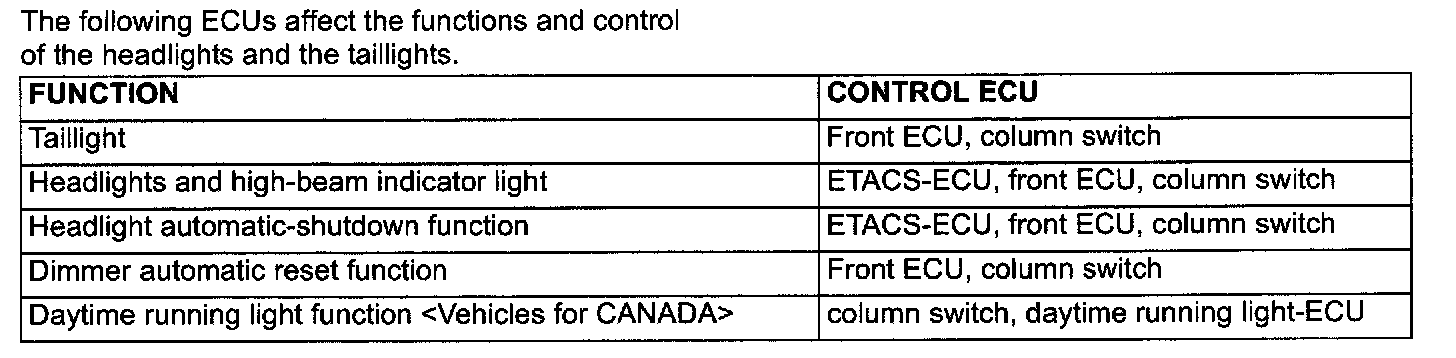

GENERAL DESCRIPTION CONCERNING THE HEADLIGHT AND TAILLIGHT

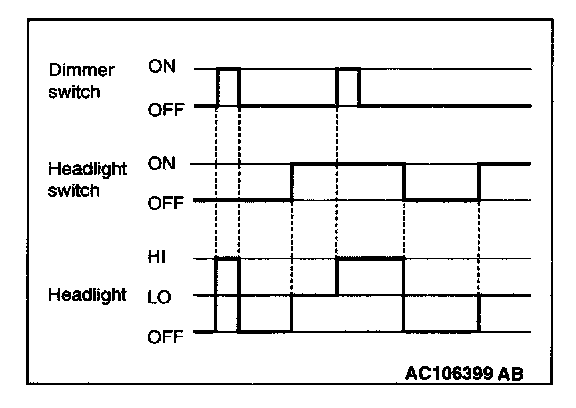

DIMMER AUTOMATIC RESET FUNCTION
If the headlight switch is turned off while the high-beam headlights are on, the dimmer switch will be reset. Because of this, the headlights will illuminate at low beam when they are turned on at next opportunity. The dimmer switch will be also reset if the dimmer switch is turned on unintentionally while the passing switch is operated.
