Remote Switch: Service and Repair

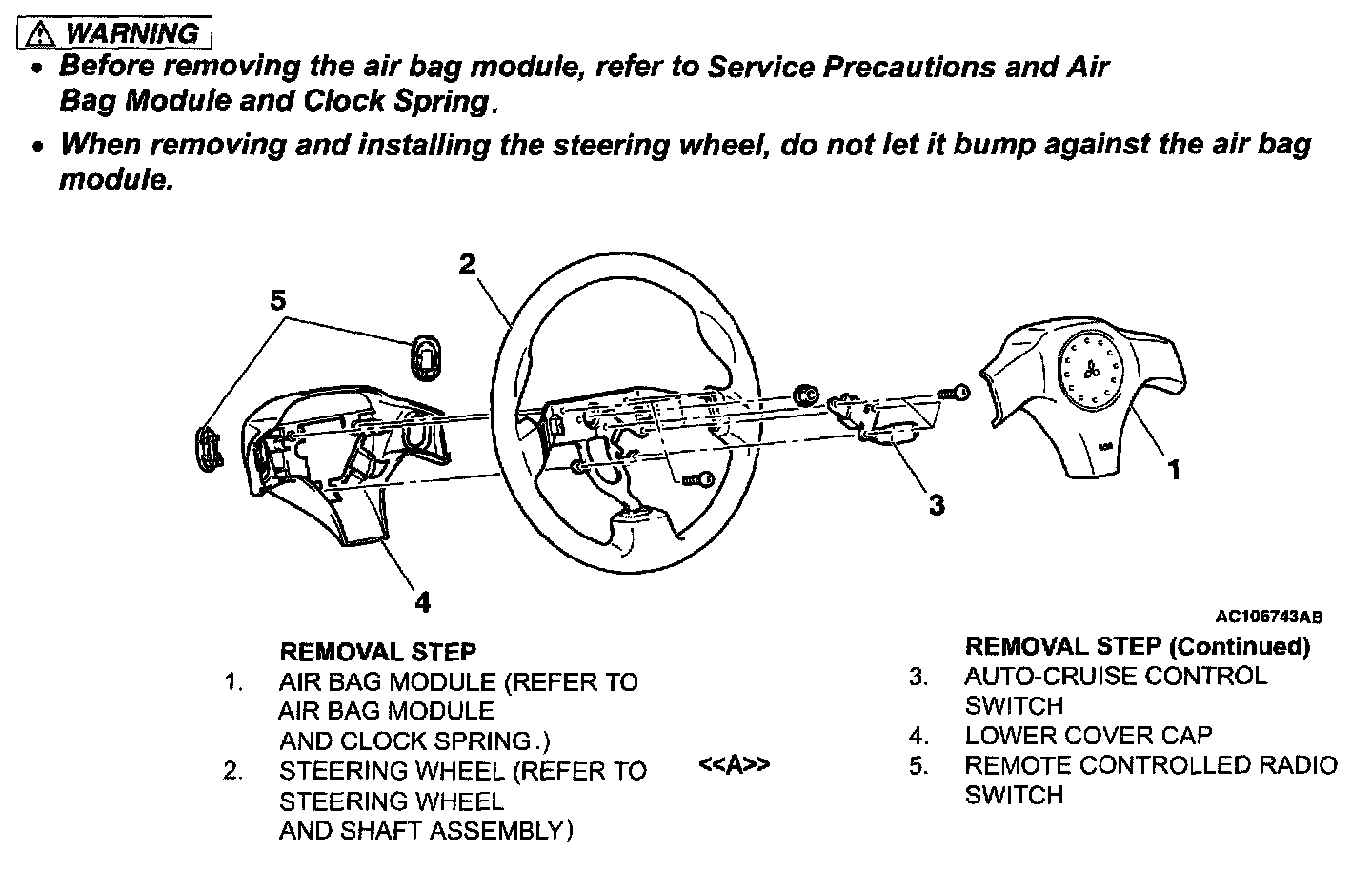

Remote Controlled Radio Switch:






REMOVAL SERVICE POINT

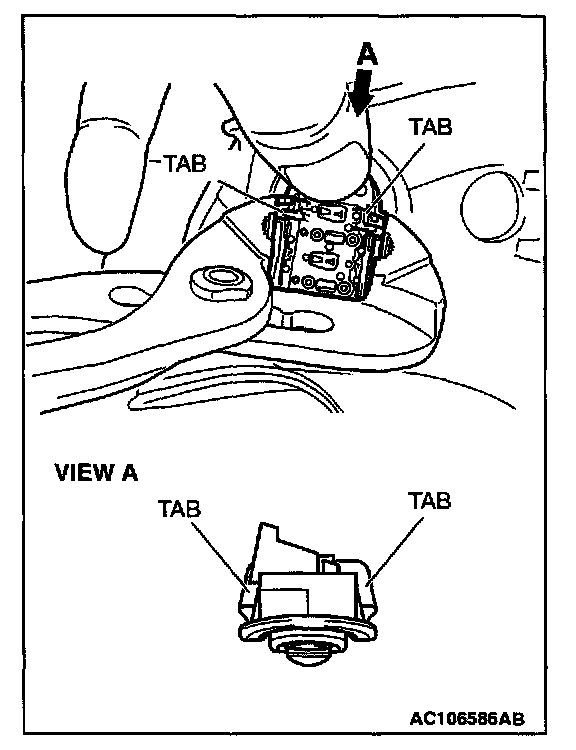

<> REMOTE CONTROLLED RADIO SWITCH REMOVAL
Use a tool to hold the tabs on the remote controlled radio switch, and push out the switch by your finger.
