Ignition Switch Continuity Check

Ignition Switch Continuity Check:

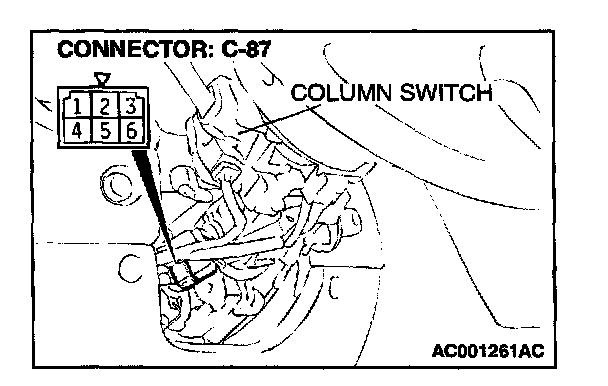

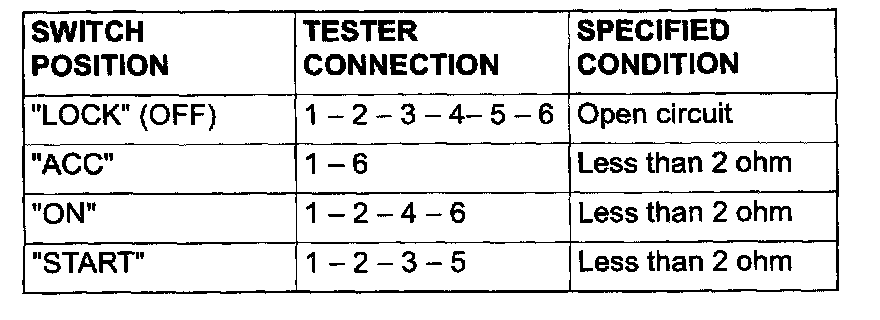

Disconnect ignition switch connector C-87 without removing the ignition switch and steering lock cylinder. Then check the continuity.
