Removal and Installation

REMOVAL AND INSTALLATION

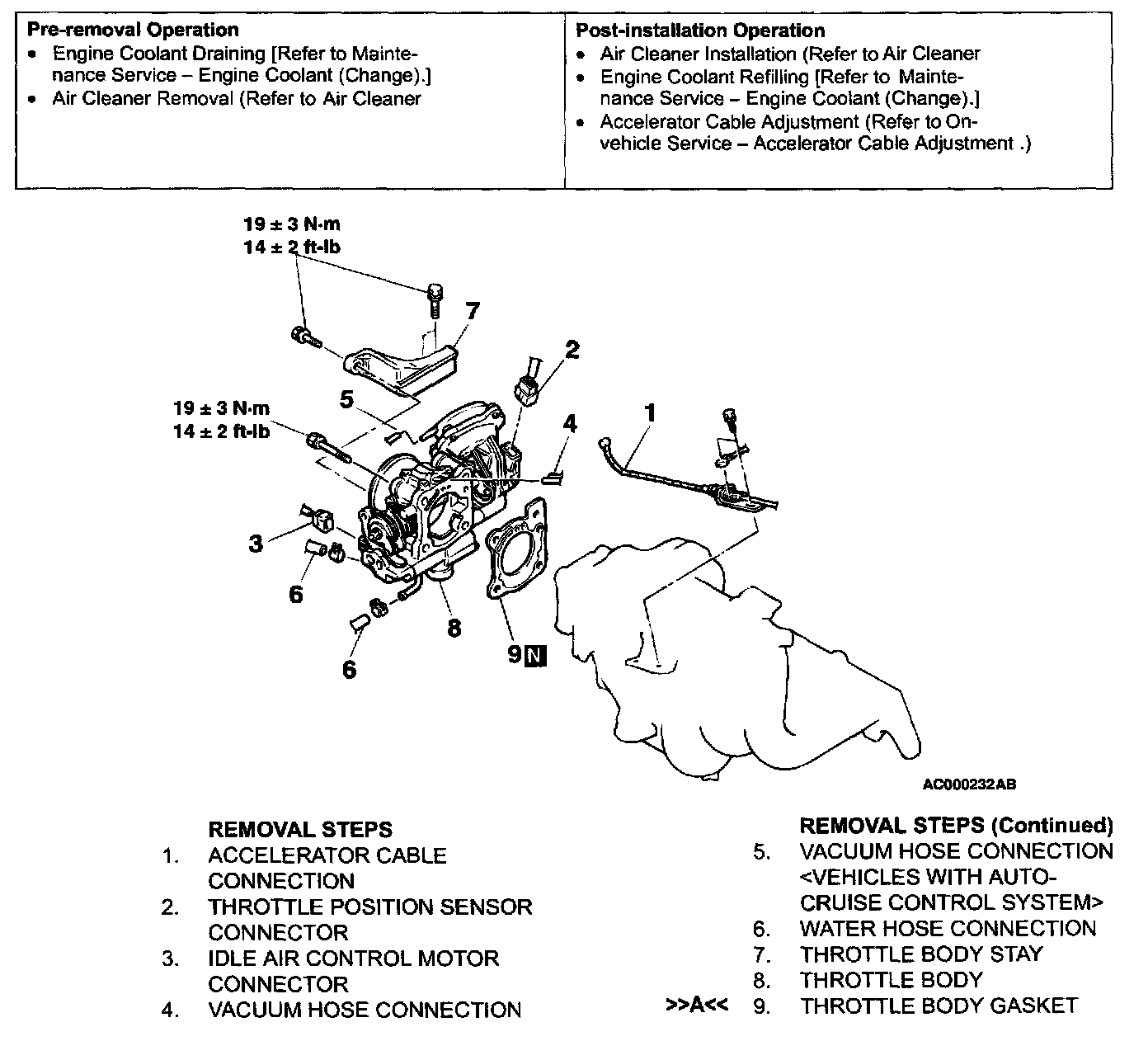

Throttle Body Assembly:






INSTALLATION SERVICE POINT

>>A<

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

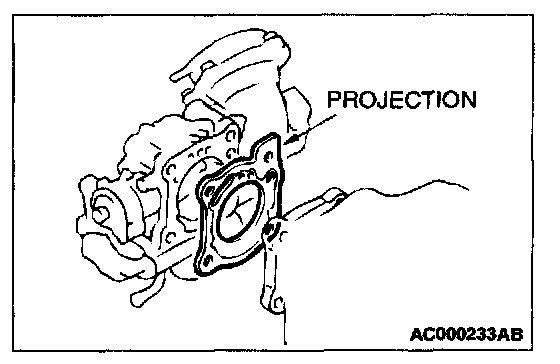

Install the throttle body gasket as shown in the illustration.
