Data List Reference Table

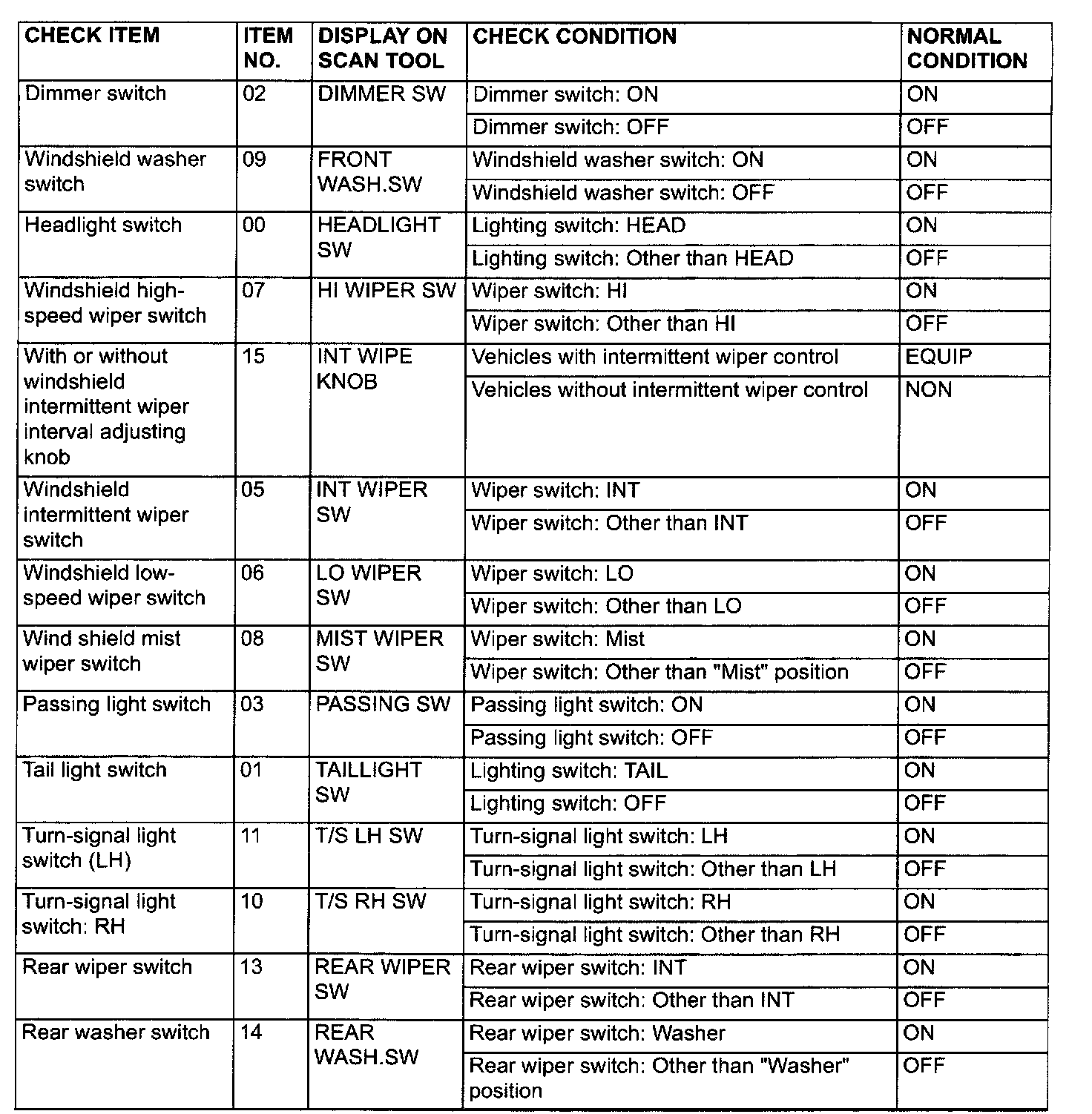

- COLUMN ECU (column switch)

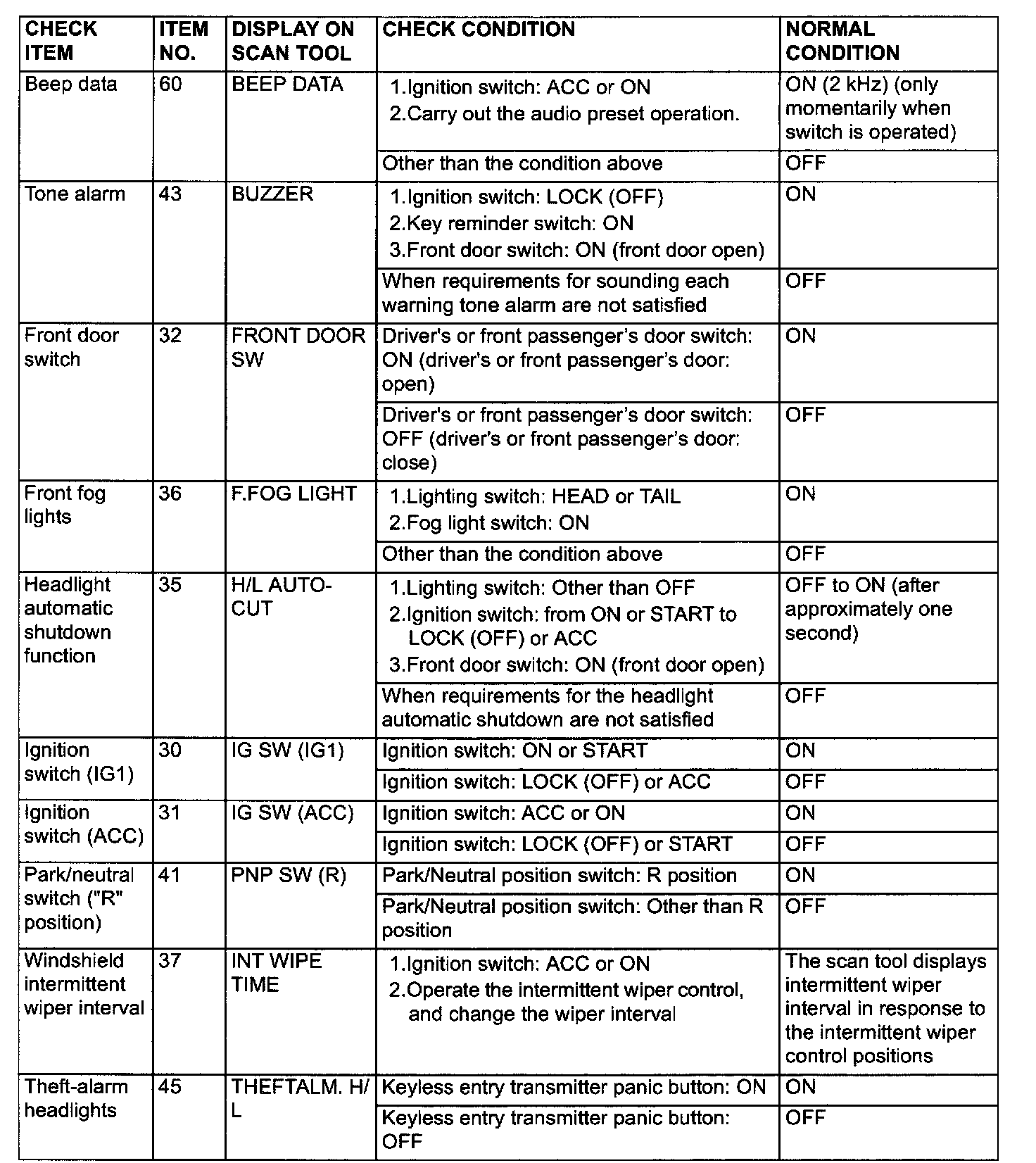

- ETACS ECU

NOTE: For item number 43, the scan tool also displays "ON" when the light reminder tone alarm or the seat belt theft-alarm function is triggered.




- FRONT ECU

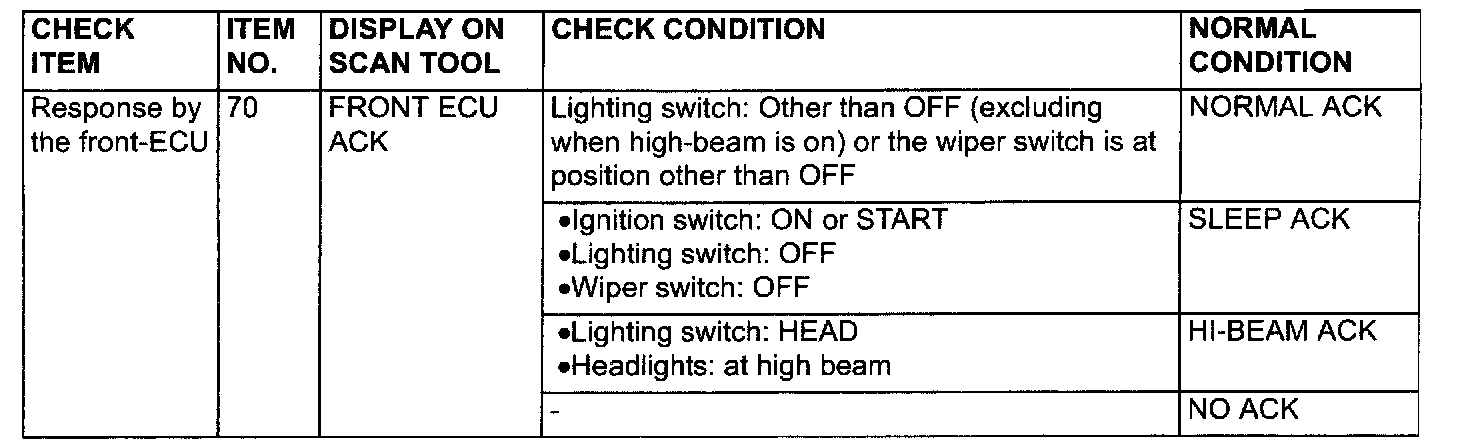

NOTE: For item number 70, the scan tool also displays "NG" under the "ECU COMM CHECK" when it displays "NO ACK" under the front-ECU CHECK.




- SUNROOF ECU (sunroof motor assembly)

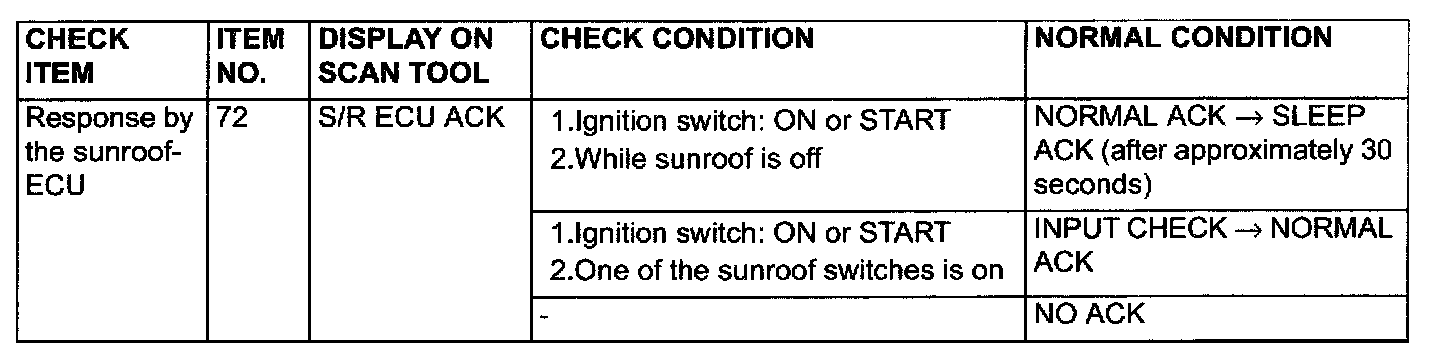

NOTE: For item number 72, the scan tool also displays "NG" under the "ECU COMM CHECK" when it displays "No response" under the sunroof-ECU check.
