Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

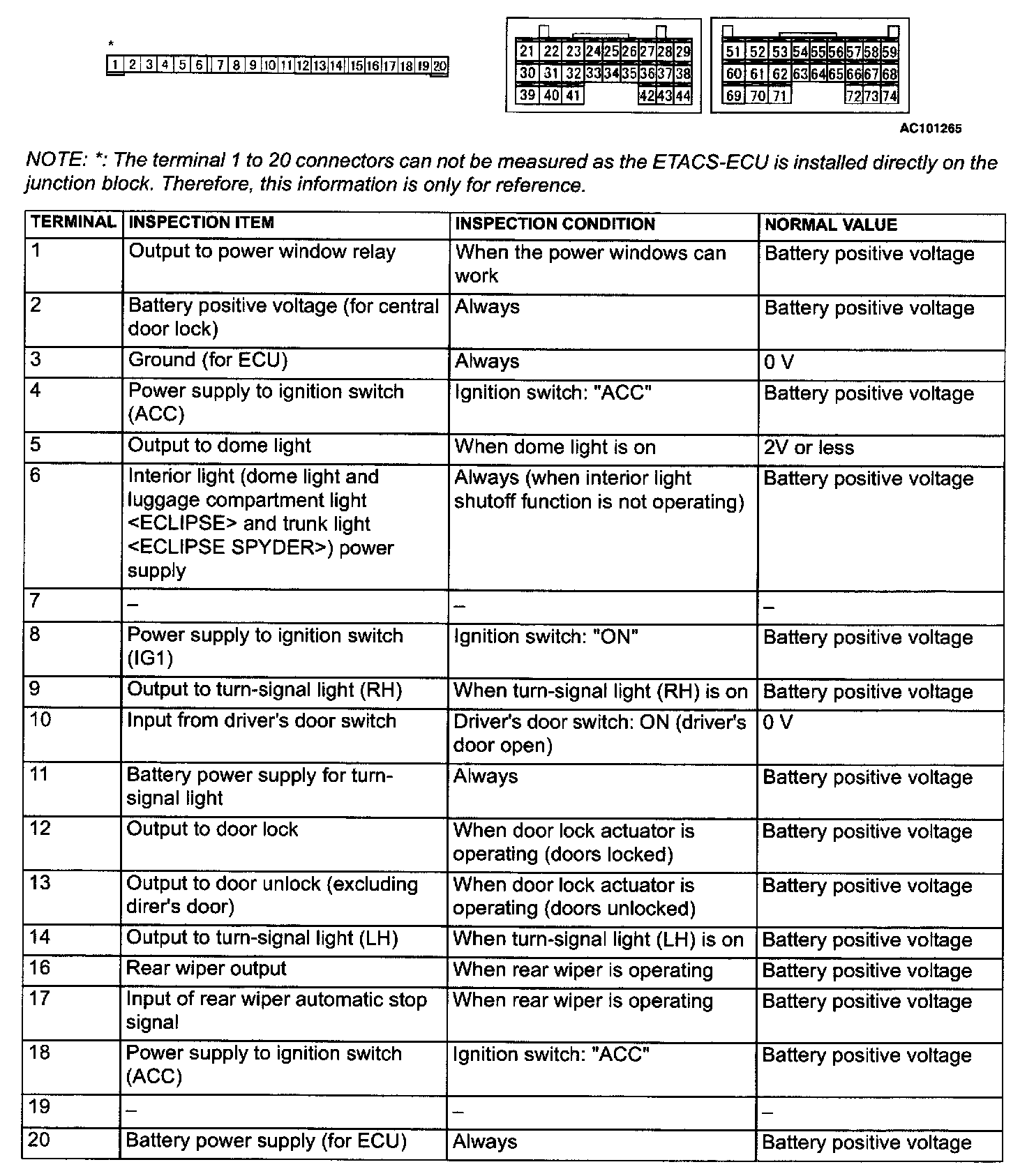

ETACS-ECU Terminal Arrangement Part 1:

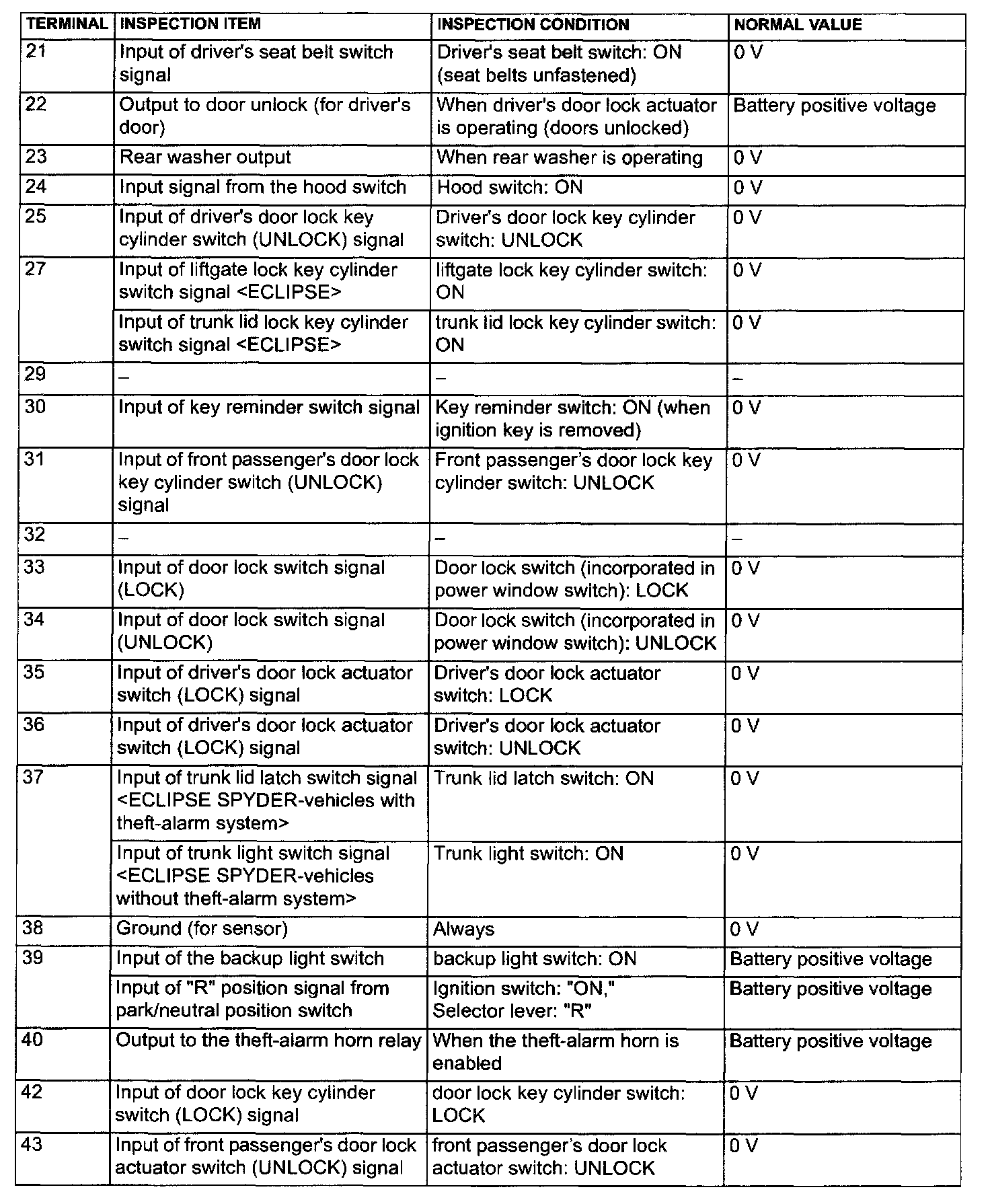

ETACS-ECU Terminal Arrangement Part 2:

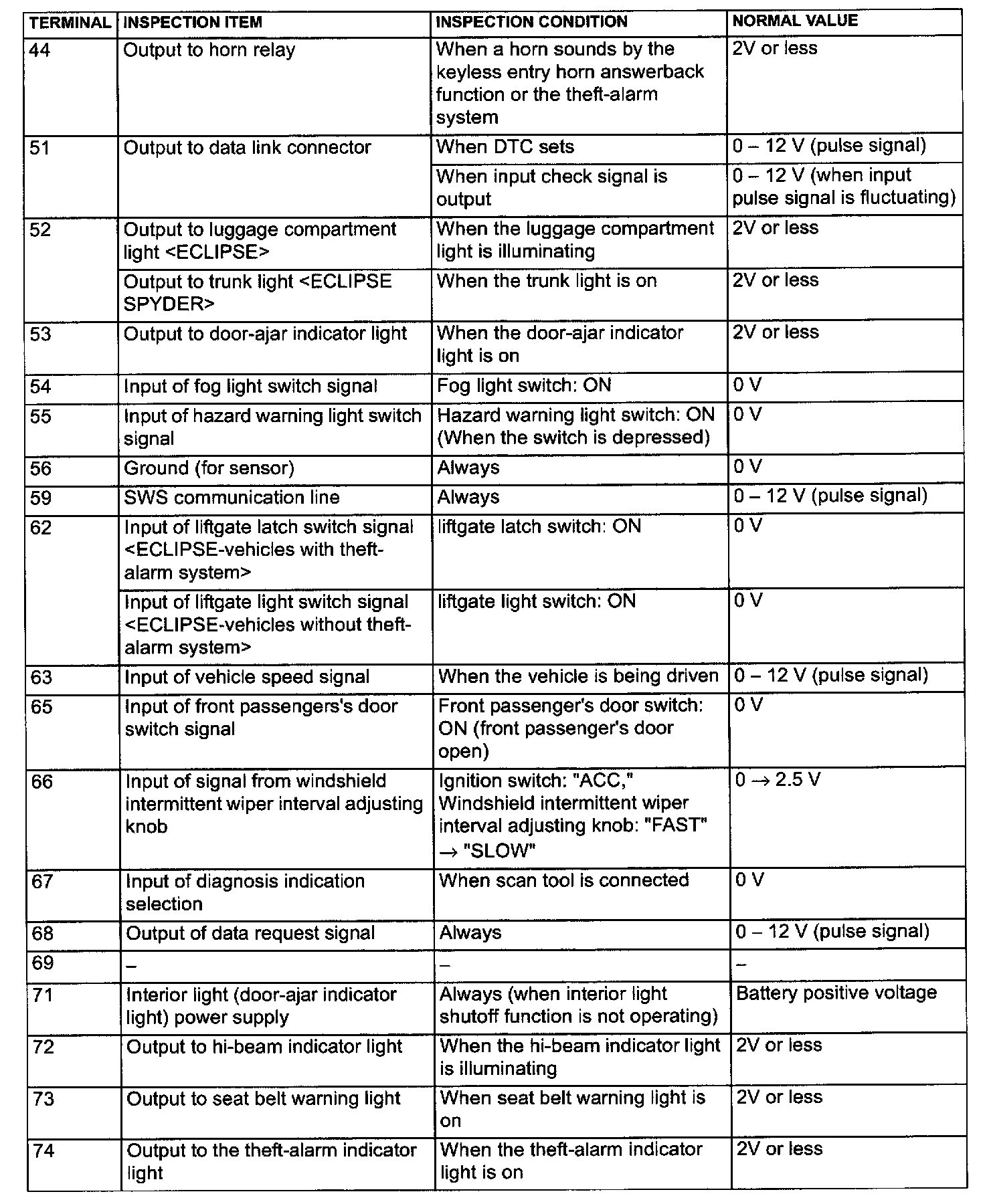

ETACS-ECU Terminal Arrangement Part 3:

1. ETACS-ECU

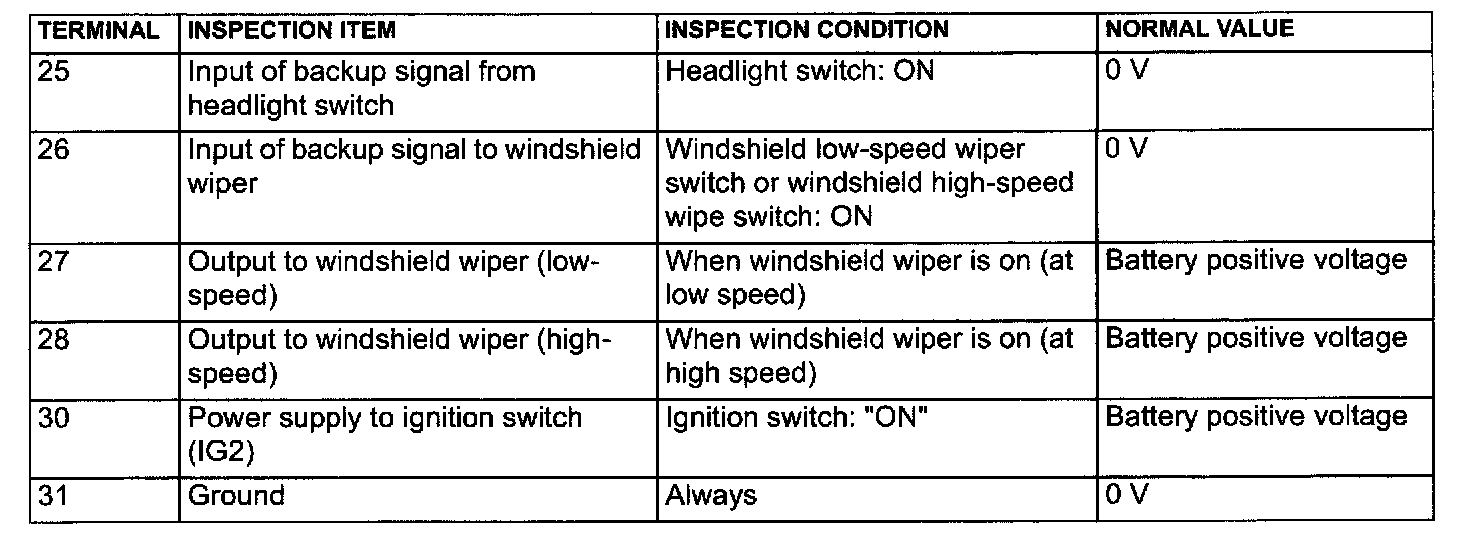

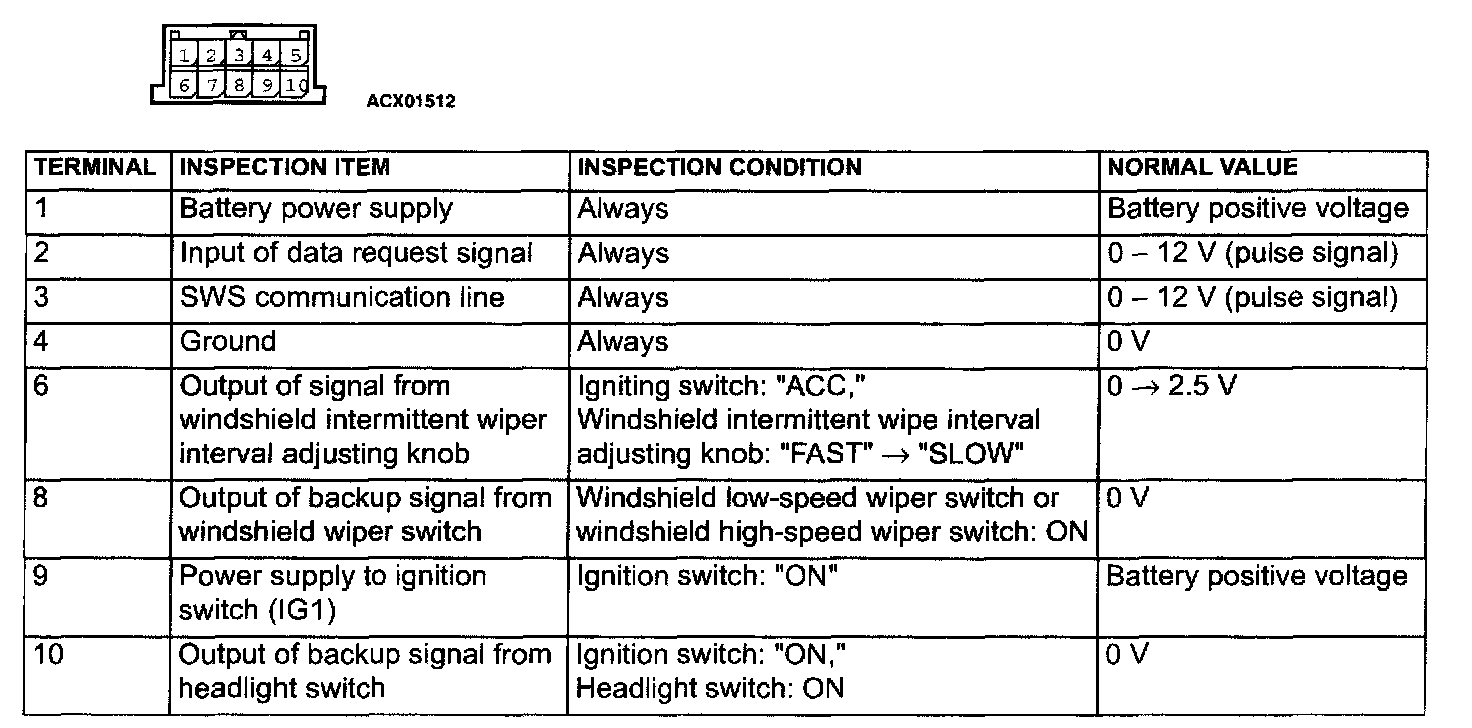

Column Switch Terminal Arrangement:

2. COLUMN SWITCH

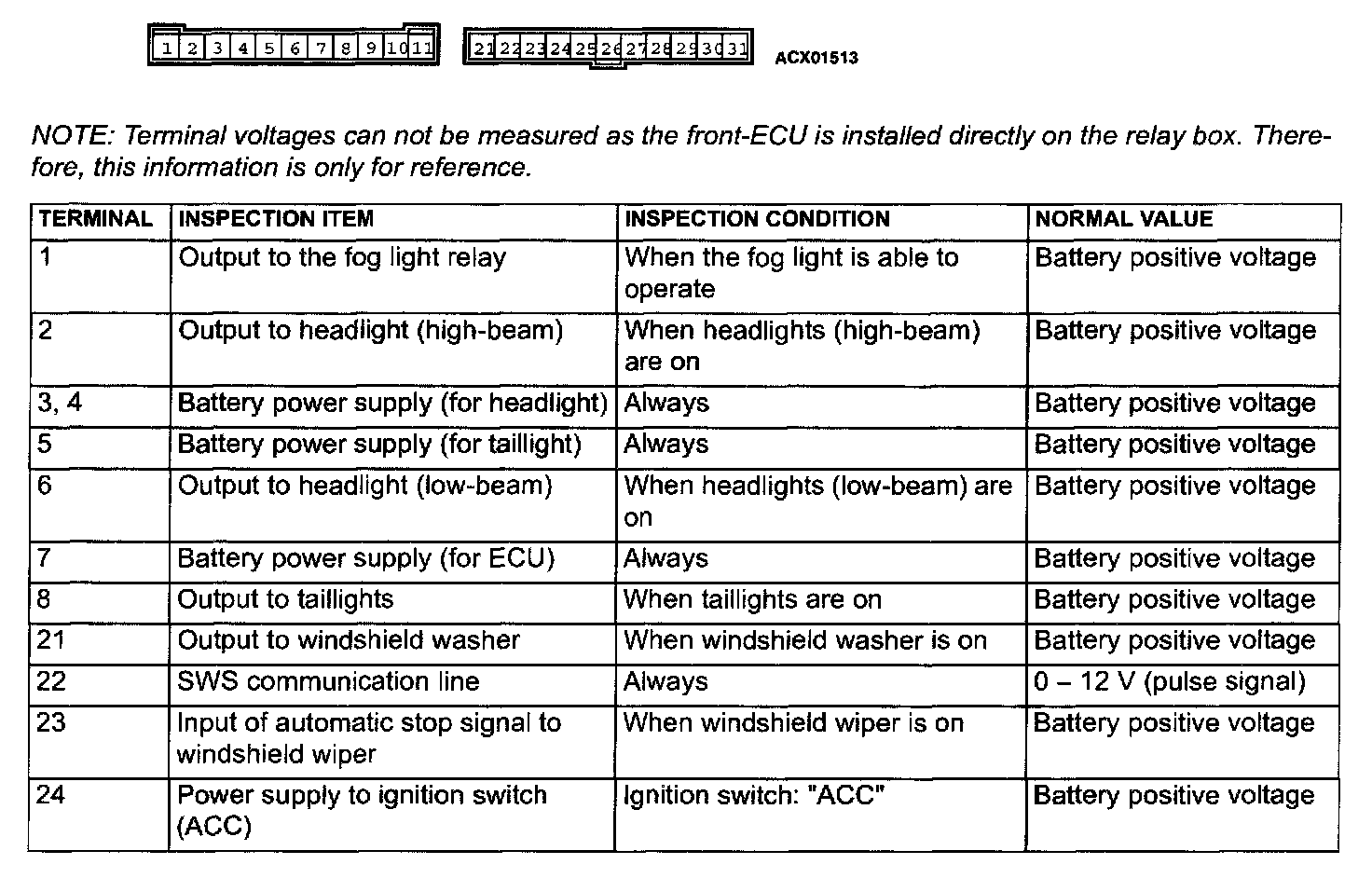

Front-ECU Terminal Arrangement Part 1:

Front-ECU Terminal Arrangement Part 2:

3. FRONT-ECU

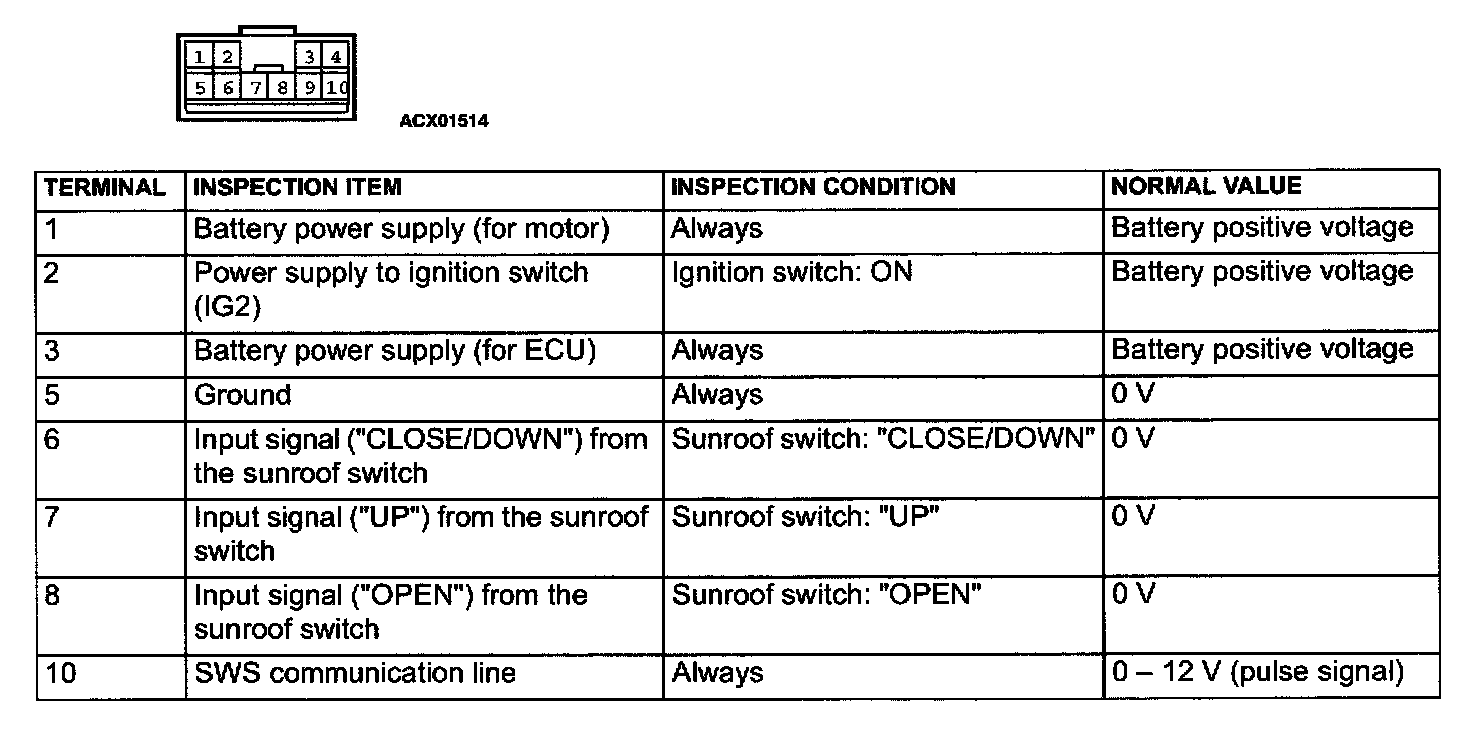

Sunroof Motor Assembly Terminal Arrangement:

4. SUNROOF MOTOR ASSEMBLY
